SyStem Operating infOrmatiOnSyStem Operating infOrmatiOn
4327 • X5 04/2015 85

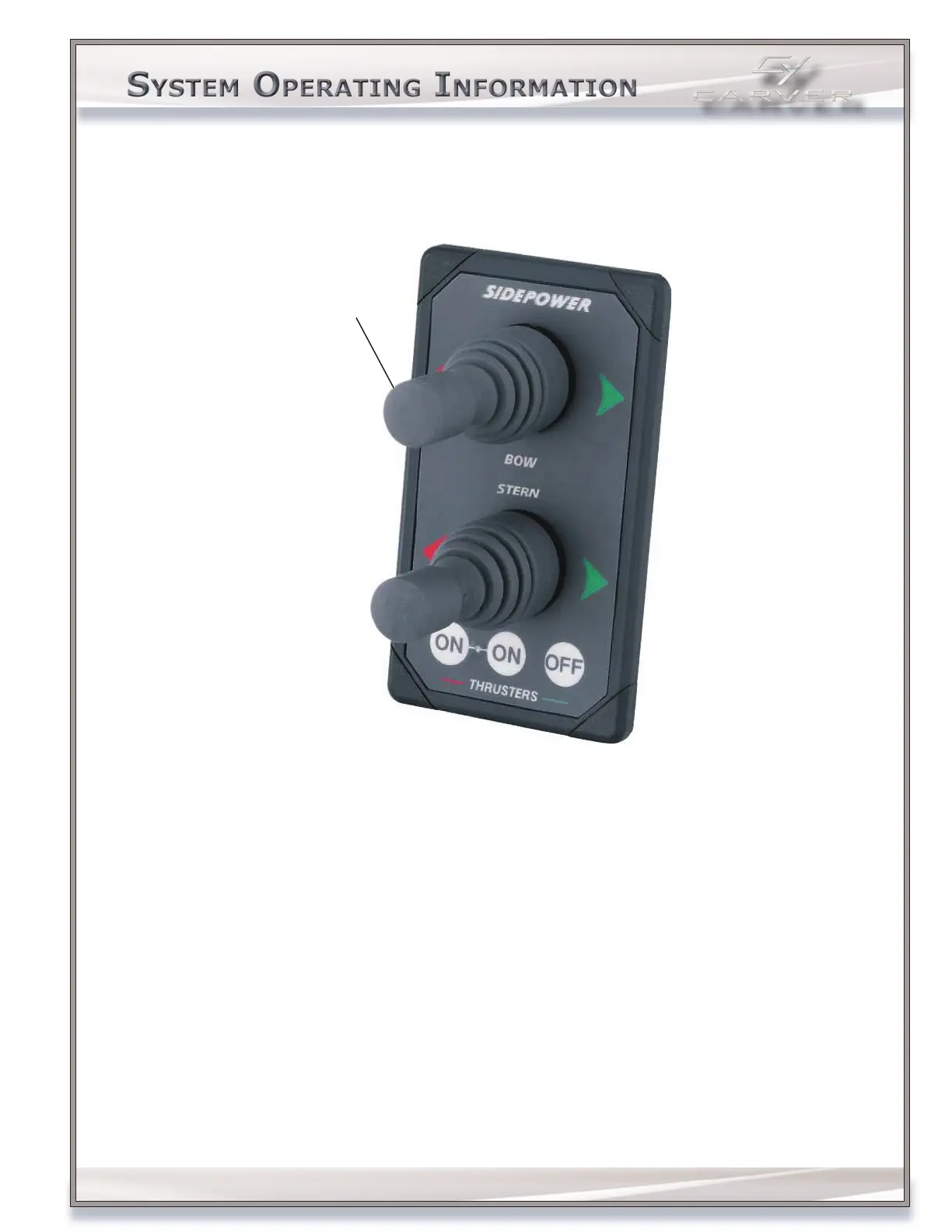

2. The Bow and Stern Thruster provides thrust to PORT or STARBOARD of the bow as well as PORT or STARBOARD
thrust of the stern. They are controlled by a dual joystick at the helm. FORE and AFT movement of the vessel is
accomplished by use of the engine controls. Press the two ON/ON buttons simultaneously to activate the system. A
“system active” light will illuminate. The system is equipped with an automatic timeout shut-off, so after a period of
nonuse it will shut off by itself. There is also an anytime shutoff button on the control.
Bow and
Stern
Thruster
