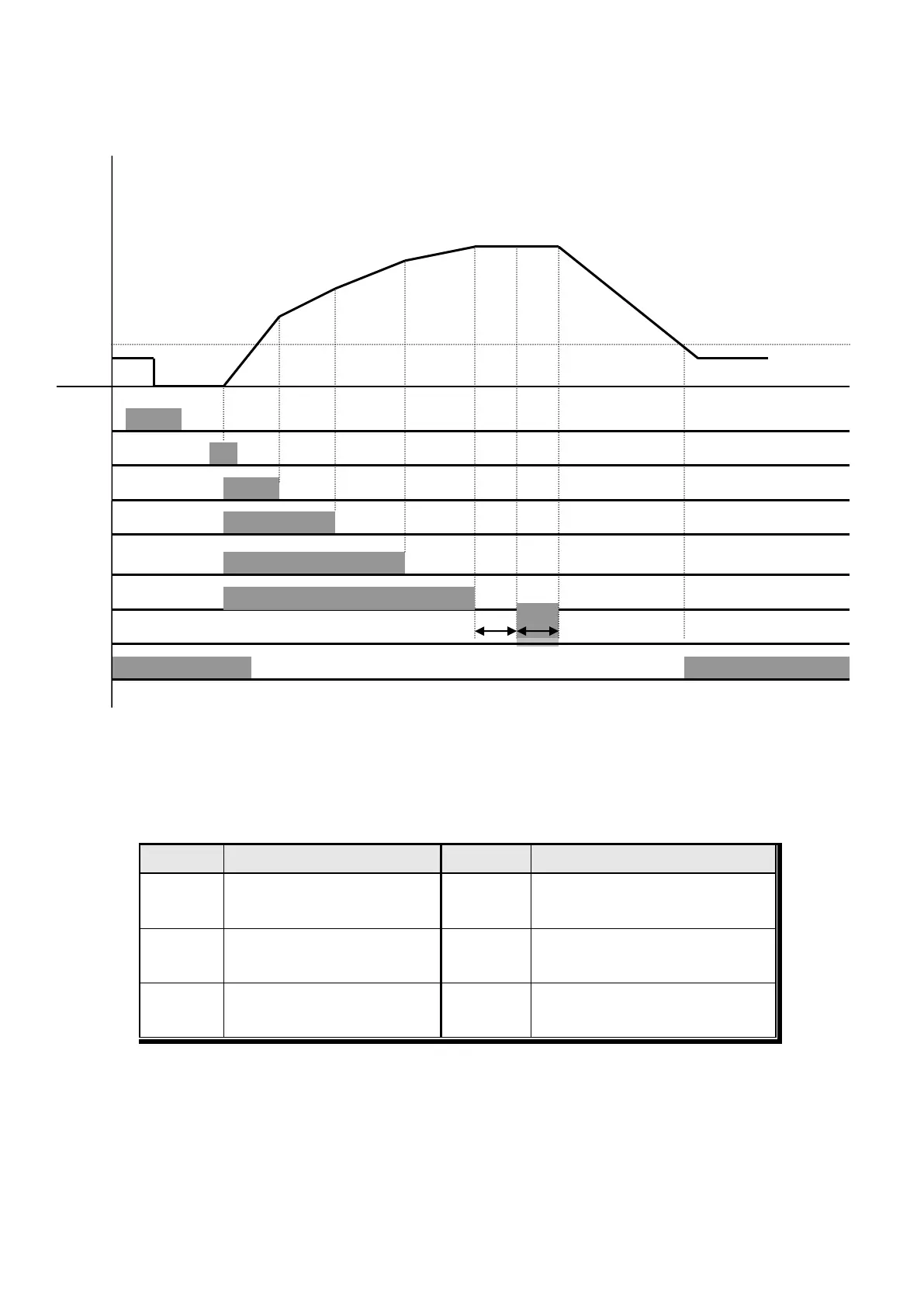

◆ Weighing Mode 2. Packer Mode (F21-02 setting)
1. Set value setting
Sp1(Bulk), Sp2(Bulk + Drib), Sp3(Bulk + Drib + Fall), Sp4(FINAL)
2. Finish relay output delay time(t1) setting : F-Function 22
3. Finish relay output “ON” time(t2) setting : F-Function 23
4. Relay Output
Relay
Contents
Relay
Contents
SP 1
RUN input : ON
Current weight=SP1(OFF)
SP4
RUN input : ON
Current weight=SP4(OFF)
SP 2
RUN input : ON
Current weight=SP2(OFF)
FINISH
After “t1” time,
“On” during “t2” time
SP3
RUN input : ON
Current weight=SP3(OFF)
NEAR
ZERO
Within “EMPTY” range (ON)
Sp1
t1
Weight
Near Zero
TARE(IN)
SP1
SP2
SP3
FINISH
Near Zero
Sp2
Sp3
Sp4
t2
SP4
RUN
Output 6
Output 1
Output 2
Output 3
Output 4
Output 5
