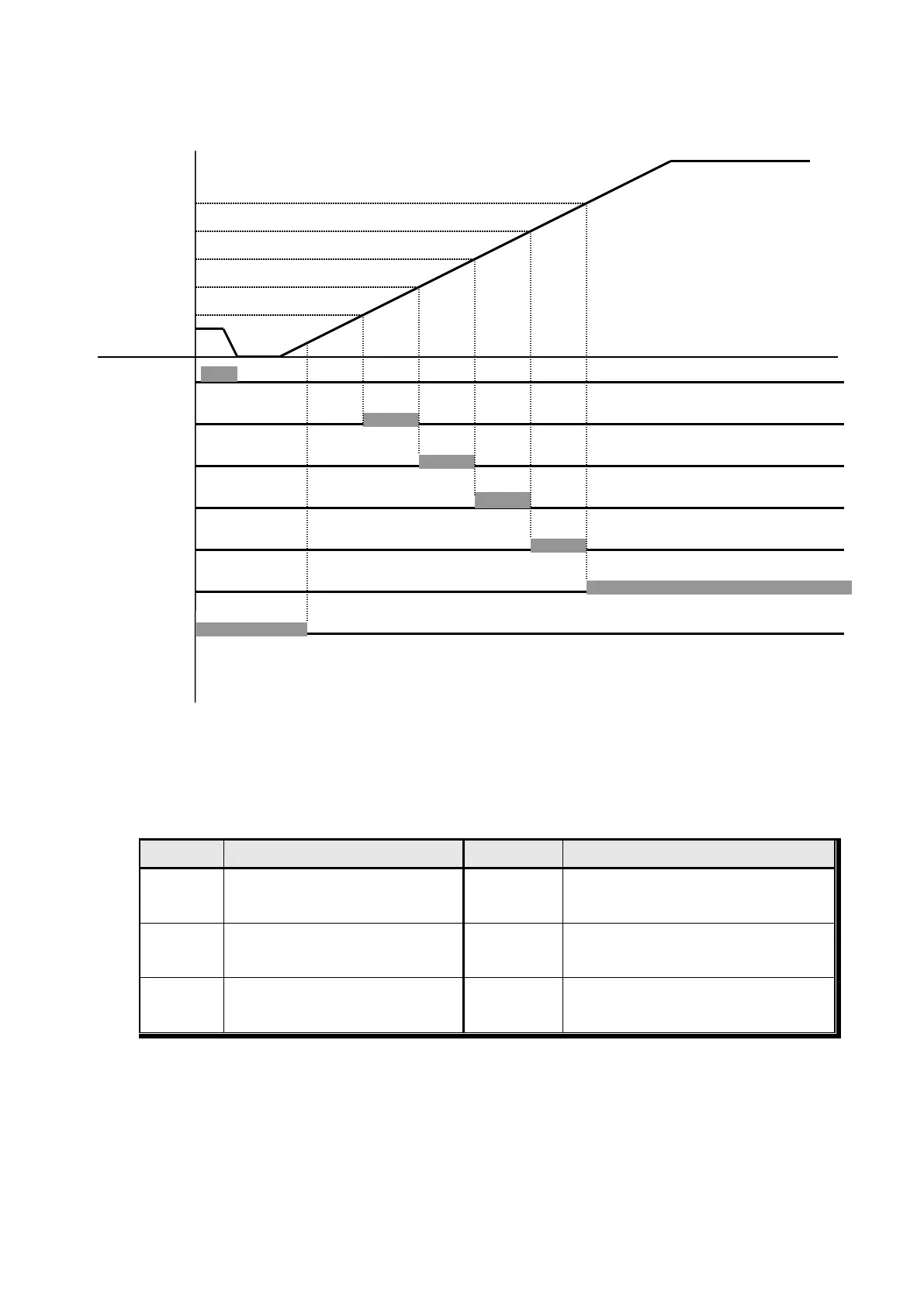

◆ Weighing Mode 4. Packer Mode (F21-04 setting) - Checker mode 2.
1. Set value setting
Sp1(Acceptable Range), Sp2 (Acceptable Range), Sp3(Acceptable Range), Sp4(Acceptable
Range)
2. Each relay will be “ON” within its own acceptable range after “t3”time, during “t4” time.
3. Relay Output
Relay
Contents
Relay
Contents
SP 1
Near Zero< Steady weight≤SP1
(ON)
SP4
SP3<Steady weight≤SP4
(ON)
SP 2
SP1<Steady weight≤SP2
(ON)
OVER
SP4<Steady weight
(ON)
SP3
SP2<Steady weight≤SP3
(ON)
NEAR
ZERO
Within “EMPTY” range (ON)
Weight
Near Zero
TARE(IN)
Near Zero
Near Zero
≤
Steady weight<SP1
SP1≤Steady weight<SP2
SP2≤Steady weight<SP3
SP3≤Steady weight<SP4
SP4≤Steady weight
Sp1
Sp2
Sp3
Sp4
Output 6
Output 1
Output 2
Output 3
Output 4
Output 5
