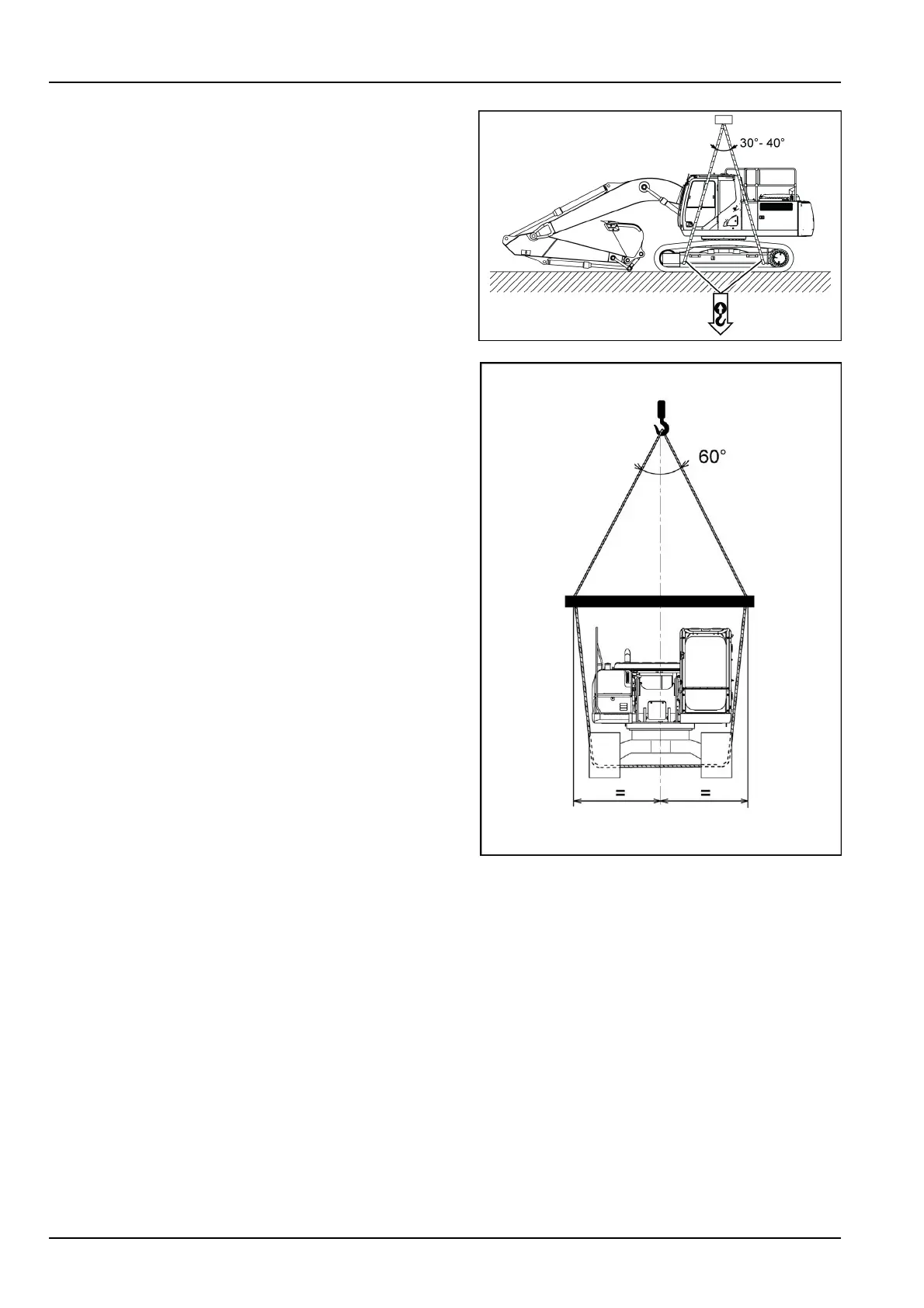

5-TRANSPORTOPERATIONS

Retracttheattachment,bucketandarmcylindersfullyex-

tendedthenplacetheattachmentontheground.Shut-

downtheengineandleavetheoperator’scompartment.

NOTICE:beforehandlingthemachine,makesurethe

slingsareinperfectconditionandthattheyarecapable

ofsupportingtheweightofthemachine.

NOTICE:itisimperativetousetheslingpointsindicated

onthemachinedecals.

NOTICE:Themachinemustbehandledveryslowlyand

horizontally.

SMIL15CEX0813AA1

3OS524-0022

5-14
