Case CX130C - Right-Hand Side Controls

3-CONTROLSANDINSTRUMENTS
Right-handsidecontrols
Right-handsidecontrols

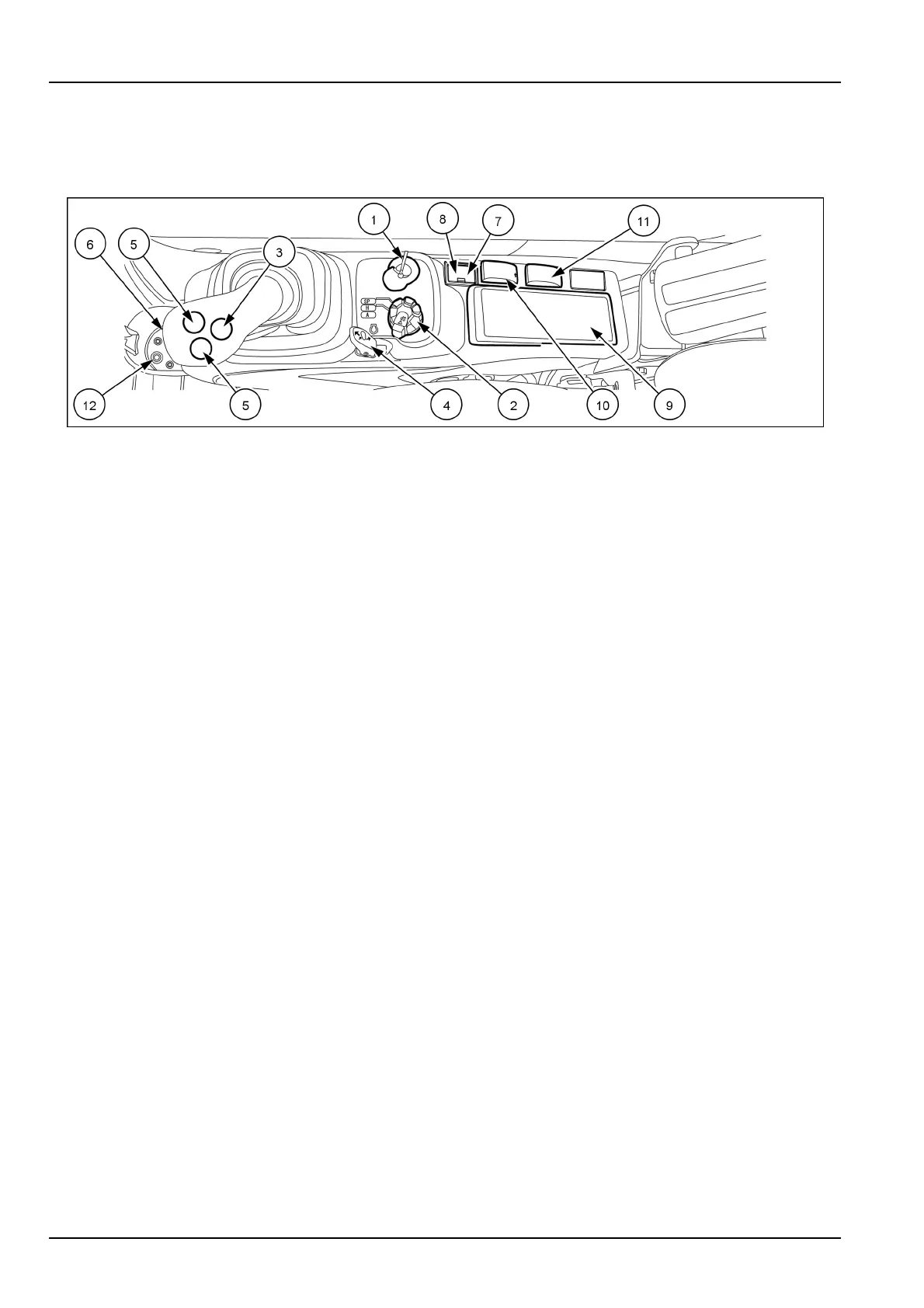

SMIL20CEX1387EA1
(1)Starterswitch(4positions):ON(contact),START
(engineignition),OFF(engineshut-down)andACC(ac-
cessorycurrentsupply).
NOTICE:whenthestarterkeyisinONposition,ifthe
anti-theftprotectionhasbeenprogrammed,itwillbenec-
essarytoenterthepassword.RefertopageEngine
startingsystem-Start.
NOTE:thestarterkeyisalsousedtolockthecabdoor,
theDEF/ADBLUE®tankcover,theenginehood,thefront
storagebox,thesidedoorsandthefueltankcap.
(2)Enginespeedthrottleandworkmodeselector.
(3)Enginelowidlespeedbutton:theenginelowidle
speedbuttonenablestosettheenginespeedtolowidle
atatouchwithoutmovingtheenginespeedthrottle.If
operatingatenginespeeddifferentfromlowidle,press
andreleasetheenginelowidlespeedbuttontogetdown
theenginespeedtolowidle.Pressandreleasethebut-
tonagaintoresumetheenginespeedsetbytheengine
speedthrottle.
(4)Armangleadjustmentlever:theleverenablesthe
controlarmtobeadjustedindifferentinclinesinaccor-
dancewiththeoperator'sbodyprole.Holdtheleverand
selectthedesiredposition,andthenreleasethelever.
NOTE:stoptheenginewhenadjustingthecontrolarm.
(5)Notactive.
(6)One-touchwiperbutton:pressandholddownthebut-
tontooperatethewiper.
(7)Auxiliaryport.
(8)USBport.
(9)Radio.
(10)Travelalarmswitch.
(11)Rotarylightswitch:thiscontrolisusedtoturnthe
rotatingwarninglightonoroff.WhenyoupressON(op-
erate),therotatingwarninglightandtheindicatorlamp
ontheswitchlightup.WhenyoupressOFF(stop),the
rotatingwarninglightgoesout.
(12)Beveragecanholder.
