6-MAINTENANCE

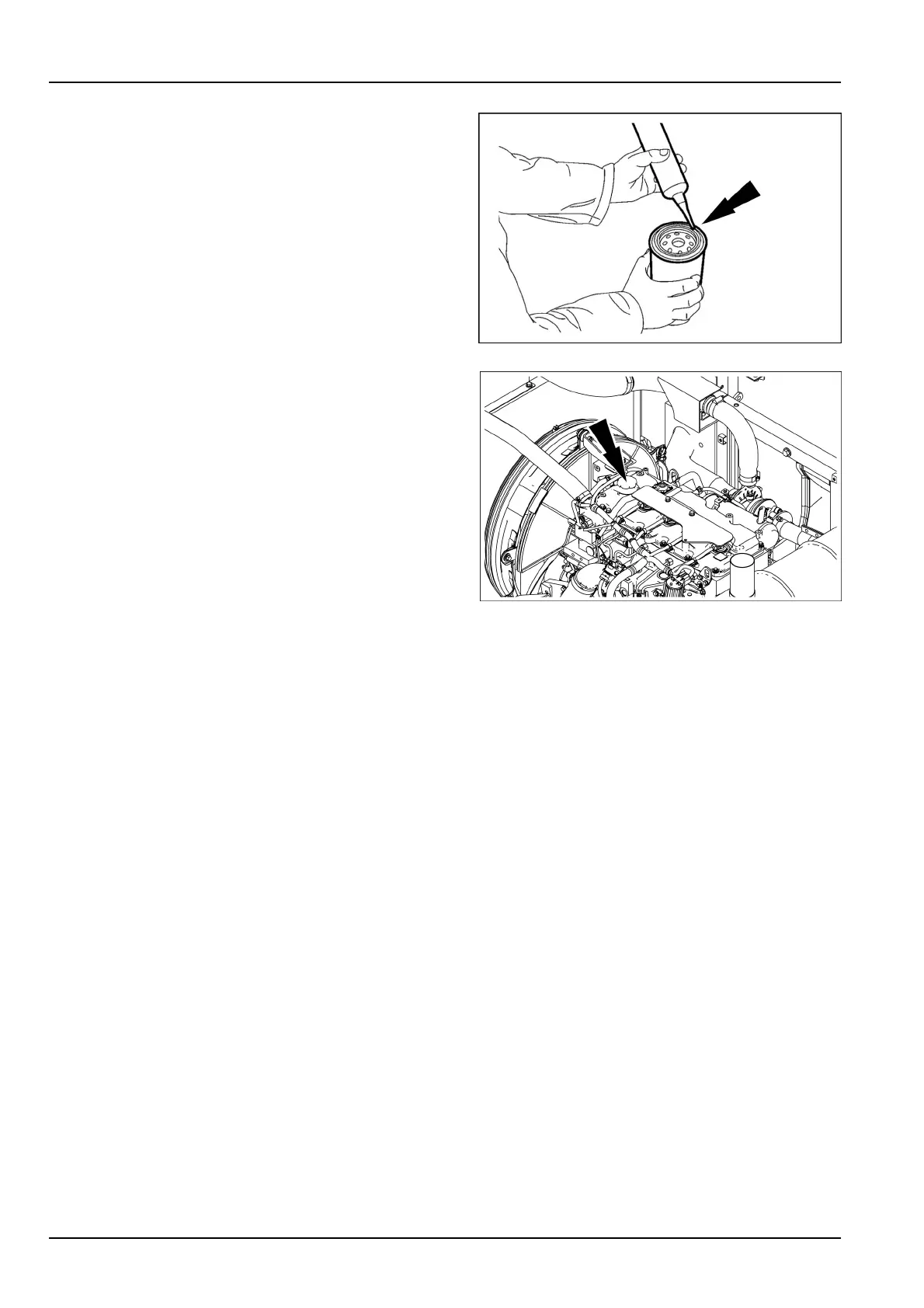

8.Applyanoillmnelytothesealofanewlter.

9.Attachanewlter.Turnthelteruntilthesealtouches

thelterhead,andthentightenitfurtherahalfturnby

hand.

NOTE:Donotusealterwrenchfortighteningthelter.

Overtighteningcandamagethelteranditsseal.

SMIL14CEX2751AA4

10.Addnewengineoiltotheengine.Attachthelling

plug.

11.Runtheengineforseveralminutestocheckthatthere

isnoleak.

Recheckthelevel,andaddoilifnecessary.

NOTE:alwayswait15mintoallowtheoiltoreturntothe

sumpbeforecheckingtheoillevel.

SMIL17CEX0159AA5
