3-CONTROLSANDINSTRUMENTS

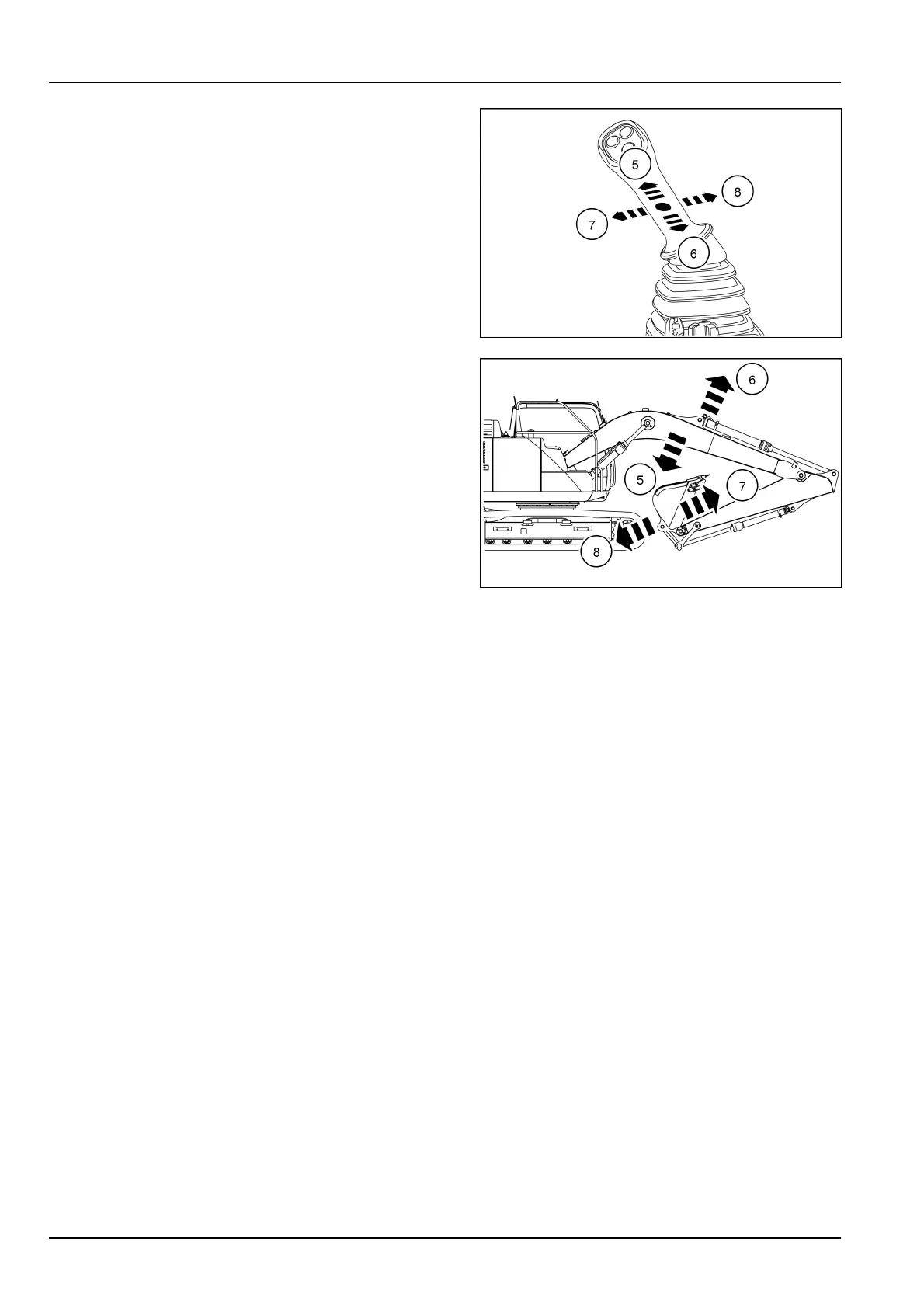

Right-handcontrollever:

5.Theboomlowers.

6.Theboomraises.

7.Thebucketretracts(lling).

8.Thebucketextends(dumping).

NOTE:Thespeedofmovementoftheboomorthebucket

dependsonthecontrollevertiltangle.Intheintermediate

positiontwomovementscanbeobtainedsimultaneously.

SMIL15CEXY853AA3

SMIL19CEX2070AA4

3-8
