3-CONTROLSANDINSTRUMENTS

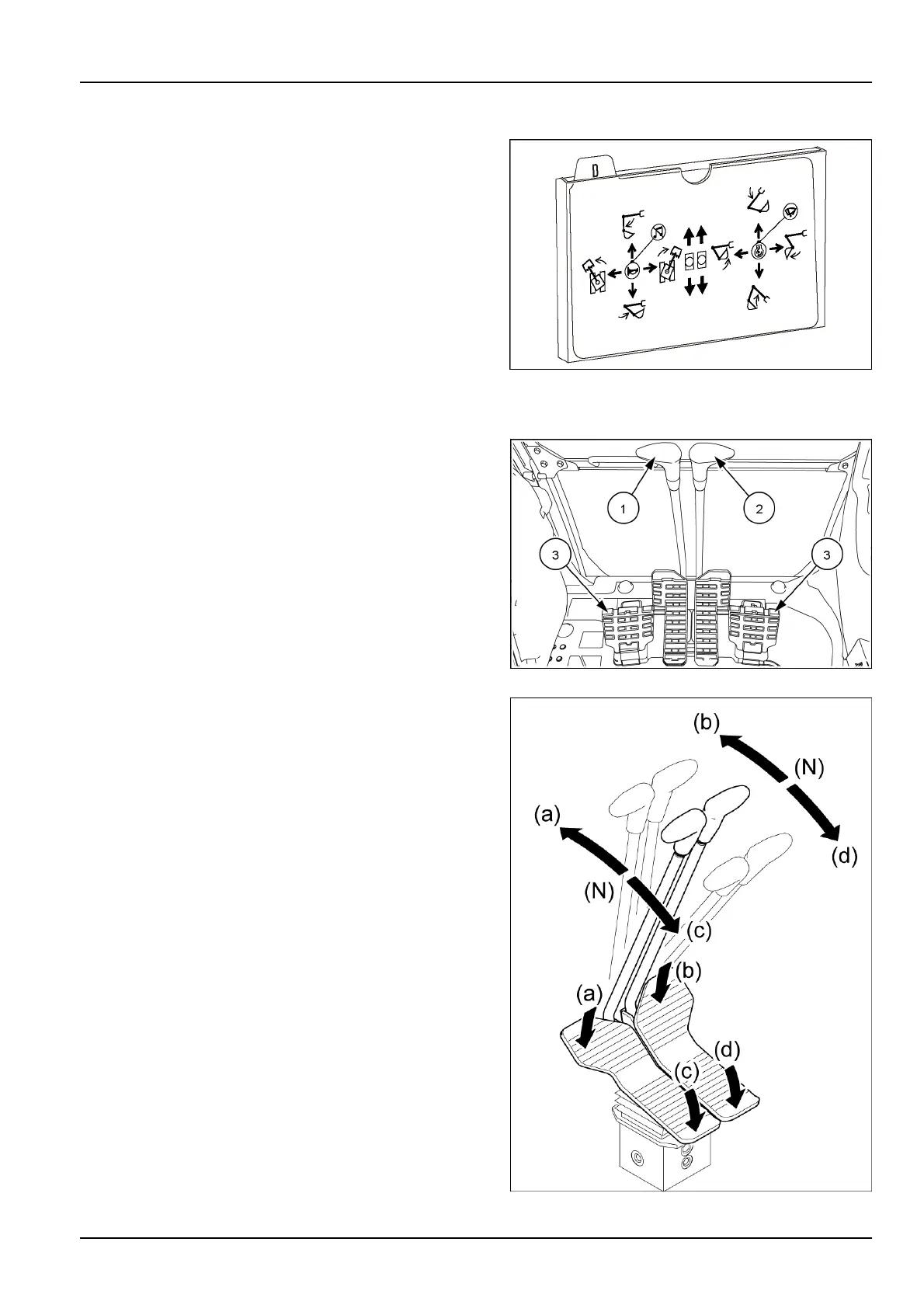

Conrmationofthecontrolpatternselection
1.Getontothecabandmakesuretoplacethesheetthat
mapstheoperatingcontrolstothesidecorresponding
totheselectedcontrolpattern(CorD).
2.Starttheengineandcheckthattheoperatingpattern
ofcontrolleversisconsistentwiththepositionselected
onthevalveandshownbythemappingsheet.
SMIL14CEX1671AA11
Travelcontrols
1.Left-handtravelcontrolleverandpedal
2.Right-handtravelcontrolleverandpedal
3.Footrest
SMIL16CEX2032AA12
Thetravelcontrolleversandpedalsareusedtomovethe
machine.
(N):neutral
(a)+(b):machinemovesforward.
(c)+(d):machinemovesbackward.
(b)+(c):oppositesimultaneousrotationofthetracks
withconsequentcounterclockwiserotationofthemachine
arounditscentreaxis.
(a)+(d):oppositesimultaneousrotationofthetrackswith
consequentclockwiserotationofthemachinearoundits
centreaxis.
(a),(b),(c),(d):positionstomoveonetrackonly.Con-
sequentlythemachinesteerspivotingonthestationary
track.
NH015913
3-13
