3-CONTROLSANDINSTRUMENTS

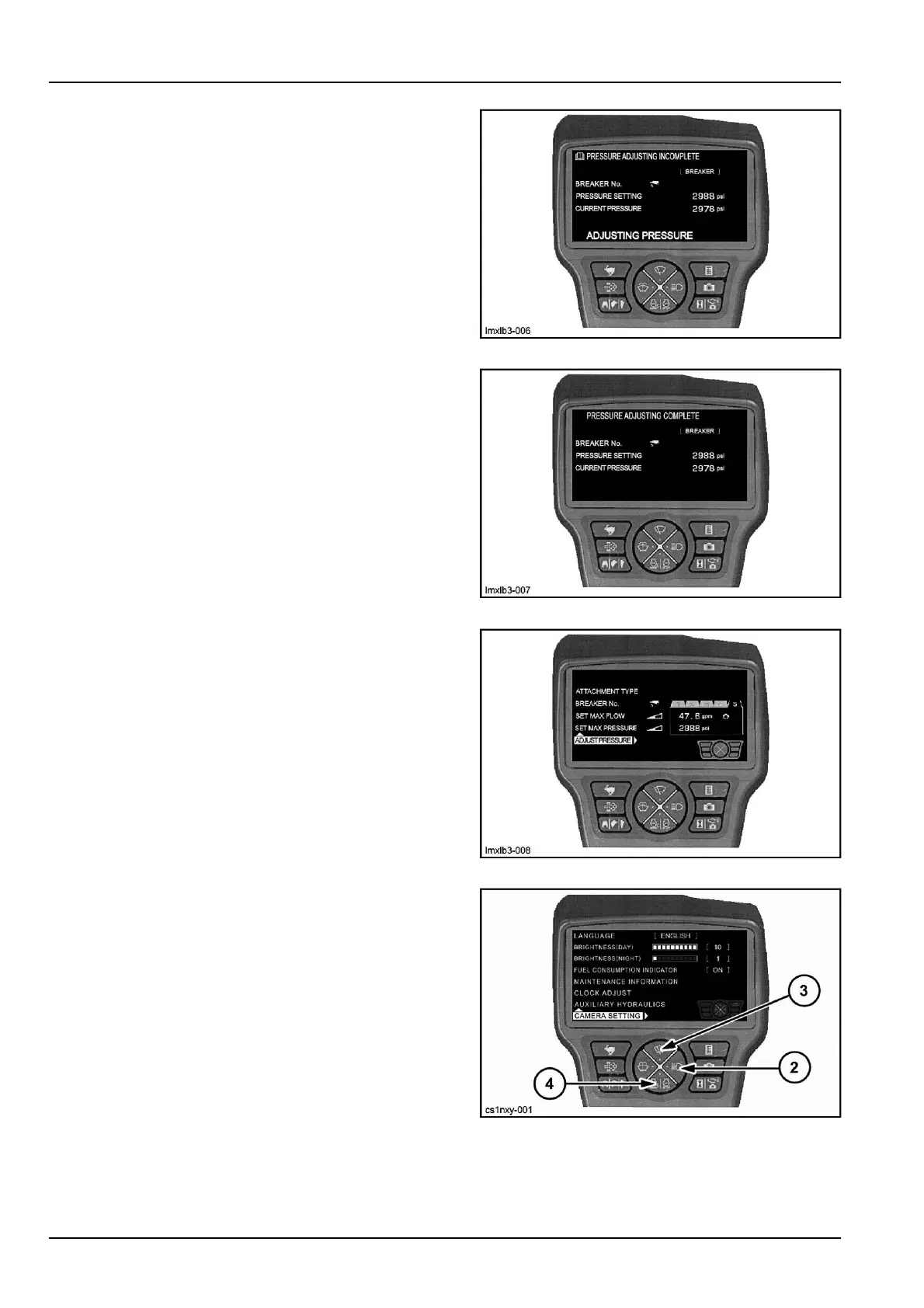

4.Holdtheswitchuntil“Pressureadjustingcomplete”is

displayedonthescreen.

LMXLB3-00631

5.Operationcomplete

LMXLB3-00732

6.Returnsautomatically.

LMXLB3-00833

Camerasetting

Theeighthtaboftheuserinformationmodeallowstoset

theviewoftheexternalcameras.

Themenuchangesdependingonthenumberofcameras

installed.

Pressthebutton(2)toshowthesettingframe.

CS1NXY-00134

3-42
