179

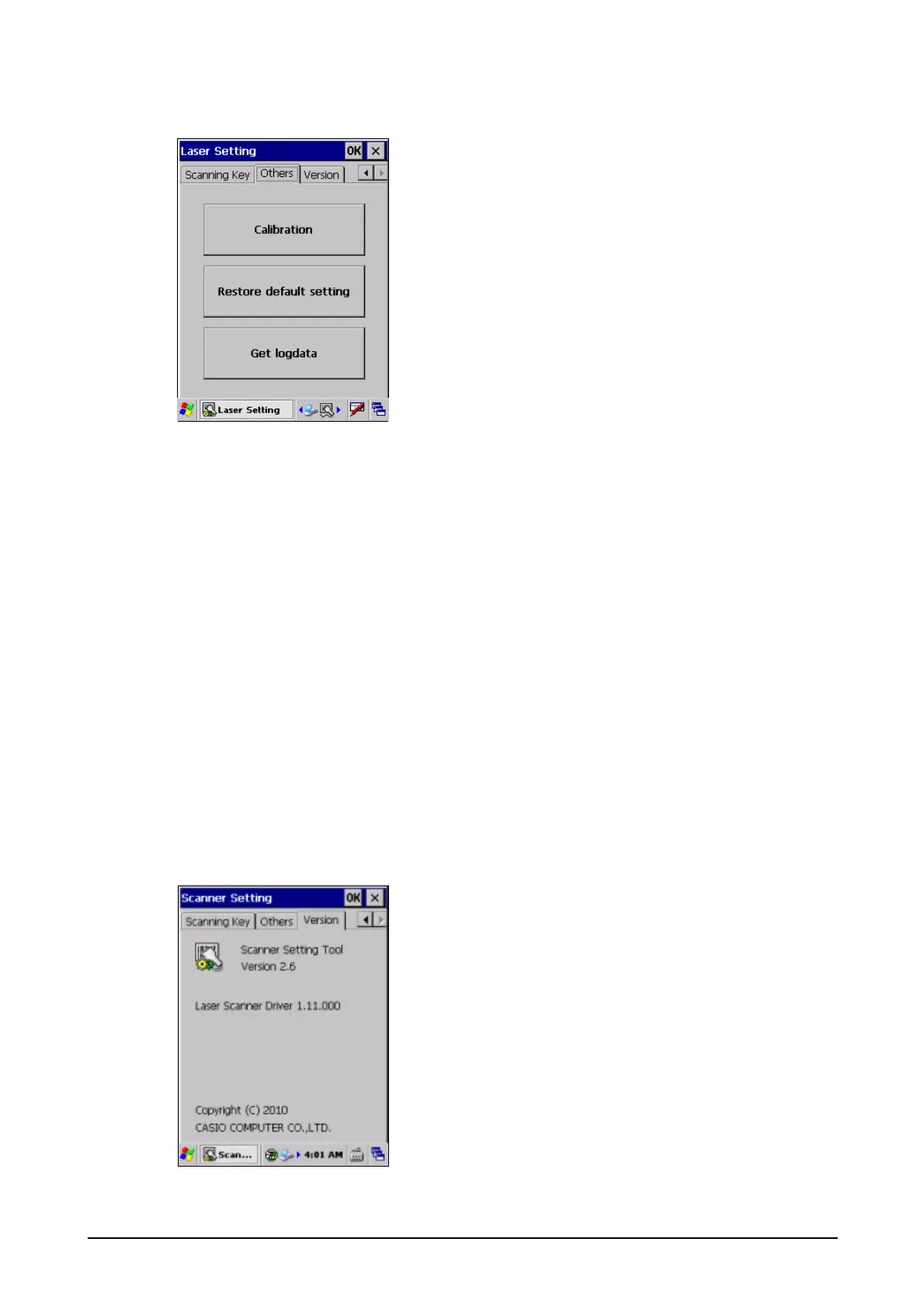

Others Tab
Figure 3-57
Calibration Button
This button displays the OBR calibration screen to set up the calibration of laser beam swing
angle. Follow the guidance appeared on the screen to complete the calibration.
The swing angle has been set at the factory prior to shipment. Only if it is almost certain that the
swing angle is not right, adjust it in this mode.
Restore default setting Button
This button resets setting contents and restores all the settings to the default values.
Get logdata Button
This button captures log information for both the scanner and decoder units. The following are the
log file names.
- Scanner unit: “\ObrLog.dat”
- Decoder unit: “\DecodeLog.dat”
Version Tab
This tab displays version information for the Laser Scanner setting tool.
Figure 3-58
