— 14 —

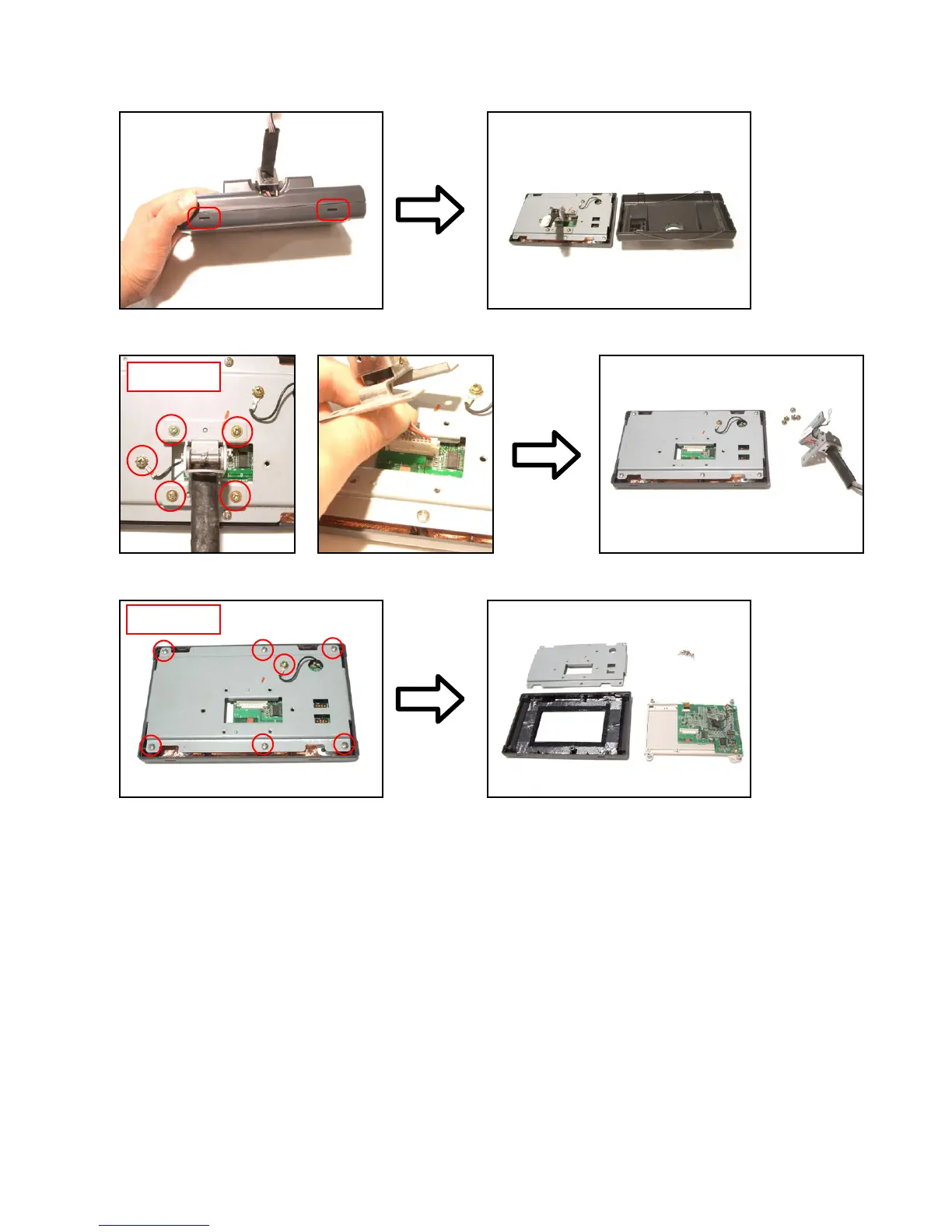

6. Release the hook and remove the REAR CASE.
7. Remove five screws, connector and the HINGE.
8. Remove seven screws and separate the LCD Unit.
Screw
×
7
Screw
×
5
