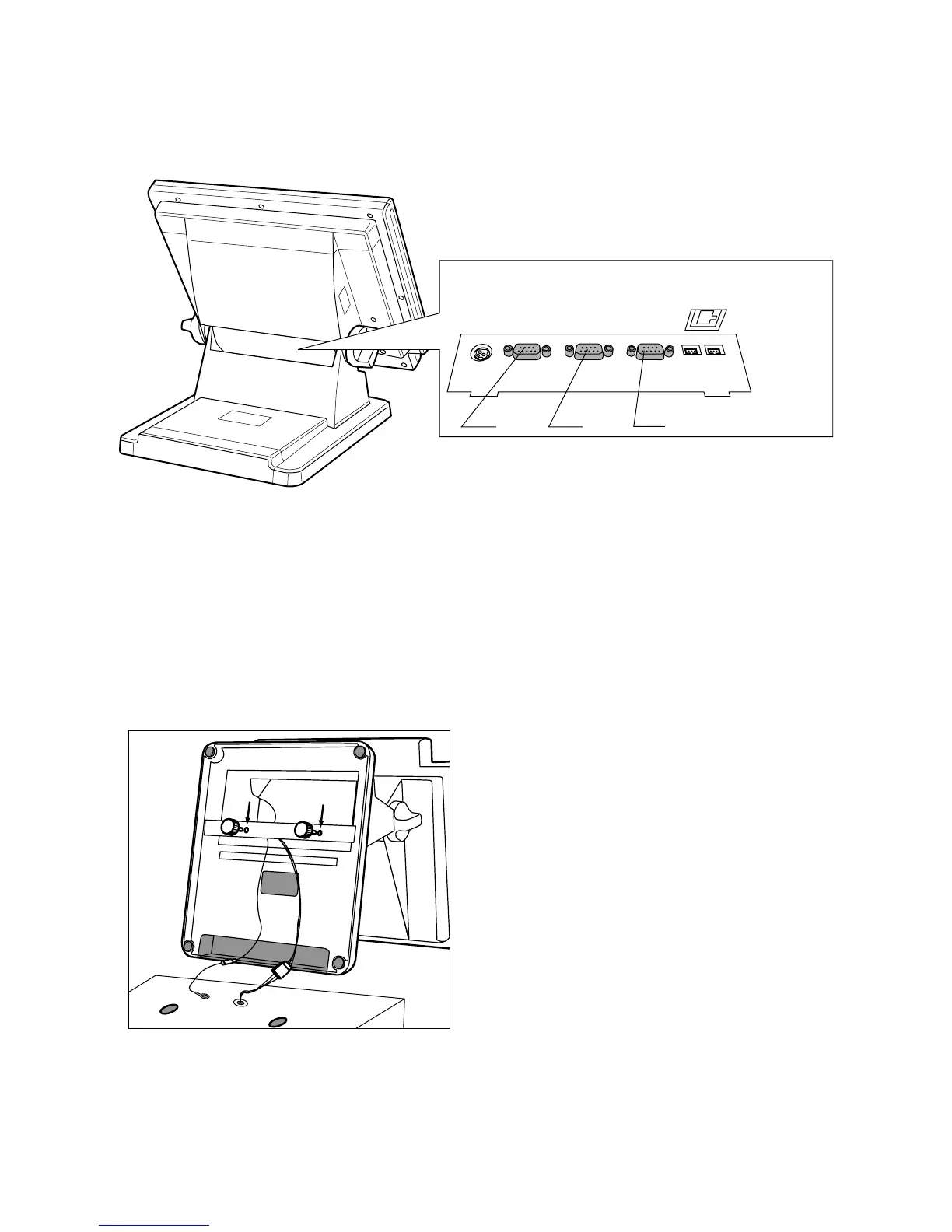

5-4. To install the DRAWER
In case of connecting drawer, follow the procedure below.
1. Connect drawer connector (three color lead on drawer) to the terminal.
2. Connect frame drawer connector (green lead on drawer) to the terminal.
Mount the cash register.
1. Screw in 2 fixing screws bottom side of the terminal.
2. Mount the terminal on the top of the drawer, ensuring that the feet on the bottom of the terminal go into the
holes on the drawer.
5-3. REMOTE PRINTER / SLIP PRINTER
Connect the following peripherals to the COM ports respectively.
REMOTE PRINTER: COM1, 2 or 3
SLIP PRINTER: COM2
DC IN
PC/MODEM
SCANNER
D
IS
P
LA
Y
DR
W
1
DR
W2
COM1
COM3COM2
LA
N
1
COM1 COM2 COM3
