6. IN LINE / OUT LINE
With the QT-6100, there are the following inline / online connectors in the rear side of the body.
6-1. Inline interface
The maximum inline cable length and the maximum connection unit will be varied by the inline communica-
tion speed as shown below figure.
• Using 10BASE-T
Cable length: 100m (terminal to terminal, hub to terminal, hub to hub)
Maximum 4 hubs in one cluster.
Maximum cable length between terminal and terminal via hubs is 500m.
• Using 100Base-TX
Cable length: 100m (terminal to terminal, hub to terminal, hub to hub)
Maximum 2 hubs in one cluster.
Maximum cable length between terminal and terminal via hubs is 300m.
CAT5 cable specifications
CAT5 UTP Cable (Straight)
0.5mm x 4P Not shielded wire Twist pair cable

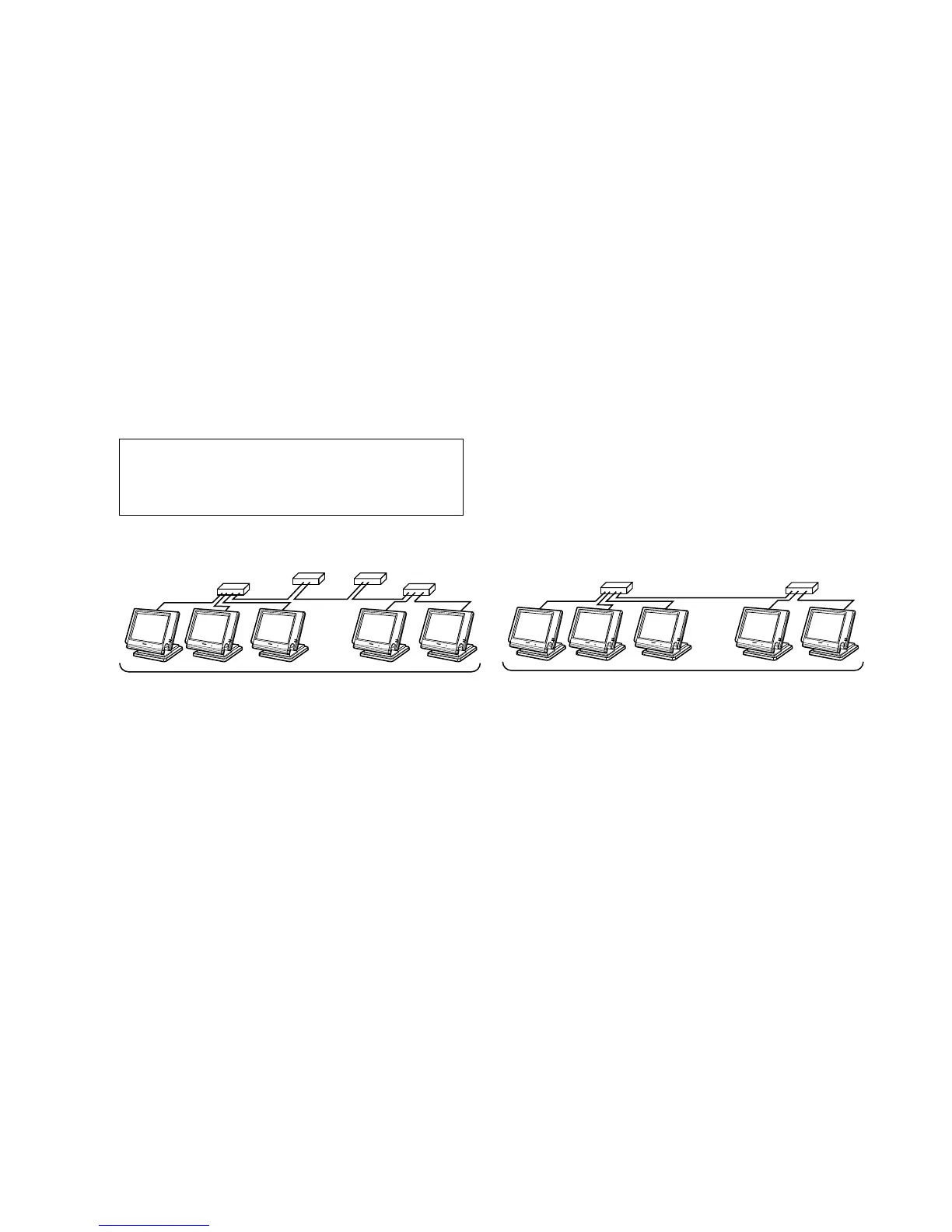

Configuration with Hub
• 10BASE-T
• 100BASE-TX
