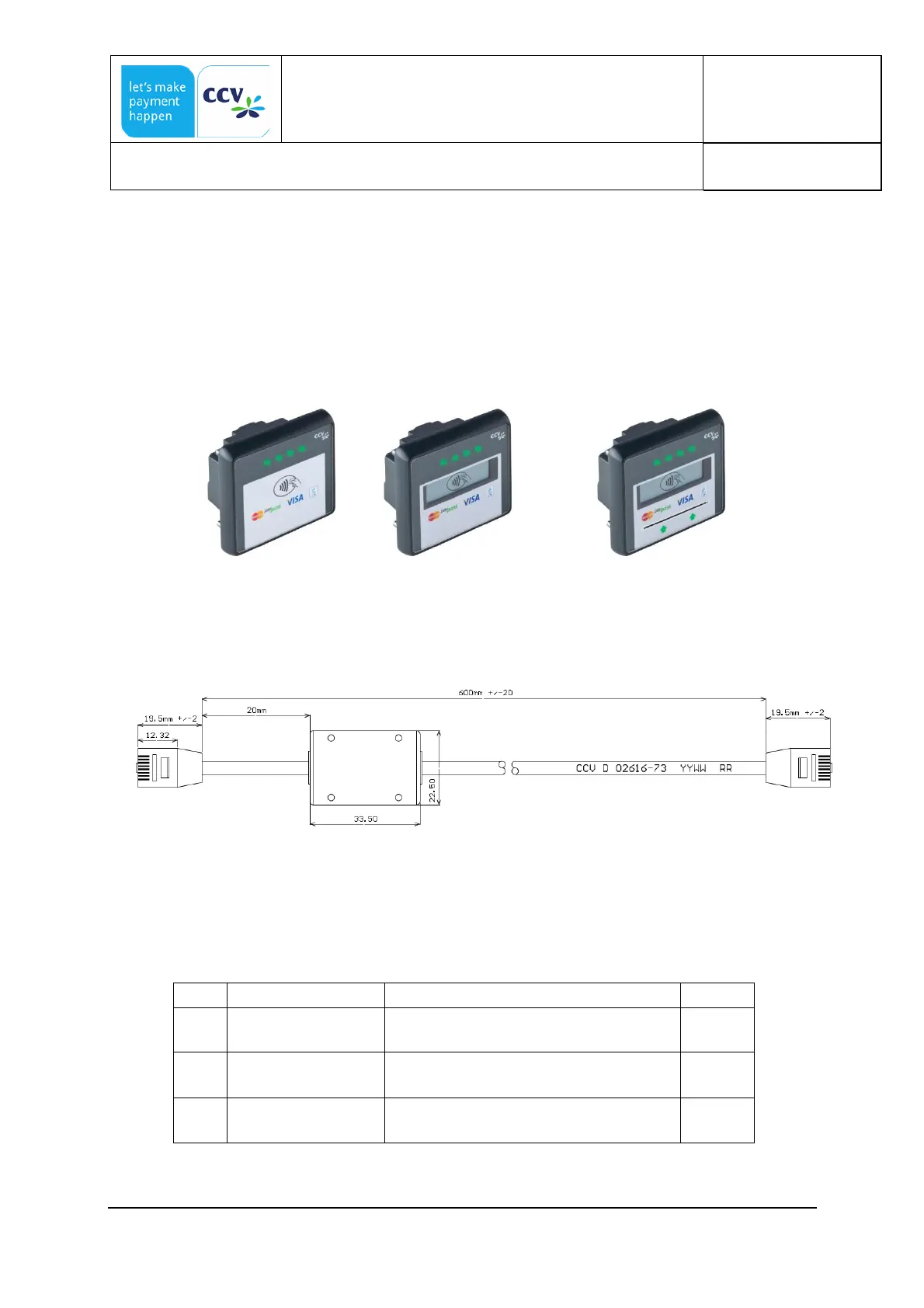

5.7.9 Contacless reader COR
COR contactless readers can be used with the OPP-C60 and the OPM-C60. A certification is
available for the combination OPP-C60 + COR-A10/12/20 and OPM-C60 + COR-A10/12/20 /
COR-B20. The OPP-C60 must not be used with COR-B20! The OPM-C60 does not require
a 4-eye-activation.
COR-A10/12
COR-A20
COR B20
(contactless only)
(as A10 plus Display)
(as A20 plus chip reader)
A cable with an infused ferrite can be found in the scope of supply. The following figure is
showing the cable from OPP-C60 / OPM-C60 to the COR reader (the ferrite is infused in the
cable part to the COR).
a) Description
SN
Designation
Name & Type
Qty
1
Connector
U.S. PLUG 8P8C, Molded Pantone
orange 165, Gold Plated 3U
1
2
Cabel
PU Jacket, 28AWG PP*4C, Black
Shiny
1
3
Connector
U.S. PLUG 8P8C, Molded Pantone
Yellow 107, Gold Plated 3U
1
