6.1.5 OPP-C60/OPM-C60 installation notes
The full front-impermeability (IP-65) can be ensured only by correct installation. For this
purpose, the terminal must be connected to four or six points of attachment screwed to the
specified torque (screw OPP-C60 with the machines front panel):
• OPP-C60s: Mounting with 6 Screws (preferred): 0,8Nm +/-0,2Nm
Mounting with 4 Screws: 0,8Nm +/-0,2Nm
(Should be avoided; 2 Screws in the middle are not used)
• OPP-C60c: Mounting with 4 Screws: 0,8Nm +/-0,2Nm
• OPP-C60m: Mounting with 4 Screws: 0,8Nm +/-0,2Nm
• OPM-C60: Mounting with 4 screws 0,8Nm +/-0,2Nm
The nuts must be secured with locking compound.
The OPP-C60 must be grounded through a mounting screw (cross-section of the
grounding line min. 2,5 mm
2
)

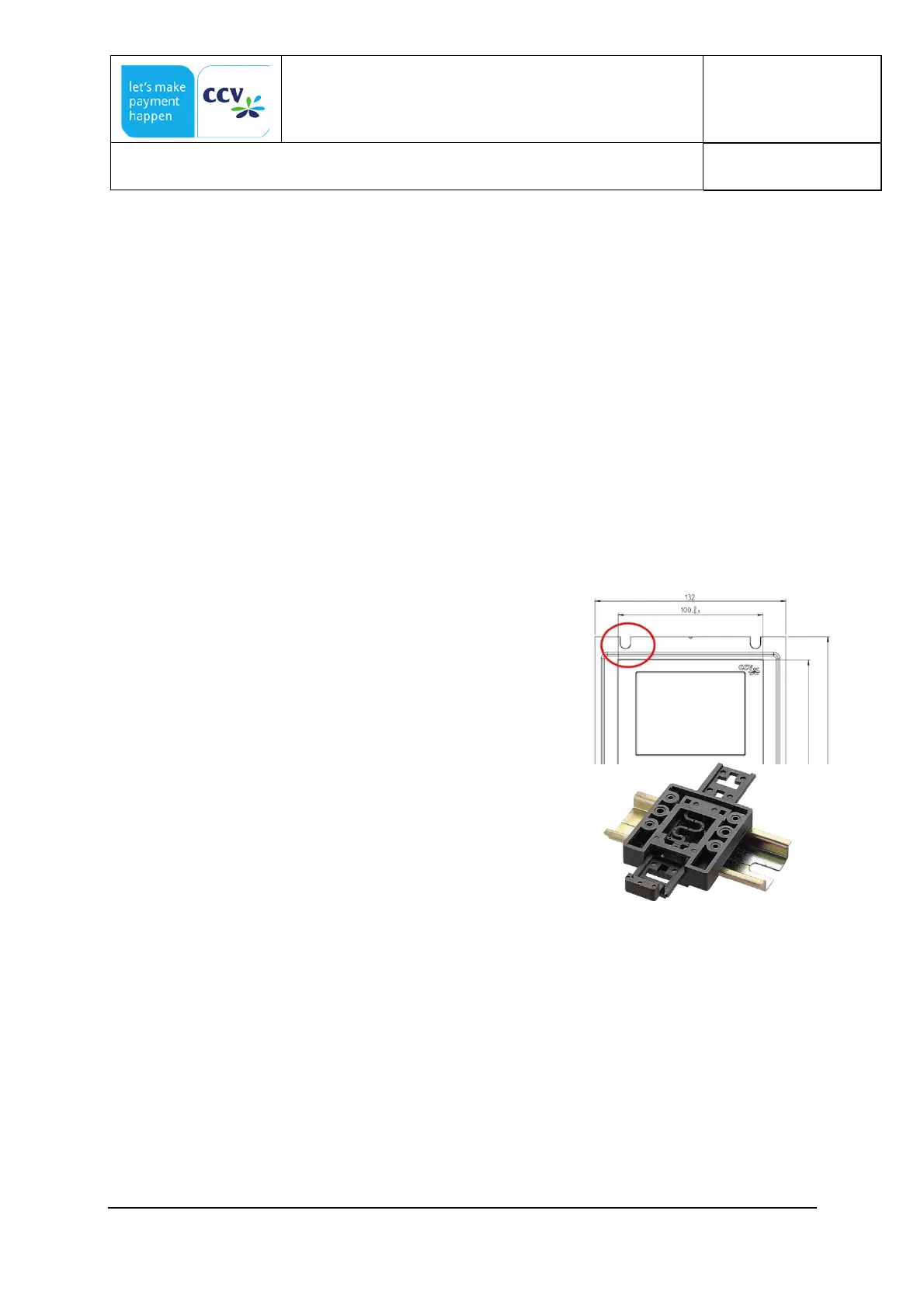

At the OPP-C60m (7000) it is relatively tight on site,
at the upper left screw to set an adequate mold.
We provide you for this attachment point a longer
spacer bold as a substitute for the mother.
These are available in sizes M4 - M6.
- Model spacer bold M4: 02361-72
- Model spacer bold M5: 02362-72
- Model spacer bold M6: 02363-72
The OPM-C60 can be used with
Bopla TSH Tragschienenhalter for
mounting on DIN-Hutschienen.
