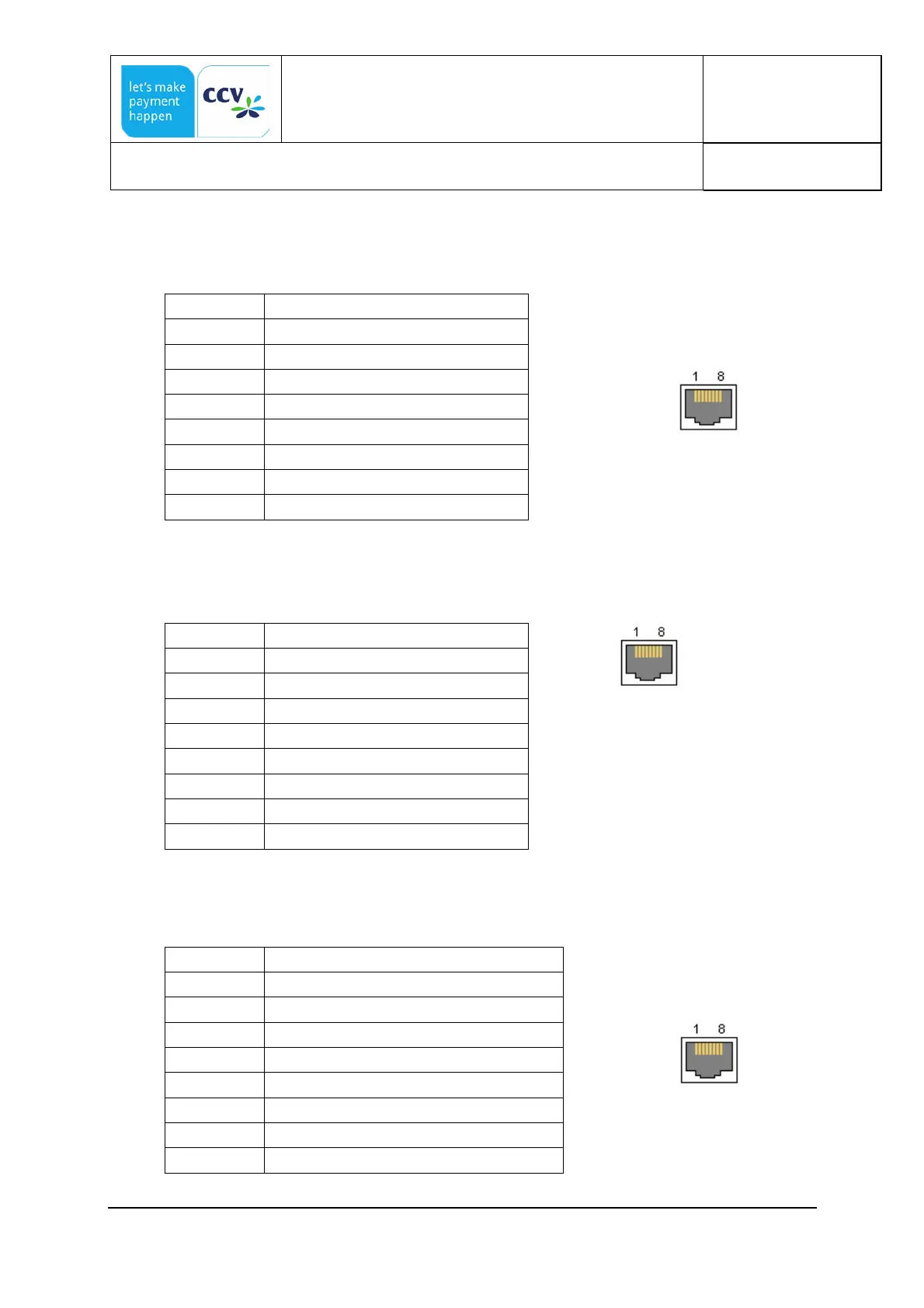

6.2.2 COM
RJ45 8-pin, shielded
Pin
Signal
1
V
out
(switched; 9v to 25V)
2
GND
3
RxD
4
TxD
5
RTS
6
CTS
7
MDB_WAKE
8
Power GND
6.2.3 SCR
RJ45 8-pin, shielded
Pin
Signal
1
V
out
(switched; 9v to 25V)
2
GND
3
RxD
4
TxD
5
Not used
6
Not used
7
MDB_WAKE
8
Power GND
6.2.4 MDB/COM2
RJ45 8-pin, shielded
Pin
Signal
1
V
in
(9V to 25V)
2
GND
3
RxD-MDB
4
TxD-MDB
5
RxD-COM2
6
TxD-COM2
7
MDB_WAKE
8
Power GND
