CCV OPM-C60 - POS (ZVT ERC Interface)

OPM-C60/OPP-C60
System Manual
PA72P002_en
Edition: 40
Page 42 - 68
Product specific instructions
Confidential
© CCV GmbH - It is not allowed to duplicate or distribute this document without our agreement.
Note
The interfaces described below are not short-circuit proof!

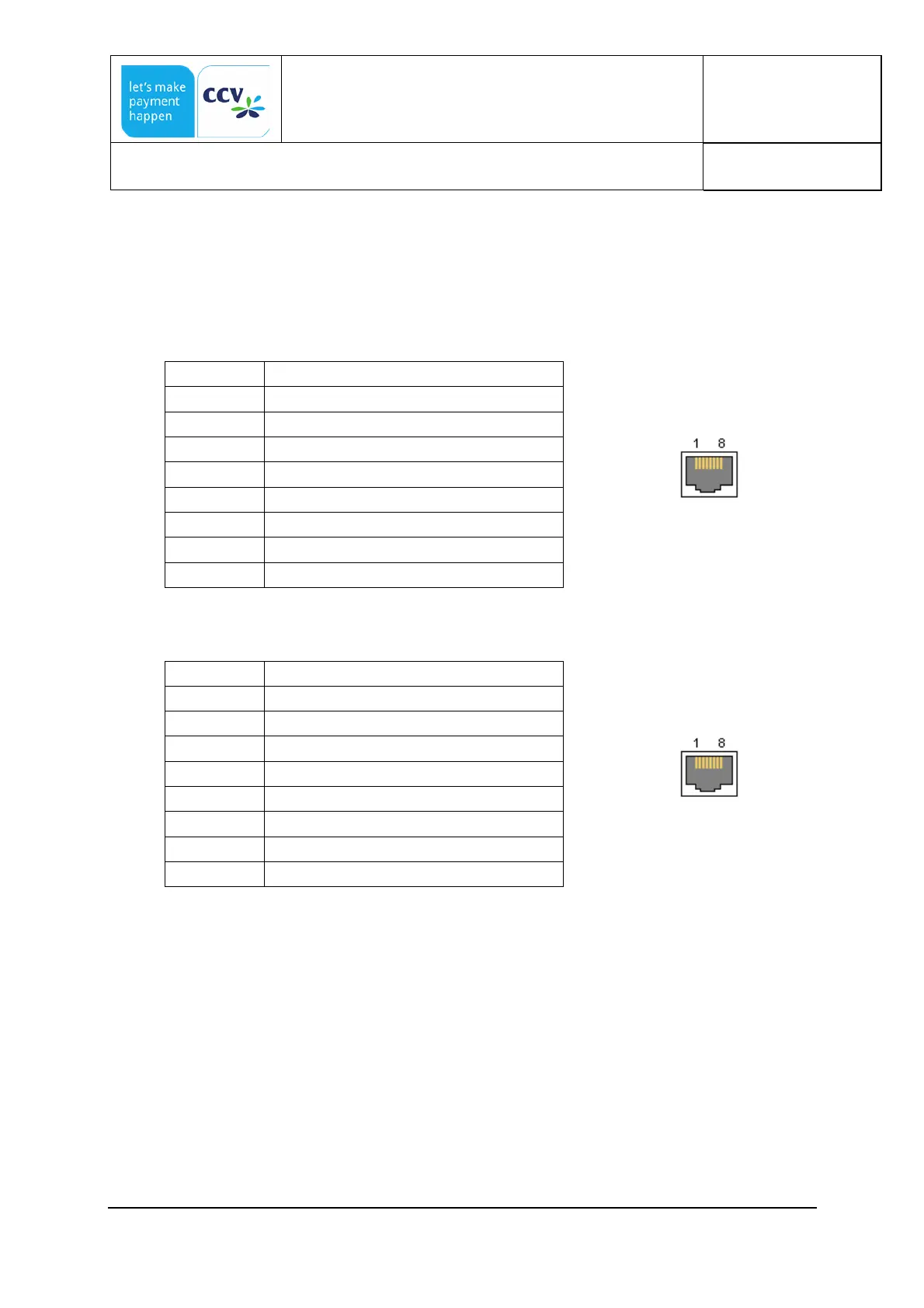

6.2.1 POS (ZVT ERC interface)
RJ45 8-pin, shielded; low power 0 and 1 revision (up J series, incl. L series)
Pin
Signal
1
for int. use; must be free
2
GND
3
RxD
4
TxD
5
Not used
6
Not used
7
Not used
8
Power GND
RJ45 8-pin, shielded; from low power 2 revision on (K series and M series or later)
Pin
Signal
1
V
out
(switched; 9v to 25V)
2
GND
3
RxD
4
TxD
5
RTS
6
CTS
7
MDB_WAKE
8
Power GND
