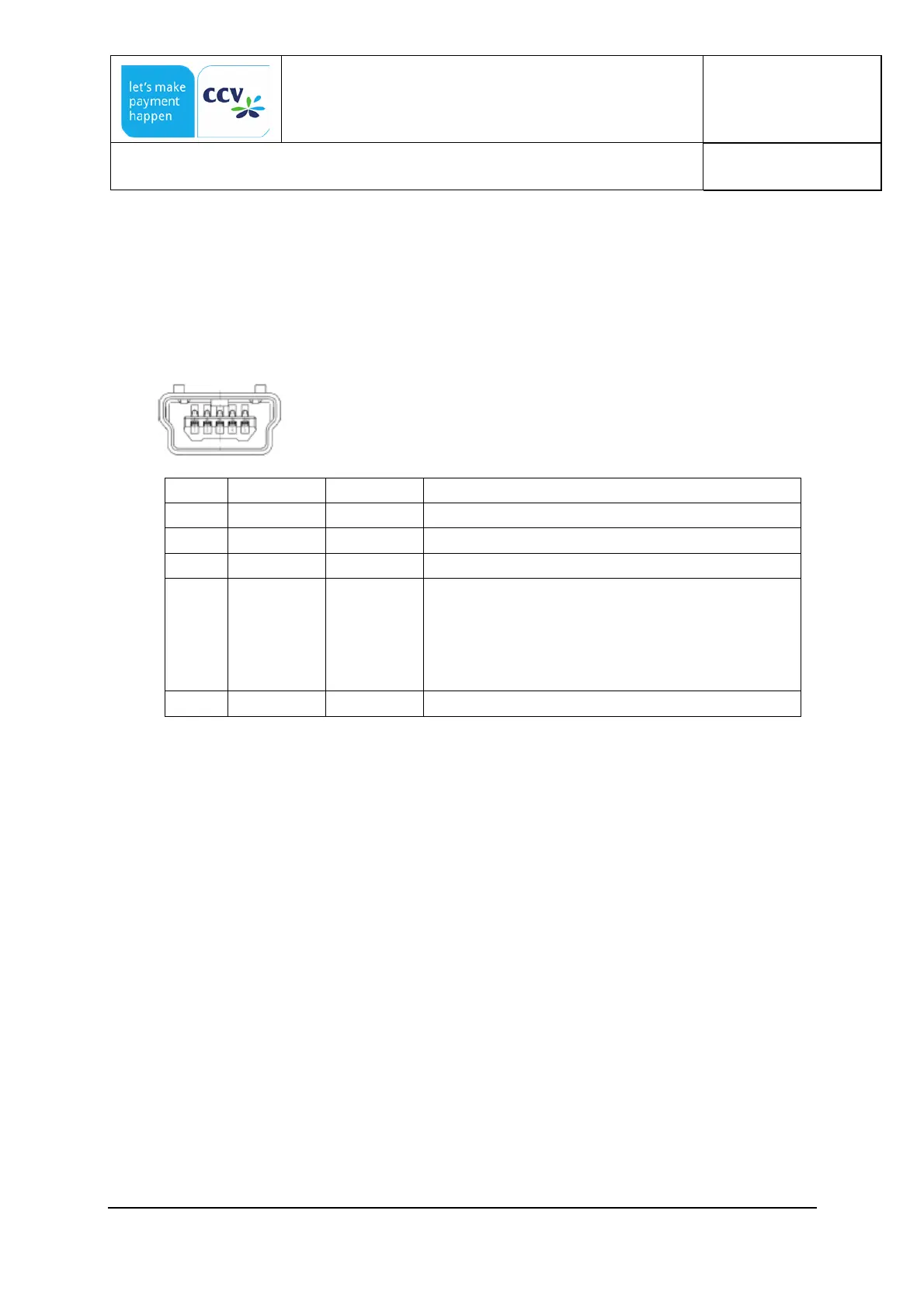

6.2.7 USB-OTG
Mini-B USB 2.0 Port
USB 2.0 OTG (Host/Device) (High Speed 480MBit/s und Full Speed 12MBit/s):
USB Mini-B; straight connector.
The OPP-C60 operates as a USB Network device.
Pin
Name
Farbe
Signal
1
VCC
Red
+5V
2
D-
White
Data -
3
D+
Green
Data +
4
ID
No
Allows the distinction between micro connectors
A and B:
- Type A: Ground (OTG Device works as a host)
- Type B: not connected (OTG device operates
as a periphery)
5
GND
Black
Ground
For using the OTG host mode with the OPP-C60, a special OTG connection cable will be
needed.
OTG port as device
- OTG-Port without cable
- Device-cable, not connected
- Device-cable, connected
OTG port as host
- OTG-cable without device connection
- OTG-cable with USB stick
- OTG-cable with self-powered USB hub
