Information for the contacting unit of the COR-B20
- The contacting unit for the chip card is produced for 10 years in a large quantity. It is
sophisticated very solid and is also used for outdoor applications.
- All materials of the contacting unit are water resistant (i.e. synthetics, high-grade steel,
gold-plated contacts for contacting the chip and gold-plated contacts at the limit switch).
- There can only be problems with frozen contacts. If the card is put in more times the
ice on the contacts will detach. For preventing the contacts of freezing we recommend
to use a heating inside of the vending machine.
5.7.9.2 Viewing angle of the COR display
Respecting the tolerances of the hardware components and the mounting tolerances the
following max. viewing angle for the COR can be given.
- max. viewing angle from top / bottom about 17° to the display normal
- max. viewing angle from left / right about 50° to the display normal
5.7.9.3 COR Interfaces
a) RS-232 Host Interface
High speed RS232 (default 115.2 kbps, switchable to 230.4, 460.8 or 921.6 kbps);
RJ45; 8 pin shielded) without hardware handshake.

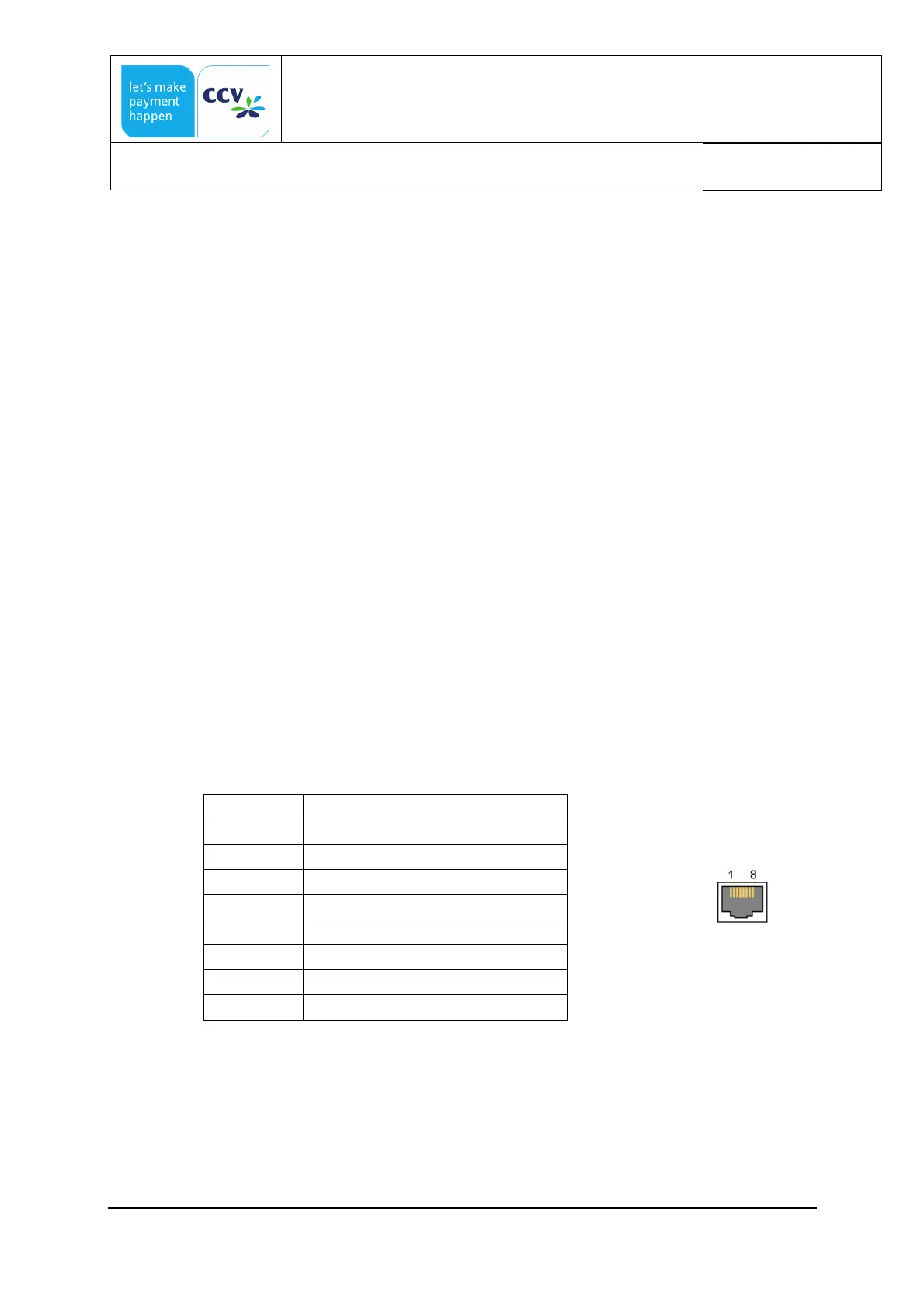

The RJ45 Connector is located at the bottom side of the COR and the maximum cable
length is 100cm.
b) USB host interface
• USB 2.0 compatible, 12 MBps, USB function (slave)
• connector type: 5-pin Mini-B-Connector
• Power supply via RJ45 connector (VBUS not used for supply)
• Automatic wakeup, if VBUS is present
