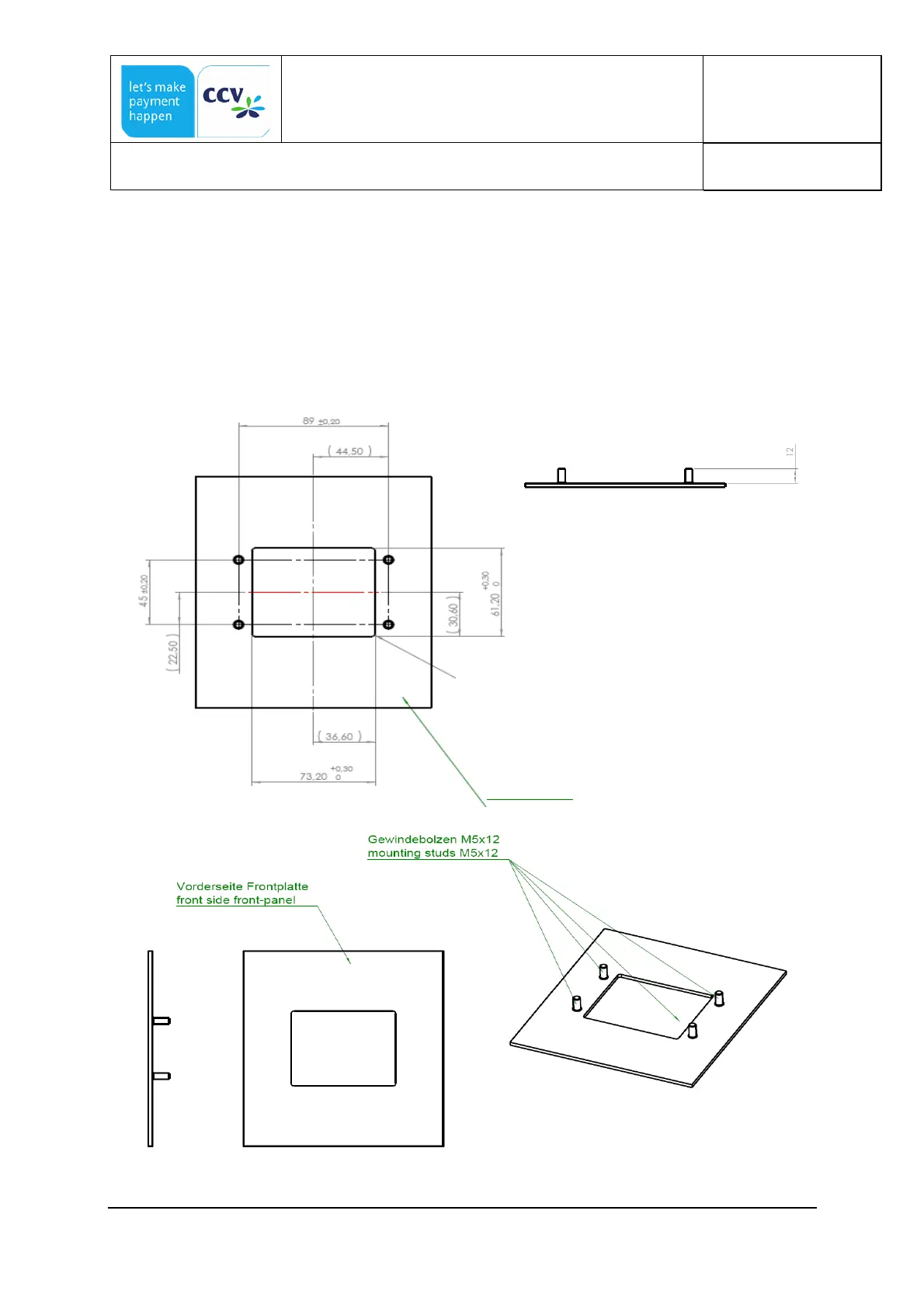

6.1.8 Dimensions of SCR-C front cut-out
Integration information
SCR-C: attachment with 4 mounting nuts: 0,8Nm +/-
0,2Nm
Rückseite Frontplatte
back side front-panel
R3 (4x)
