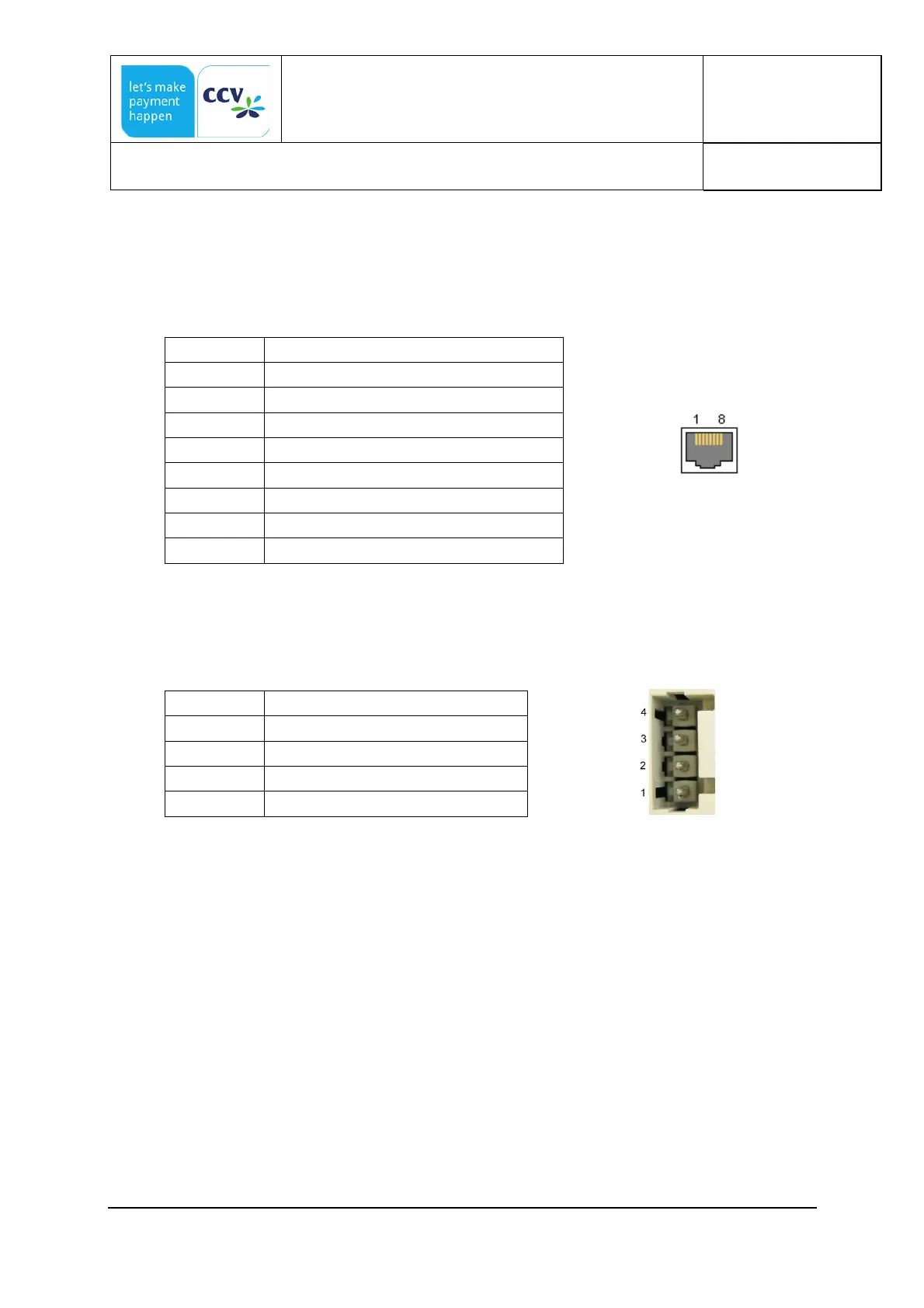

6.2.5 LAN
The power supply for the OPP-C60 / OPM-C60 should not be provided over the LAN interface.
RJ45 8-pin; CAT5
Pin
Signal
1
TX+
2
TX-
3
RX+
4
5
6
RX-
7
8
6.2.6 PWR (Power supply)
Plug: Wago 733-104
Recommended power supply: GlobTek GT-41132-6012-T3 (12V DC/5A)
CCV Part Nr.: 01380-42
Adapter GlobTek/WAGO: CCV Part Nr.: 01381-42
Pin
Signal
1
9V to 25V
2
GND
3
12V Heating
4
24V Heating
