OPERATOR INSTALLATIONSECTION 7
7. OPERATOR INSTALLATION
7.1. New Site Installations
7.1.1. Locating an Initial Reference Point
When installing the D10 SMART / D10 Turbo SMART / D20 SMART, it is
important to take note of the information found in Sections 7.1.1. and 7.1.2.
when determining the position of the Foundation Plate, and the height of the
D10 SMART / D10 Turbo SMART / D20 SMART in relation to the gate that is
to be automated.
Once the point which protrudes the furthest has been found, this will be the
reference point to be used when nding the optimum position for the
D10 SMART / D10 Turbo SMART / D20 SMART.

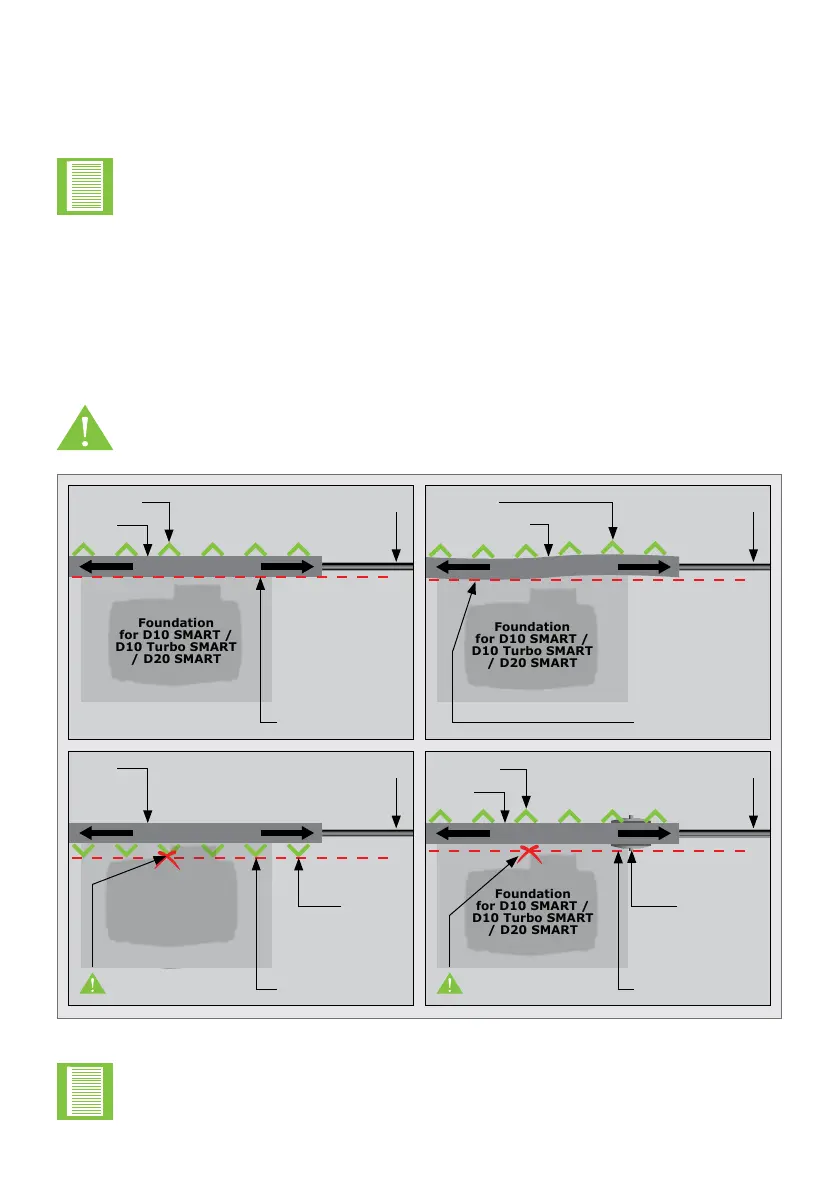

FIGURE 8. FINDING A REFERENCE POINT
Firstly, it is necessary to establish a reference point. To do this, manually open and close
the gate so that it moves past a stationary point (i.e. a vertical spike), and determine
which part of the gate (including its wheels) protrudes the furthest towards where the
D10 SMART / D10 Turbo SMART / D20 SMART will be installed. Refer to the
examples shown below.
Check for wheels, palisade, uprights, etc. that could potentially collide
with the pinion.
Foundation
for D10 SMART /
D10 Turbo SMART
/ D20 SMART
GATE MOVEMENT
Gate Rail
Edge that
protrudes
the furthest
(Reference Point)
Warped Gate
Palisade
GATE MOVEMENT
Gate Rail
Edge that
protrudes out
the most
(Reference Point)
Gate
Palisade
GATE MOVEMENT
Foundation
for D10 SMART /
D10 Turbo SMART
/ D20 SMART
Gate Rail
Edge that
protrudes
the furthest
(Reference Point)
Gate
Palisade
GATE MOVEMENT
Gate Rail
Edge that
protrudes out
the most
(Reference Point)
Gate
Palisade
GATE MOVEMENT
Foundation
for D10 SMART /
D10 Turbo SMART
/ D20 SMART
Gate Rail
Edge that
protrudes
the furthest
(Reference Point)
Gate
Palisade
Possible
Collision
GATE MOVEMENT
Gate Rail
Edge that
protrudes out
the most
(Reference Point)
Gate
Palisade
Foundation
for D10 SMART /
D10 Turbo SMART
/ D20 SMART
GATE MOVEMENT
Gate Rail
Edge that
protrudes
the furthest
(Reference Point)
Gate
Palisade
Gate Wheel
Possible
Collision
