CENTURION SYSTEMS D10 SMART - 7.10.2. Placing the Control Card back into Position

page 38 www.centsys.com
OPERATOR INSTALLATIONSECTION 7

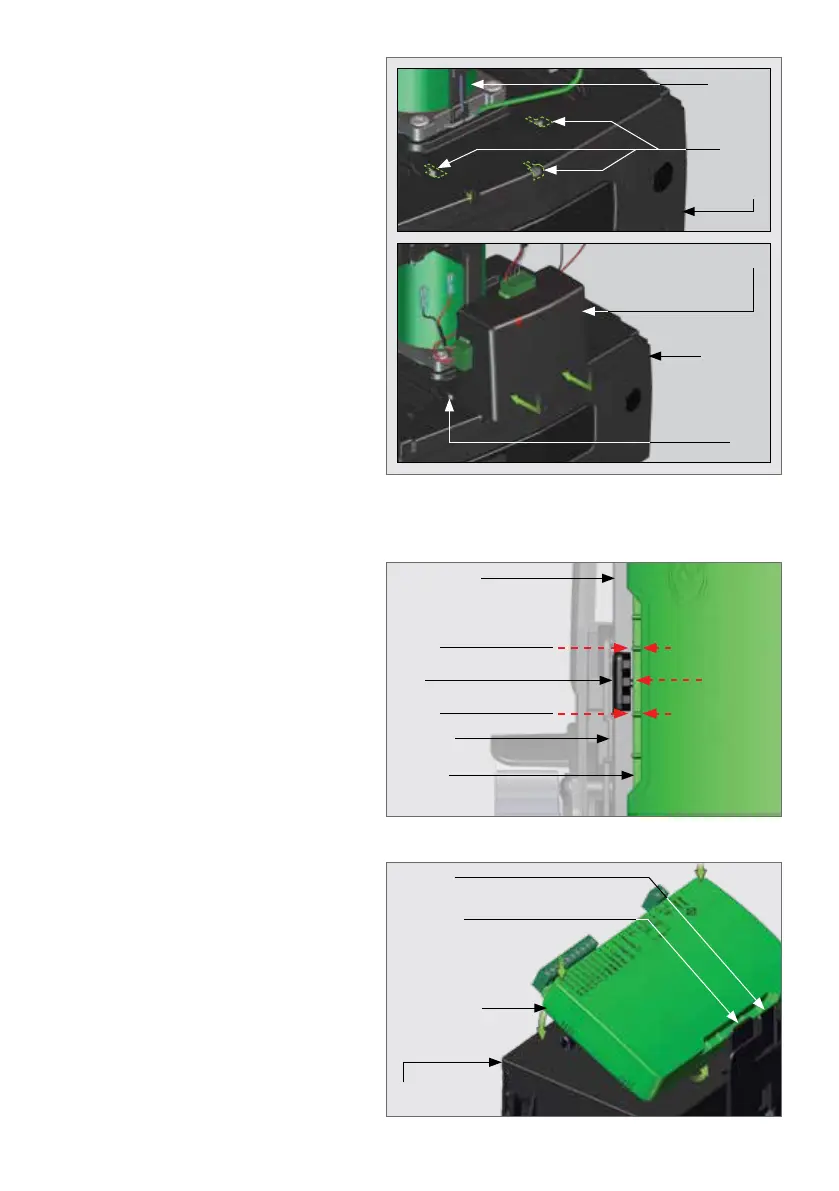

FIGURE 52. CHARGER PLACEMENT
Place the Charger back into position
by aligning the three studs at the
bottom of the Charger with the three
slots found on top of the Gearbox
Trim.
Place the studs of the Charger into
the three slots on the Gearbox Trim.
Firmly press the Charger down, and
push it toward the Electric Motor,
sliding it along the slots.
Tilt the Control Card towards the
back of the Control Card Platform
and align the wider gap with the
clips shown in Figure 53.
Once aligned, hinge the Control Card
under the tab's lip, and rmly press
downward on both sides in front of
the Control Card.
This will engage the Control Card
into the hinges at the front of the
Control Card Platform.
A click from both sides will be heard
if this is done correctly.
7.10.2. Placing the Control Card back into Position
Electric
Motor
Slots
Gearbox
Trim
Charger
Slot
Gearbox
Trim
FIGURE 54
FIGURE 53
Clip Wider gap
Control
Card
Ridge
Ridge
Left Tab
Control Card
Platform
Control Card
Platform
Right Tab
Control Card
Left Tab
