OPERATOR INSTALLATIONSECTION 7
Once the rack has been xed to the entire length of the gate, use a screwdriver to
carefully remove the Pinion Spyder from the Pinion of the D10 SMART.

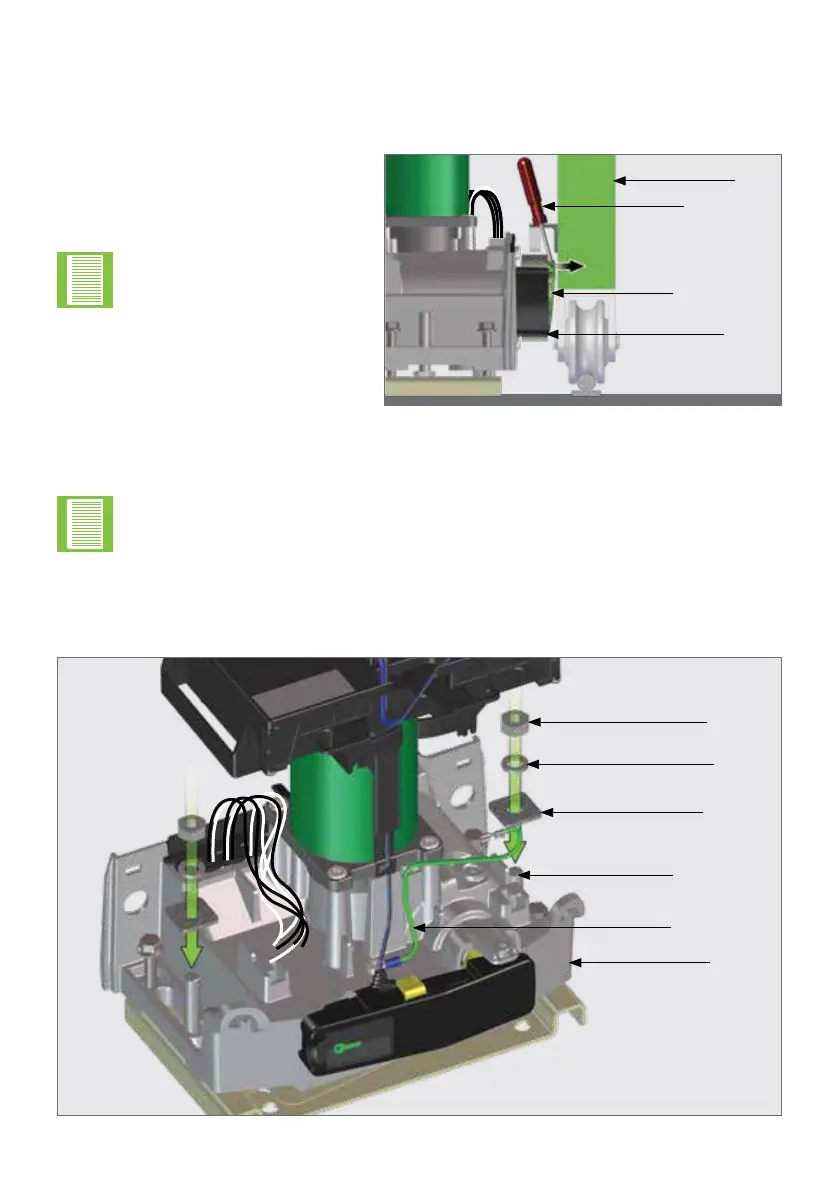

FIGURE 49
Slide the D10 SMART
away from the gate so that
the rack is centred above
the Pinion.
Final adjustment to the
position of the gearbox
should be done at this
point.
Pinion
Pinion Spyder
Screwdriver
Gate
7.9.2. Finalising the Height Adjustment
FIGURE 50
Place one Gearbox Mounting Washer, one Spring Washer and one Lock Nut onto each of
the Mounting Bolts. Tighten all of the Lock Nuts with a 17mm socket to secure the height
of the D10 SMART / D10 Turbo SMART / D20 SMART rmly in position.
Earth Harness
Gearbox
Lock Nut
Spring
Washer
Gearbox
Mounting
Washer
Gearbox
Mounting Bolt
Only add the Gearbox Mounting Washers, Spring Washers and Lock Nuts once
the Rack has been installed and the operator height is correct.
7.9.3. Placing the Gearbox Mounting Washers, Spring Washers and Lock Nuts
