8.3. Wiring the Control Card on its Default Settings
8.3.1. Closing Infrared Beam Wiring (i5 Infrared Beams)

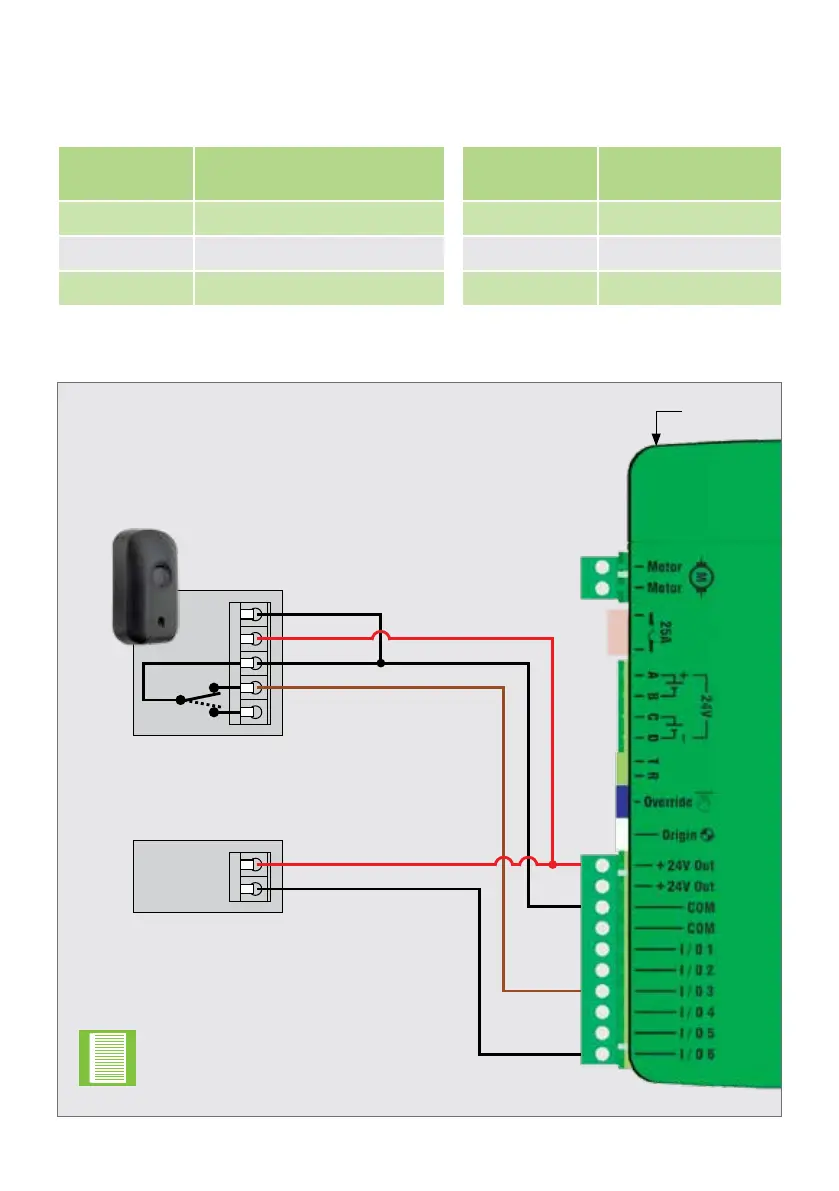

FIGURE 71
The D10 SMART / D10 Turbo SMART / D20 SMART Control Card's Input / Output
terminals are defaulted with the following conguration;
Control Card
Terminal
Default Setting
I/O1 Trigger (TRG)
I/O2 Pedestrian (PED)
I/O3 Infrared Beam Close (IRBC)
Control Card
Terminal
Default Setting
I/O4 Gate Status
I/O5 Free-exit (FRX)
I/O6 Safe Common
TABLE 3
Control Card
12V/24V -
12V/24V -
12V/24V +
12V/24V +
COM
NC
IRB Receiver
IRB Transmitter
NO
NC
COM
Please contact Centurion
Systems (Pty) Ltd for directions
on wiring Infrared Beams in an
opening conguration.
