SPECIFICATIONSSECTION 2

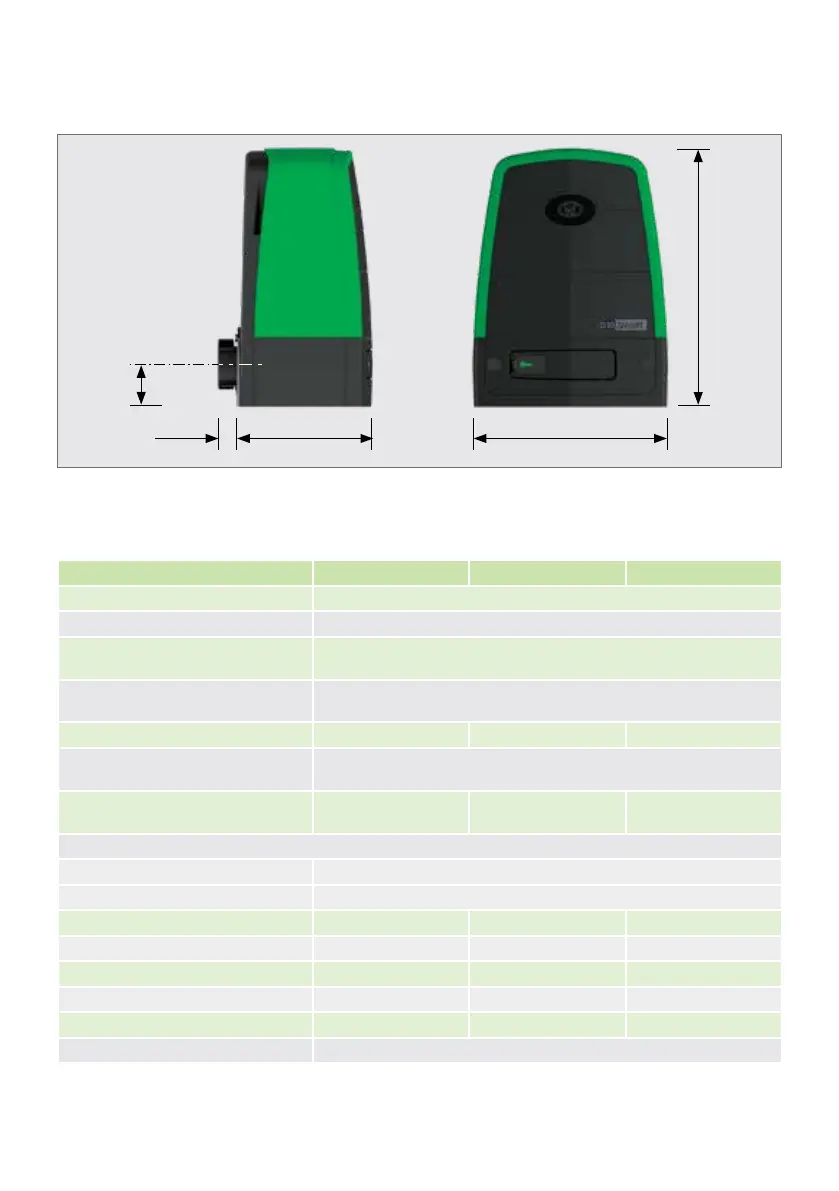

FIGURE 1. D10 SMART / D10 TURBO SMART / D20 SMART PHYSICAL DIMENSIONS
2. Specications
2.1. Physical Dimensions
2.2. Technical Specications
295mm
390mm
205mm28mm
64mm
1. The current values can be used to determine current consumption for battery life backup calculations.
D10 SMART D10 Turbo SMART D20 SMART
Input voltage 90V - 240V AC +/-10% @ 50Hz
1
Current consumption (mains) 250mA
Battery charger current
output
1.8A@ 27.4V +/-1%
Maximum number of
operations per day
750
3,6
Duty cycle - Mains present
2,3
45% 25% 45%
Motor power supply
Battery-driven
(Standard Capacity - 2x 12V 7.2Ah)
Current consumption
(motor at rated load)
8A 10A 9A
Input / Output sink currents (Max. accessory current draw)
I/O 1-4 100mA (12/24V)
I/O 5 and 6 3A (12/24V) 10sec Pulse
Motor push force - starting 40kgf 24kgf 52kgf
Motor push force - rated 30kgf 18kgf 39kgf
Gate mass - maximum 1000kg 250kg 2000kg
Gate length - maximum 50m 50m 25m
Gate speed (varies with load) Up to 26m/min
4
Up to 45m/min
8
Up to 18m/min
4
Manual Override Lockable with key release
TABLE 1
