8. Completing the Installation
COMPLETING THE INSTALLATIONSECTION 8

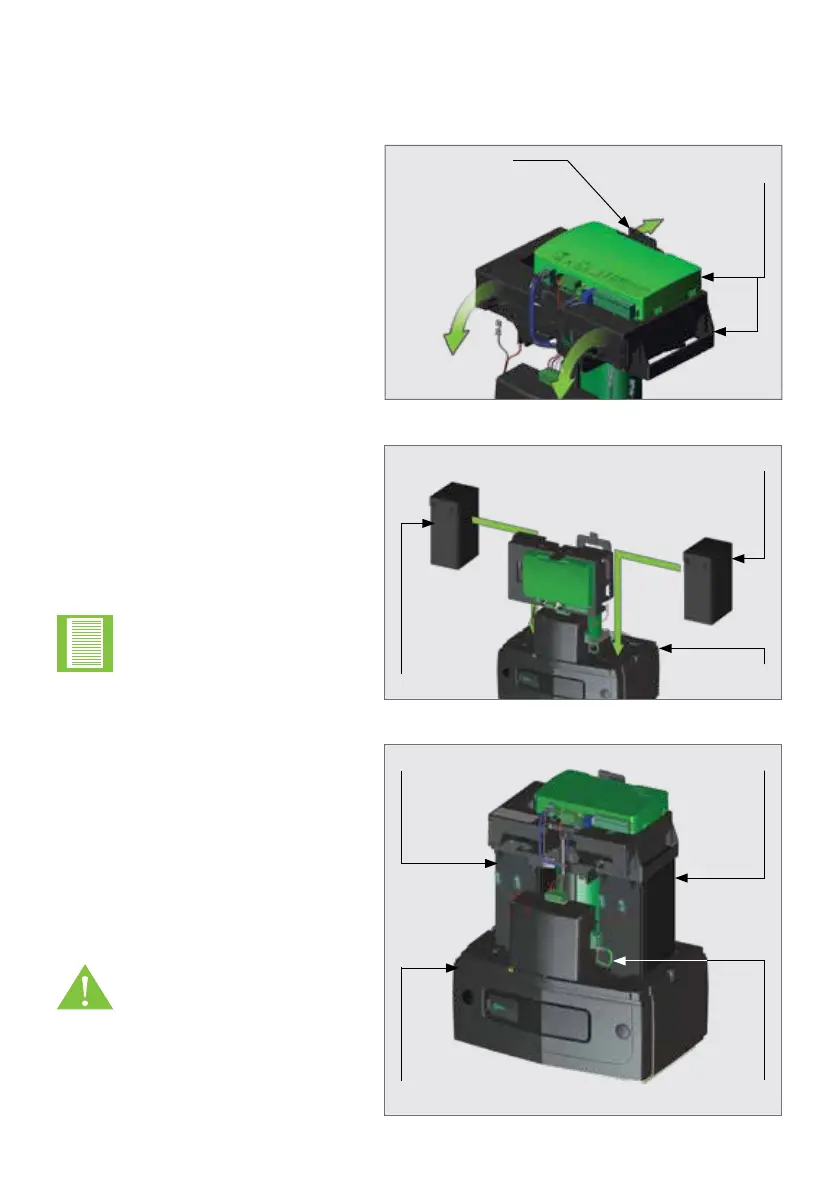

FIGURE 65
FIGURE 66
FIGURE 67
Gently push the left tab behind the
Control Card backwards. This will
allow the entire upper assembly to
hinge forward.
8.1. Fitting the Batteries
Push the left tab
backwards
Swing the upper
assembly forward
Battery
Battery
Gearbox
Trim
Gearbox
Trim
Earth
Harness
Battery
Battery
Place a Battery into the designated
area found on top of the Gearbox
Trim on the left. Route the Signal
Wires below the Left Battery, and
the Power Cables behind the motor
and under the Right Battery then
place the remaining Battery in its
designated area on the right.
Note the orientation of
the two Batteries. Ensure
that the Battery Terminals
always face the direction of
the Charger.
Swing the upper assembly back into
position over the batteries.
A click should be heard if this is done
correctly.
Failure to properly click
the control card and
upper assembly into
place will result in erratic
behaviour of the gate
motor.
