page 30 www.centsys.com

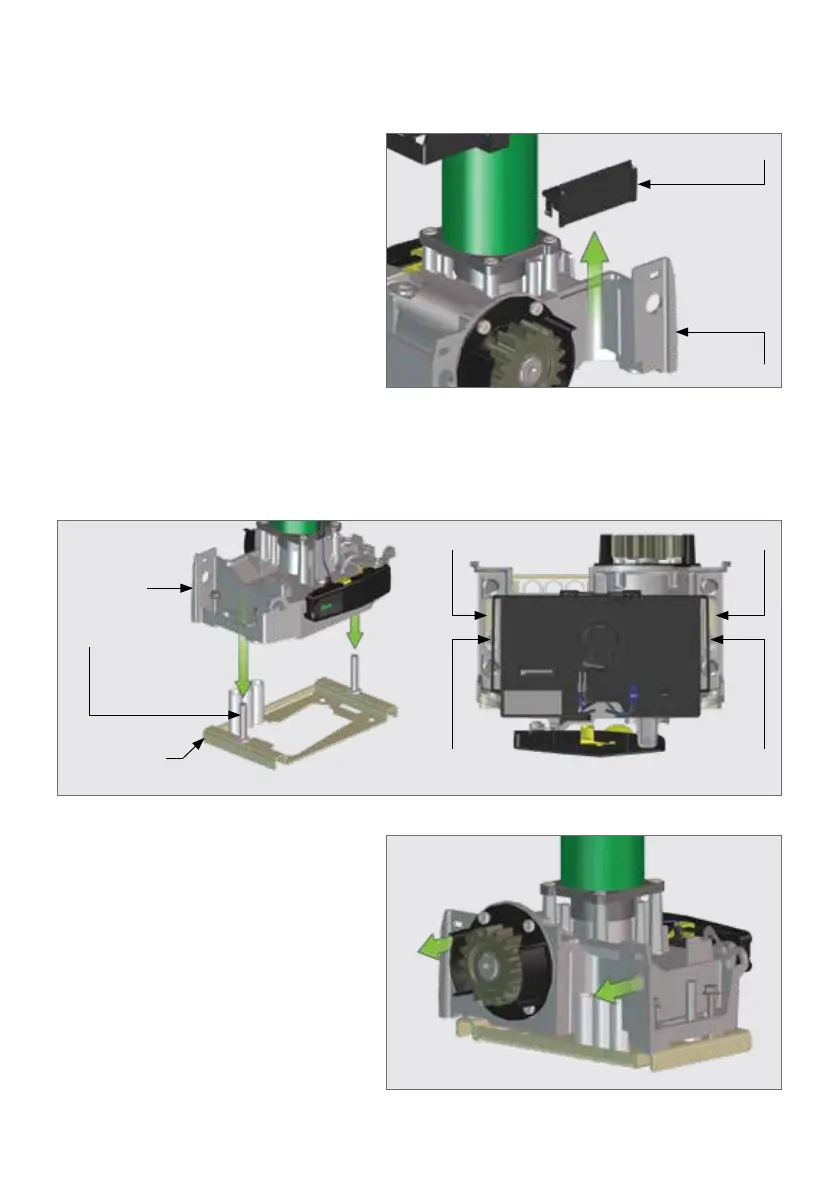

7.5. Mounting the Gearbox
OPERATOR INSTALLATIONSECTION 7
Once the Cable Shield has been removed, place the D10 SMART / D10 Turbo SMART/
D20 SMART into position over the two Mounting Bolts, aligning them with the two slots
at the bottom of the gearbox and rest the D10 SMART / D10 Turbo SMART / D20
SMART onto the Foundation Plate.
Once the Gearbox is resting on top
of the Foundation Plate, slide the
D10 SMART / D10 Turbo SMART
/ D20 SMART as far as possible
towards the gate to allow for later
adjustment.
FIGURE 33
Gearbox
FIGURE 34
FIGURE 32
Slot Slot
TOP VIEW
Mounting
Bolt
Mounting
Bolt
Foundation
Plate
Mounting
Bolt
The Cable Shield needs to be
removed before mounting the D10
SMART / D10 Turbo SMART /
D20 SMART onto its Foundation
Plate. This is done by lifting the
Cable Shield up and away from the
gearbox.
Removing the Cable Shield
Gearbox
Cable Shield
To Next Page
