page 11www.CentSys.com
ELECTRICAL SETUP SECTION 3

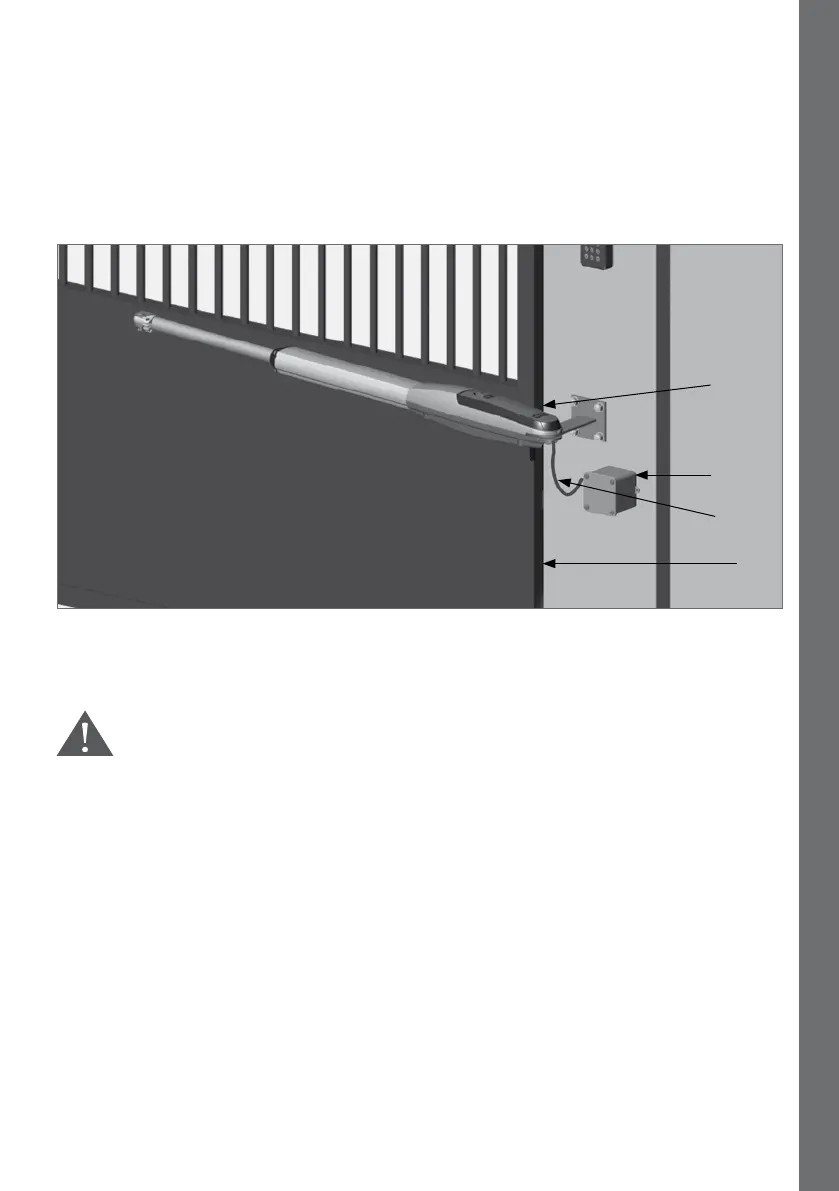

When wiring each operator back to the Controller housing, it is recommended to mount a
small junction box adjacent to each operator. Terminate the cable provided on the operator
into this junction box and then route a new cable from the junction box to the Controller
housing.
Junction
box
VANTAGE
operator
350mm
long loop
Gate
FIGURE 3
• It is essential that the cable is tied o in such a way that a loop 350mm
long is formed between where the cable exits the back of the operators,
and either the mounting bracket or Wall Box, in order to minimise
exing of the cable
• If a sharp bend is introduced to the cable, or a loop that is less than
350mm in length is used, the resulting cable fatigue, or excessive
tension on the cable, may cause the operators to behave erratically
or to stop operating altogether
