CENTURION SYSTEMS VANTAGE - Ancillary Device Connections

page 24 www.CentSys.com
SECTION 13 WIRING DIAGRAMS
13. External Radio Receiver & Loop Detector

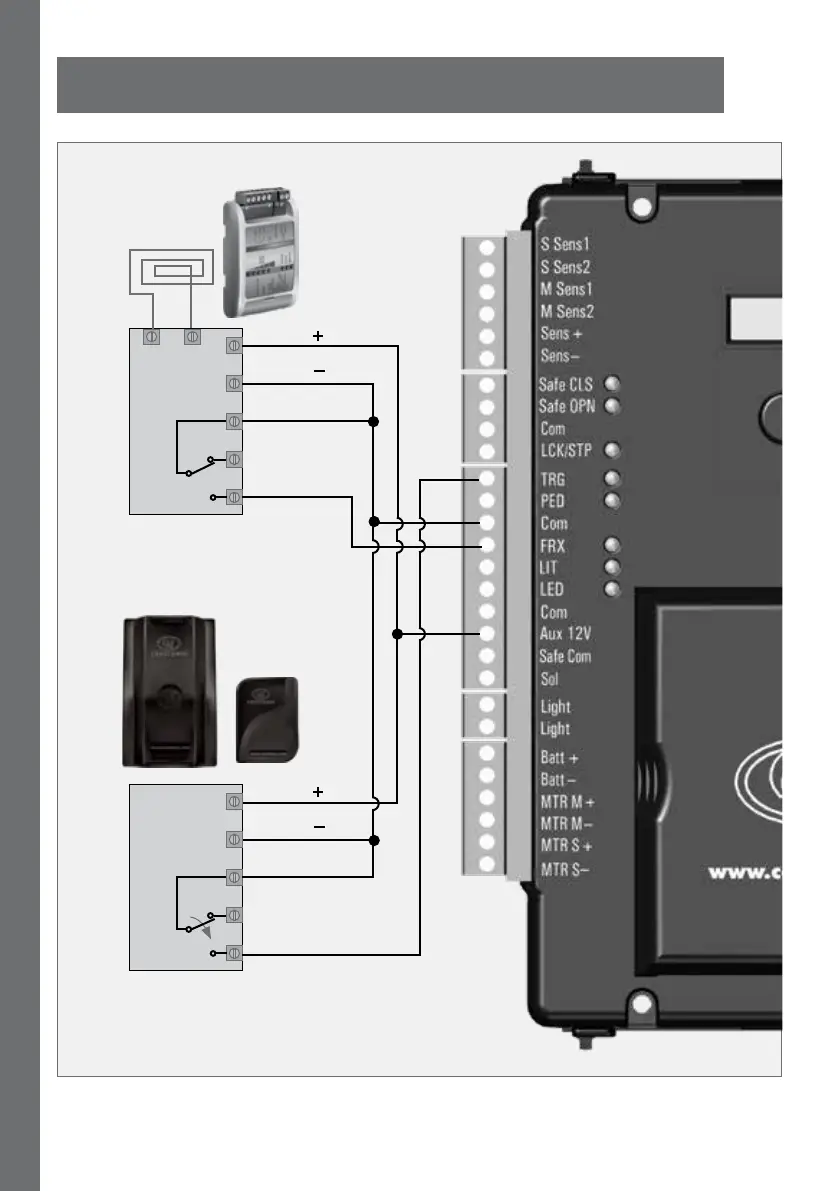

FIGURE 15. OPTIONAL RADIO RECEIVER AND LOOP DETECTOR
Loop Detector
Single and/or Multichannel
Receivers
1
Loop Detector
Loop
12V/24V
COM
N/C
N/O
12V/24V
12V/24V
COM
N/C
N/O
12V/24V
1. Only applicable if external radio receiver is being used
