WIRING DIAGRAMS SECTION 22
22. Charger & Pillar Light Connections

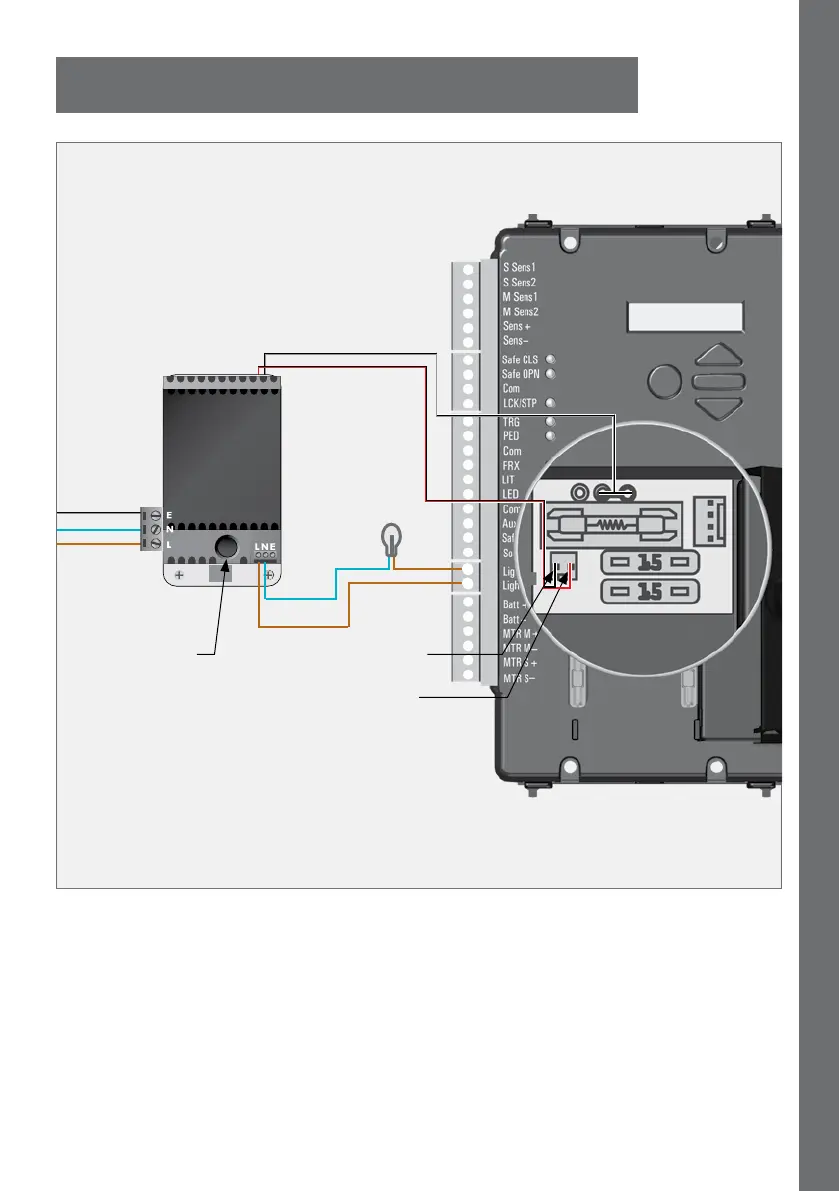

FIGURE 24. CHARGER AND PILLAR LIGHT CONNECTIONS
90V - 240V
AC Mains in
Neutral
Pillar
Light
Negative
Positive
Live
CP84
Charger
Earth
Protection fuse on
Mains input to charger
(rating: 250mA slow blow)
