page 22 www.CentSys.com
SECTION 11 WIRING DIAGRAMS
11. Double Wireless Closing Safety Beams

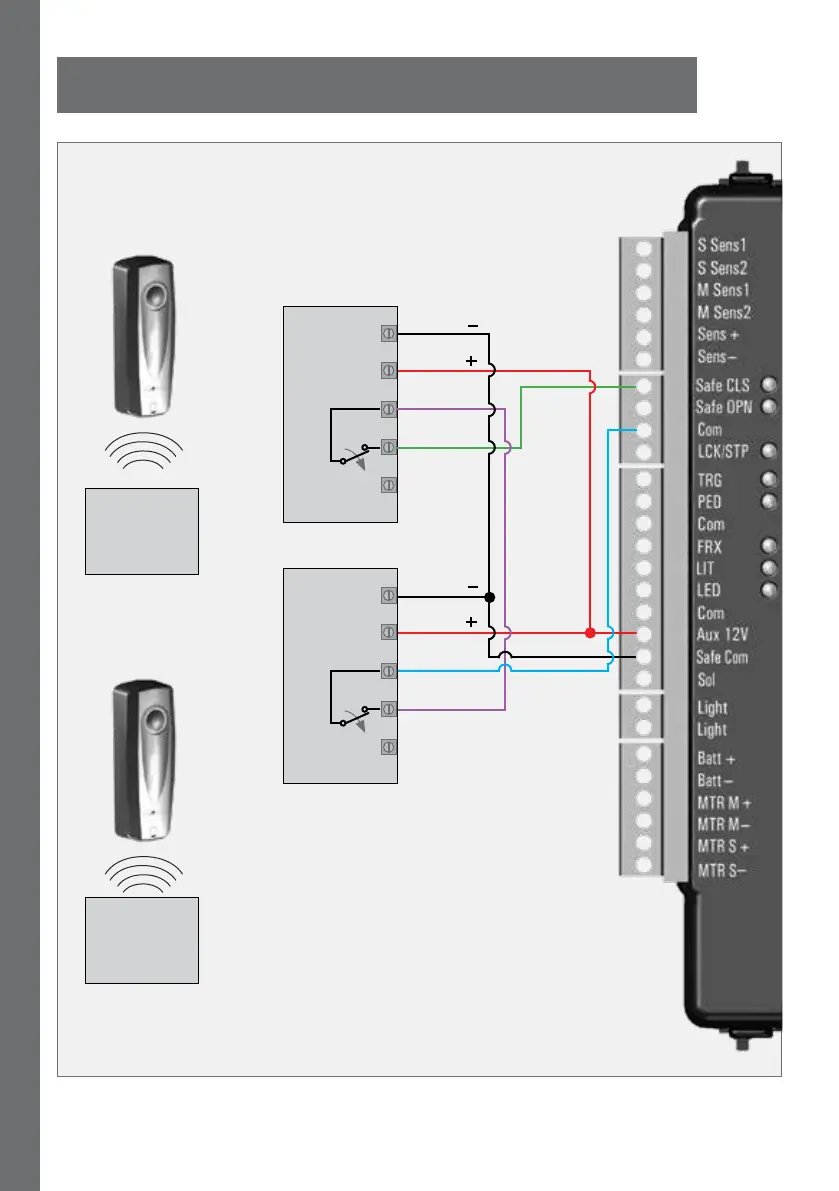

FIGURE 13. WIRELESS CLOSING SAFETY BEAMS
IRB Receiver
IRB Receiver
12V/24V
12V/24V
COM
COM
N/C
N/C
N/O
N/O
12V/24V
12V/24V
Wireless
IRB
Transmitter
Wireless
IRB
Transmitter
Photon Wireless
Safety Beams
Photon Wireless
Safety Beams
