page 16 www.CentSys.com
SECTION 5
SECTION 5

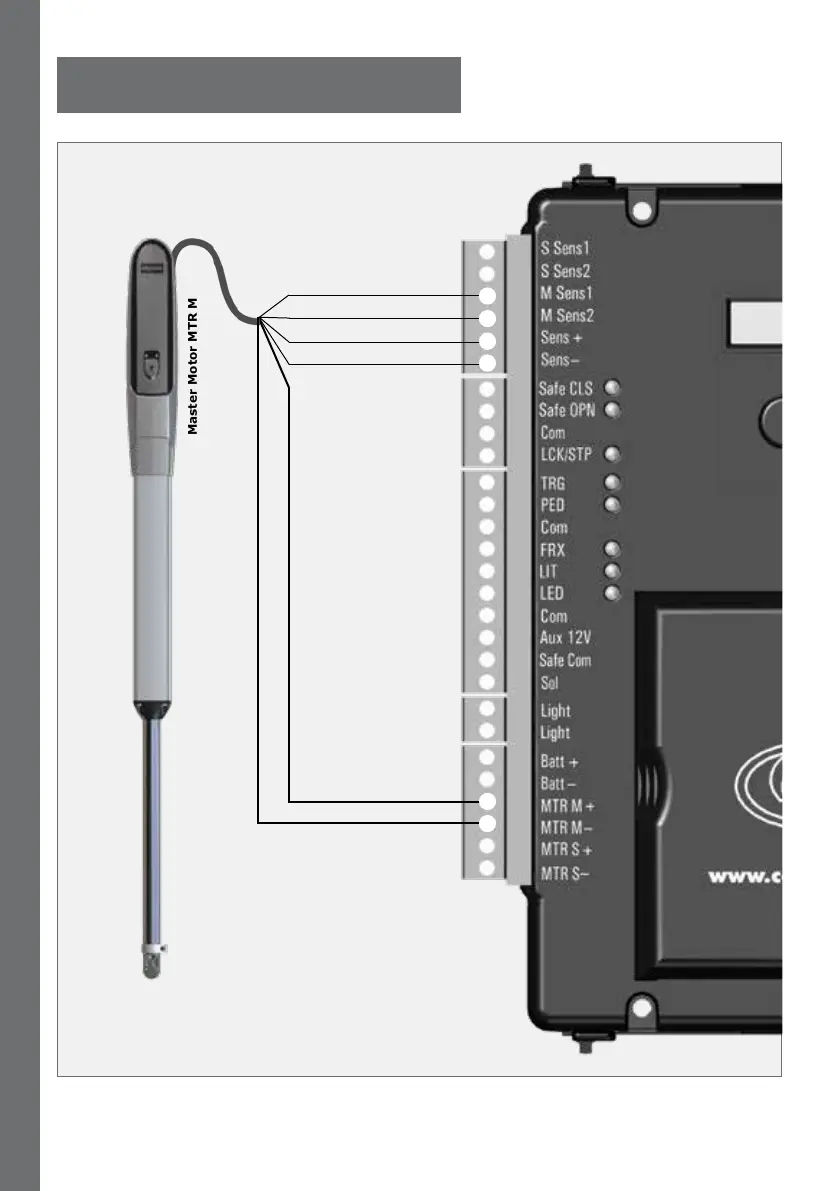

5. Master Motor (MTR M)
FIGURE 7. MASTER MOTOR (MTR M)
Thin purple
Thin blue
Thick blue
Thin red
Thin black
Thick black
Master Motor MTR M
WIRING DIAGRAMS
