Graphical User Interface

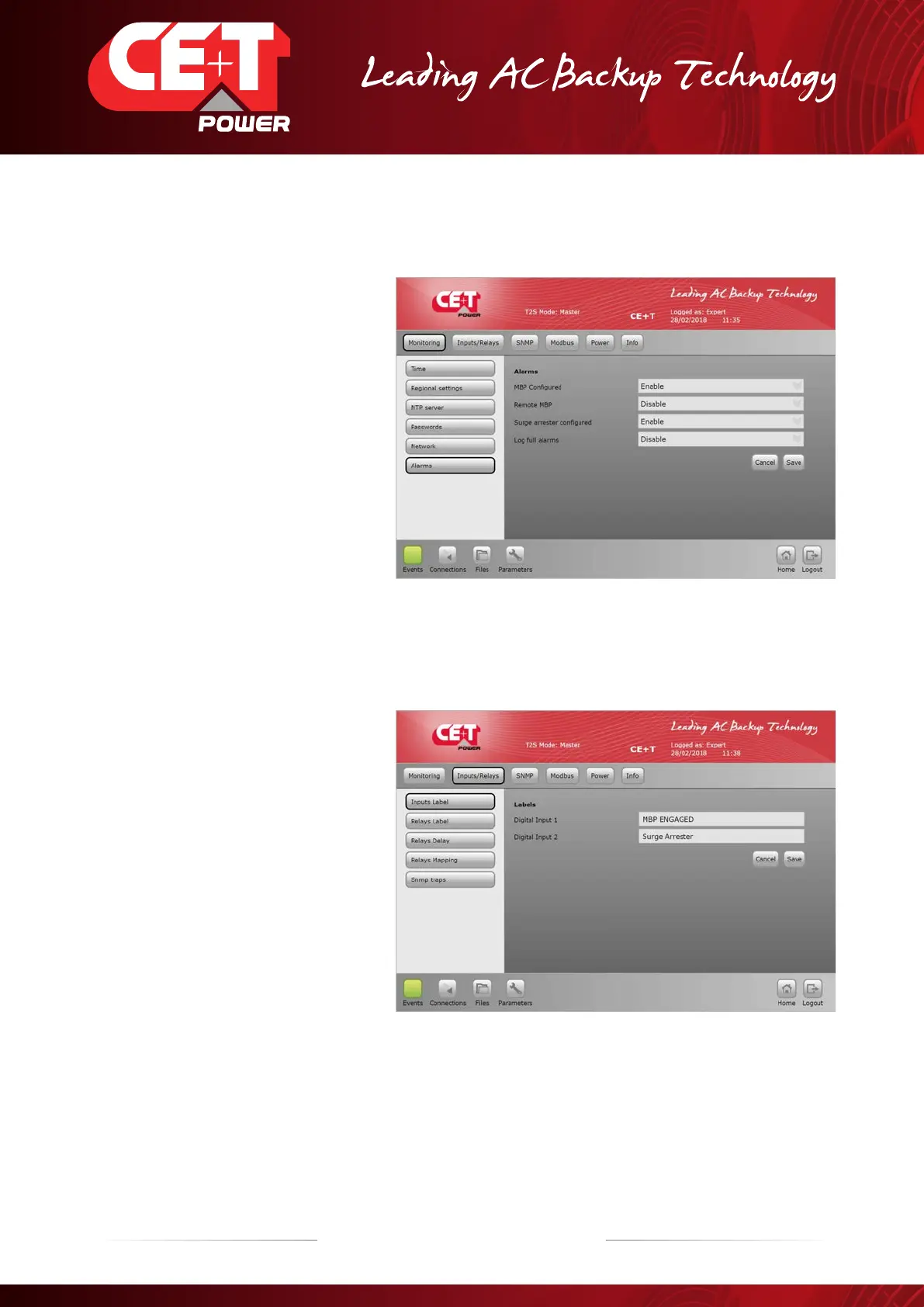

• Alarms
MBP congured: should be
configured and cabled to DigIn1
when a MBP is present. T2S ETH
use this input to tell modules that
MBP is engaged.
Remote MBP: Should be
configured when a CE+T external
MBP unit is present and it is
applicable only for the systems in
US market.
If it is enabled, the Relay 3 cannot
be used.
Surge arrester congured:
when configured and physically
connected to DigIn 2, a specific
alarm is risen in case of failure.
Log full alarms: Alarm will be generated once it reaches the maximum limit and record as FIFO.
It is recommended to download the log.
7.4.10.2 Input/Relays tab
• Inputs Label
Digital Input 1: label for
DigIn1
Digital Input 2: label for
DigIn2
To Next Page
