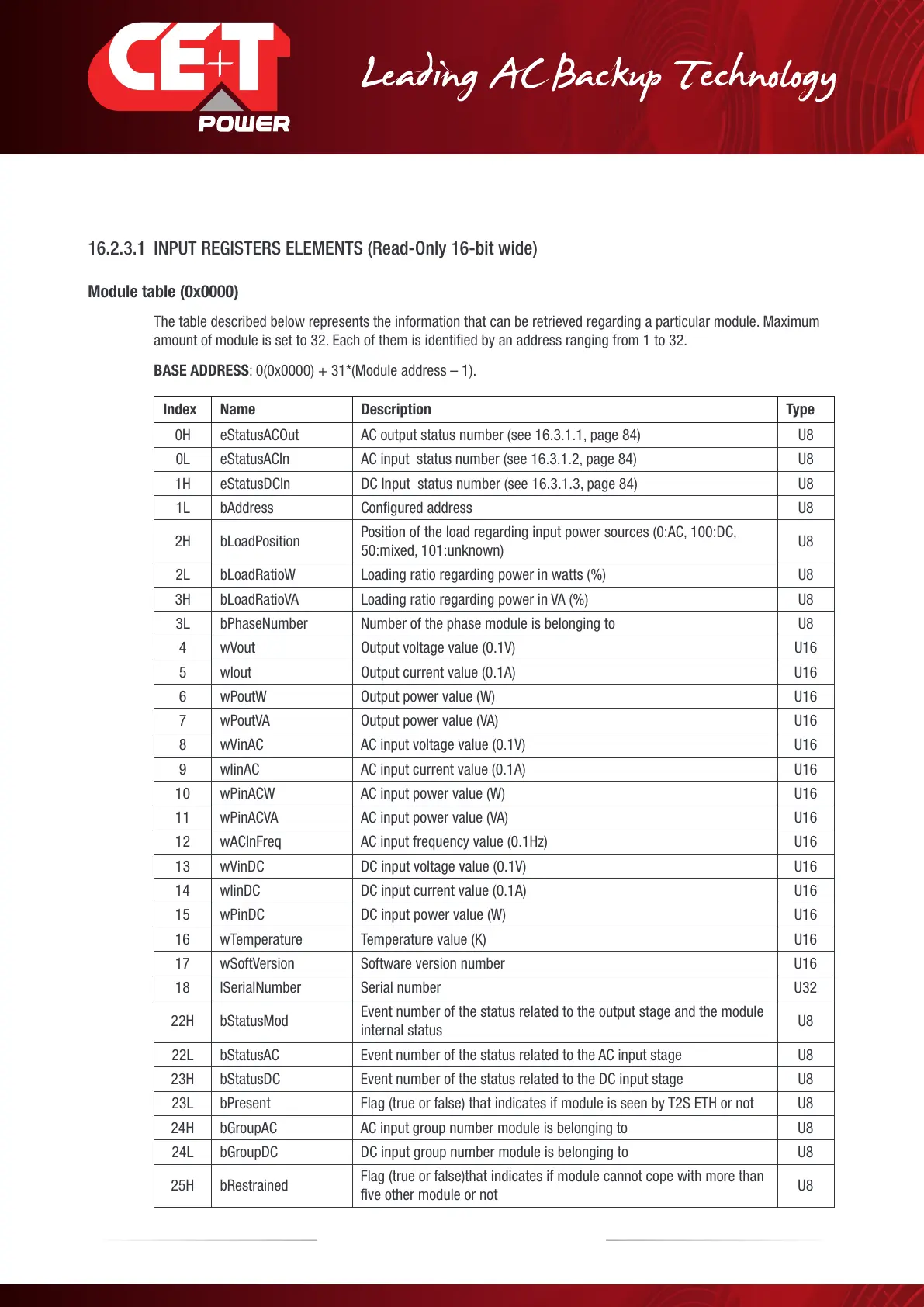

16.2.3.1 INPUT REGISTERS ELEMENTS (Read-Only 16-bit wide)
Module table (0x0000)
The table described below represents the information that can be retrieved regarding a particular module. Maximum
amount of module is set to 32. Each of them is identified by an address ranging from 1 to 32.
BASE ADDRESS: 0(0x0000) + 31*(Module address – 1).
Index Name Description Type
0H eStatusACOut AC output status number (see 16.3.1.1, page 84) U8
0L eStatusACIn AC input status number (see 16.3.1.2, page 84) U8
1H eStatusDCIn DC Input status number (see 16.3.1.3, page 84) U8
1L bAddress Configured address U8
2H bLoadPosition
Position of the load regarding input power sources (0:AC, 100:DC,
50:mixed, 101:unknown)
U8
2L bLoadRatioW Loading ratio regarding power in watts (%) U8
3H bLoadRatioVA Loading ratio regarding power in VA (%) U8
3L bPhaseNumber Number of the phase module is belonging to U8
4 wVout Output voltage value (0.1V) U16
5 wIout Output current value (0.1A) U16
6 wPoutW Output power value (W) U16
7 wPoutVA Output power value (VA) U16
8 wVinAC AC input voltage value (0.1V) U16
9 wIinAC AC input current value (0.1A) U16
10 wPinACW AC input power value (W) U16
11 wPinACVA AC input power value (VA) U16
12 wACInFreq AC input frequency value (0.1Hz) U16
13 wVinDC DC input voltage value (0.1V) U16
14 wIinDC DC input current value (0.1A) U16
15 wPinDC DC input power value (W) U16
16 wTemperature Temperature value (K) U16
17 wSoftVersion Software version number U16
18 lSerialNumber Serial number U32
22H bStatusMod
Event number of the status related to the output stage and the module
internal status
U8
22L bStatusAC Event number of the status related to the AC input stage U8
23H bStatusDC Event number of the status related to the DC input stage U8
23L bPresent Flag (true or false) that indicates if module is seen by T2S ETH or not U8
24H bGroupAC AC input group number module is belonging to U8
24L bGroupDC DC input group number module is belonging to U8
25H bRestrained
Flag (true or false)that indicates if module cannot cope with more than
five other module or not
U8
79 – Monitoring T2S - ETH User Manual – v1.4
Annex 3: Modbus
