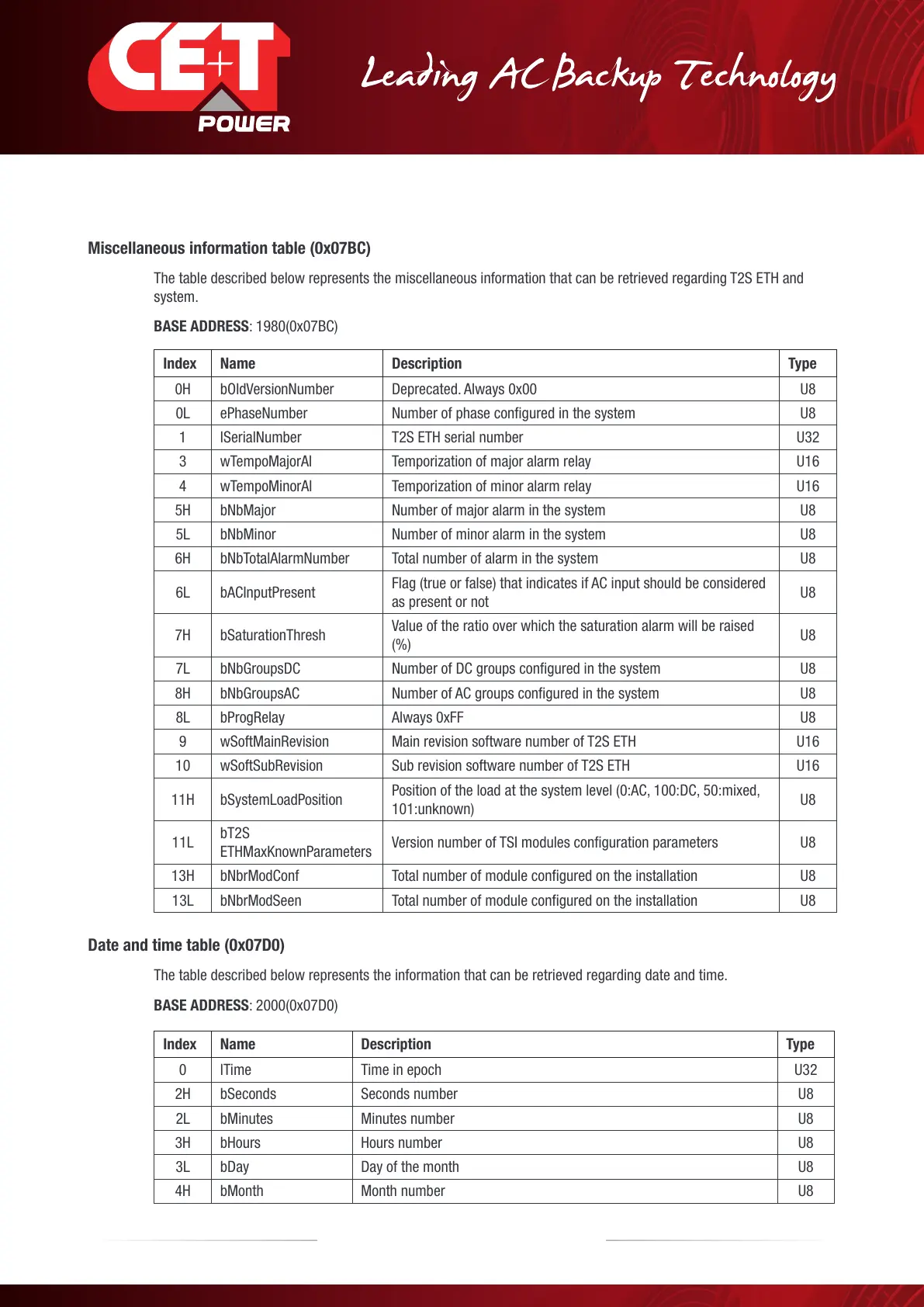

Miscellaneous information table (0x07BC)
The table described below represents the miscellaneous information that can be retrieved regarding T2S ETH and
system.
BASE ADDRESS: 1980(0x07BC)
Index Name Description Type
0H bOldVersionNumber Deprecated. Always 0x00 U8
0L ePhaseNumber Number of phase configured in the system U8
1 lSerialNumber T2S ETH serial number U32
3 wTempoMajorAl Temporization of major alarm relay U16
4 wTempoMinorAl Temporization of minor alarm relay U16
5H bNbMajor Number of major alarm in the system U8
5L bNbMinor Number of minor alarm in the system U8
6H bNbTotalAlarmNumber Total number of alarm in the system U8
6L bACInputPresent
Flag (true or false) that indicates if AC input should be considered
as present or not
U8
7H bSaturationThresh
Value of the ratio over which the saturation alarm will be raised
(%)
U8
7L bNbGroupsDC Number of DC groups configured in the system U8
8H bNbGroupsAC Number of AC groups configured in the system U8
8L bProgRelay Always 0xFF U8
9 wSoftMainRevision Main revision software number of T2S ETH U16
10 wSoftSubRevision Sub revision software number of T2S ETH U16
11H bSystemLoadPosition
Position of the load at the system level (0:AC, 100:DC, 50:mixed,
101:unknown)
U8
11L
bT2S
ETHMaxKnownParameters
Version number of TSI modules configuration parameters U8
13H bNbrModConf Total number of module configured on the installation U8
13L bNbrModSeen Total number of module configured on the installation U8
Date and time table (0x07D0)
The table described below represents the information that can be retrieved regarding date and time.
BASE ADDRESS: 2000(0x07D0)
Index Name Description Type
0 lTime Time in epoch U32
2H bSeconds Seconds number U8
2L bMinutes Minutes number U8
3H bHours Hours number U8
3L bDay Day of the month U8
4H bMonth Month number U8
82 – Monitoring T2S - ETH User Manual – v1.4
