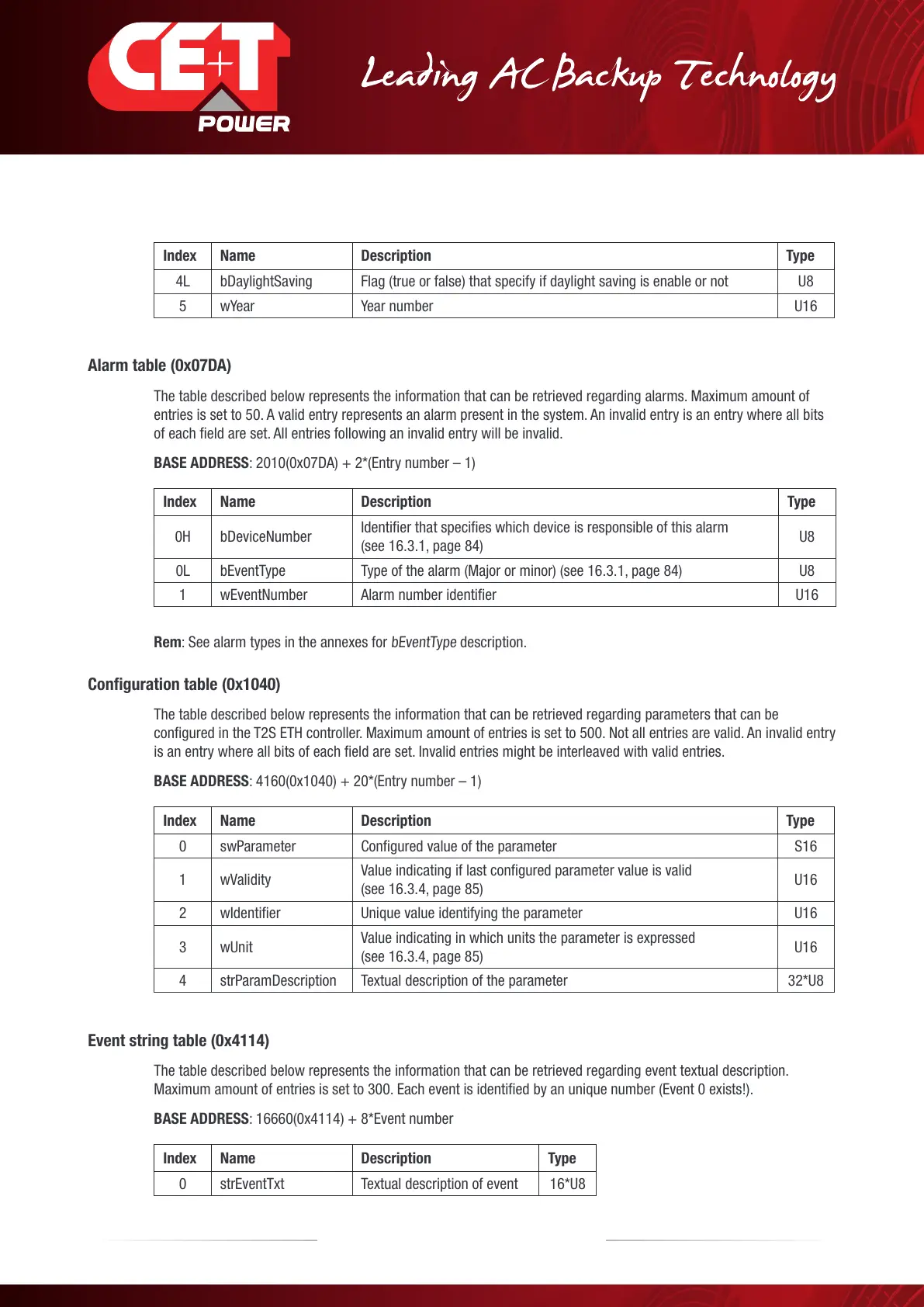

Index Name Description Type
4L bDaylightSaving Flag (true or false) that specify if daylight saving is enable or not U8
5 wYear Year number U16
Alarm table (0x07DA)
The table described below represents the information that can be retrieved regarding alarms. Maximum amount of
entries is set to 50. A valid entry represents an alarm present in the system. An invalid entry is an entry where all bits
of each field are set. All entries following an invalid entry will be invalid.
BASE ADDRESS: 2010(0x07DA) + 2*(Entry number – 1)
Index Name Description Type
0H bDeviceNumber
Identifier that specifies which device is responsible of this alarm
(see 16.3.1, page 84)
U8
0L bEventType Type of the alarm (Major or minor) (see 16.3.1, page 84) U8
1 wEventNumber Alarm number identifier U16
Rem: See alarm types in the annexes for
bEventType description.
Configuration table (0x1040)
The table described below represents the information that can be retrieved regarding parameters that can be
configured in the T2S ETH controller. Maximum amount of entries is set to 500. Not all entries are valid. An invalid entry
is an entry where all bits of each field are set. Invalid entries might be interleaved with valid entries.
BASE ADDRESS: 4160(0x1040) + 20*(Entry number – 1)
Index Name Description Type
0 swParameter Configured value of the parameter S16
1 wValidity
Value indicating if last configured parameter value is valid
(see 16.3.4, page 85)
U16
2 wIdentifier Unique value identifying the parameter U16
3 wUnit
Value indicating in which units the parameter is expressed
(see 16.3.4, page 85)
U16
4 strParamDescription Textual description of the parameter 32*U8
Event string table (0x4114)
The table described below represents the information that can be retrieved regarding event textual description.
Maximum amount of entries is set to 300. Each event is identified by an unique number (Event 0 exists!).
BASE ADDRESS: 16660(0x4114) + 8*Event number
Index Name Description Type
0 strEventTxt Textual description of event 16*U8
83 – Monitoring T2S - ETH User Manual – v1.4
Annex 3: Modbus
