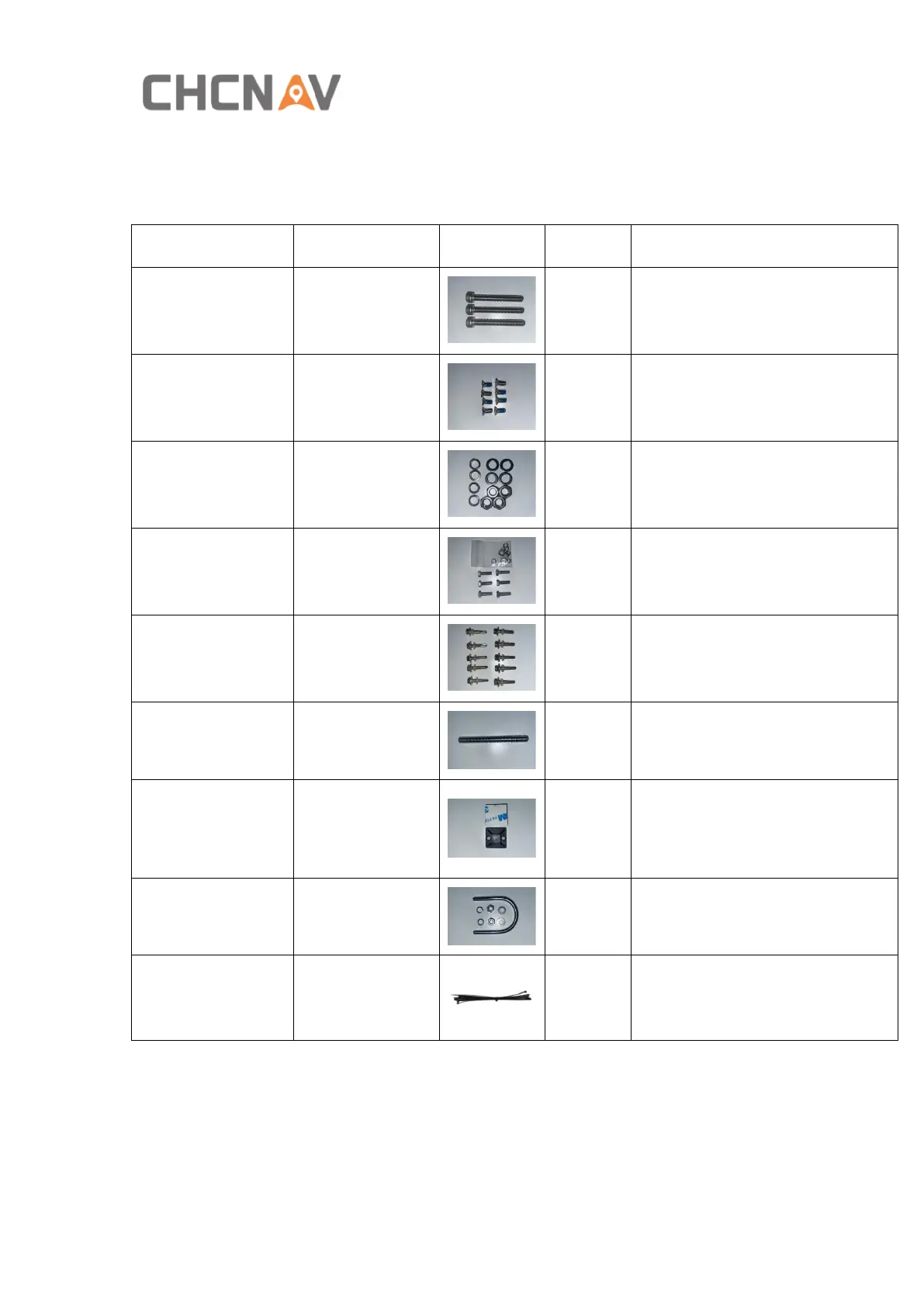

CHCNAV NX510 - Installation Tools Required

12
3.2 Installation Steps
3.2.1 List of tools
Tools
Materials
Quantity
Purpose
H6-6mm hexagon
screwdriver
M8*60 inner
hexagon screw
3
Fix T mount kit (A&B)
PH2-5mm Phillips
screwdriver
M5*11 Phillips
screw
8
Fix the sleeve to electric steering
wheel
16mm spanner
M10 nut
4
Fix the T-bracket to T mount kit
8mm spanner
M5*16 outer
hexagon screw
6
Fix the T-bracket to motor
8mm drill
ST5.5*25
dovetail screw
10
Fix the wheel angle sensor/
camera/ tablet bracket
Electric welding m
achine
T-bracket
extension stud
1
Extend the length of the
T-bracket
Cleaner
Harness fixing
base
6
Fix the cable ties
10mm spanner
U-shaped fixing
bracket
2
Fix the tablet bracket
Cable ties
50
Fix the cables
