Software configuration please refer to Chapter 4.2.7.1 Internal & External Radio
4 Software Functions

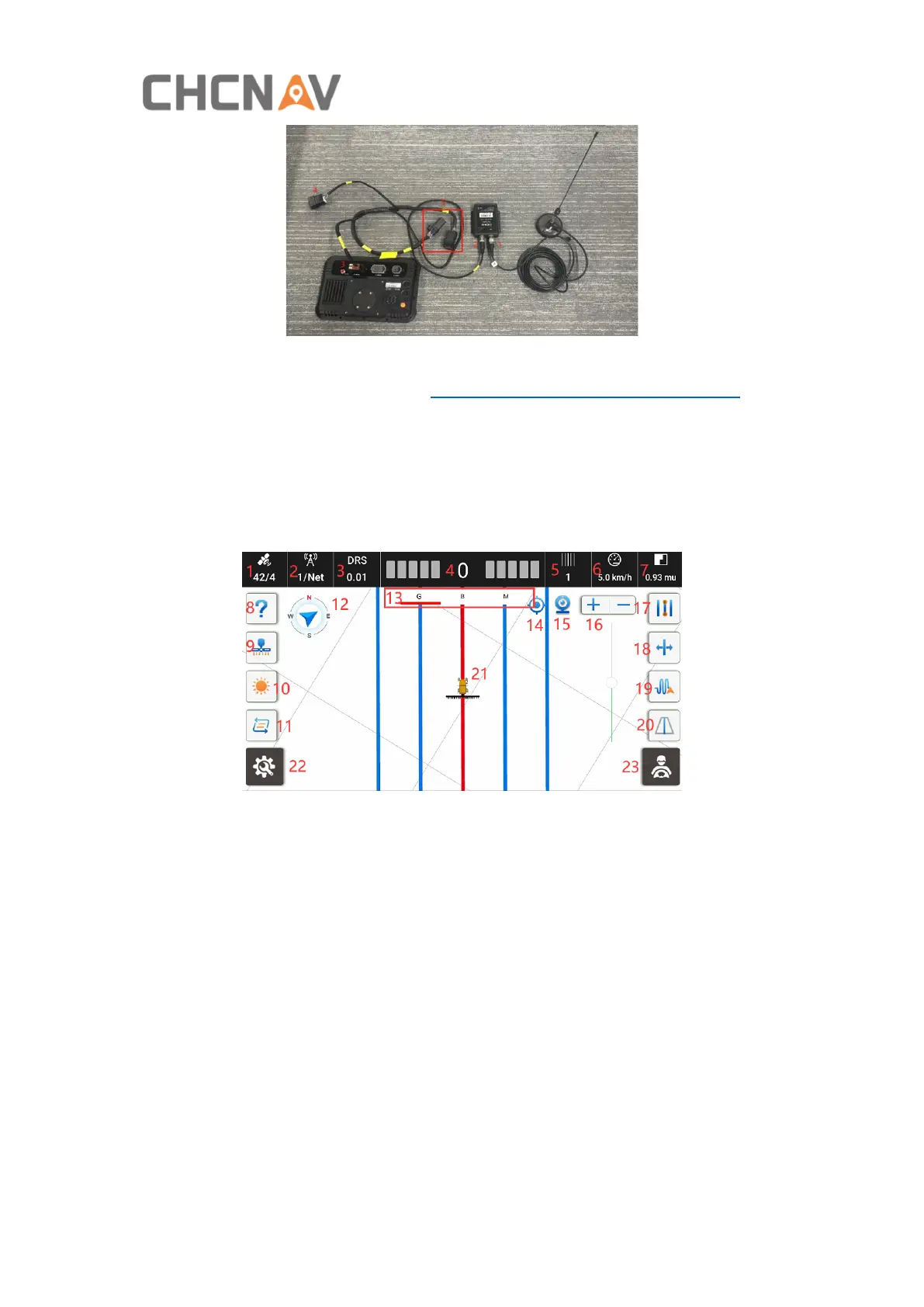

4.1 Main interface
1. Satellite status. There are two numbers displayed in the form of X / Y.
X represents the number of tracked satellites;
Y represents the RTK status:
1: Single/Autonomous 2: DGPS/SBAS 4: Fix 5: Float
2. Base station status. There are two numbers displayed in the form of X / Y.
X represents the signal latency. The smaller the X, the more stable the signal is,
usually the recommended value is less than 10 in auto steering mode for better
performance.
Y is the current radio channel number if it’s radio mode; Y will change to NET if it’s
network mode.
3. GNSS mode and position accuracy.
