CHCNAV NX510 - Page 23

23

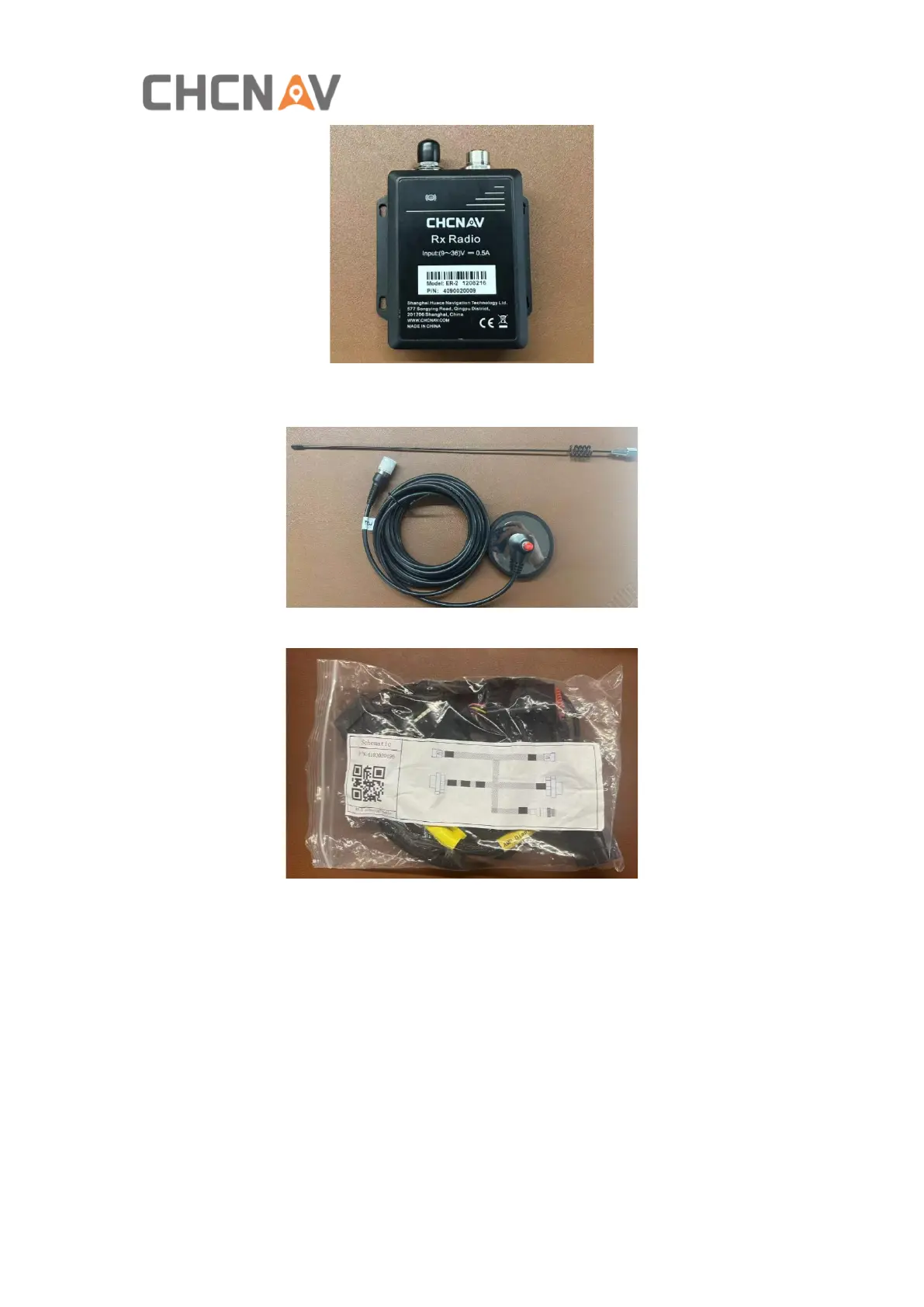

Magnetic radio antenna and cable:
Radio converter cable:
c) The wiring harness connection is as below,
1 means radio antenna port; 2 means communication port; 3 means tablet port3; 4
connects to main cable; 5 means two AMP ports for other CHCNAV devices and not
useful for NX510PRO/PLUS.
