CHCNAV NX510 - Cables Connection

20

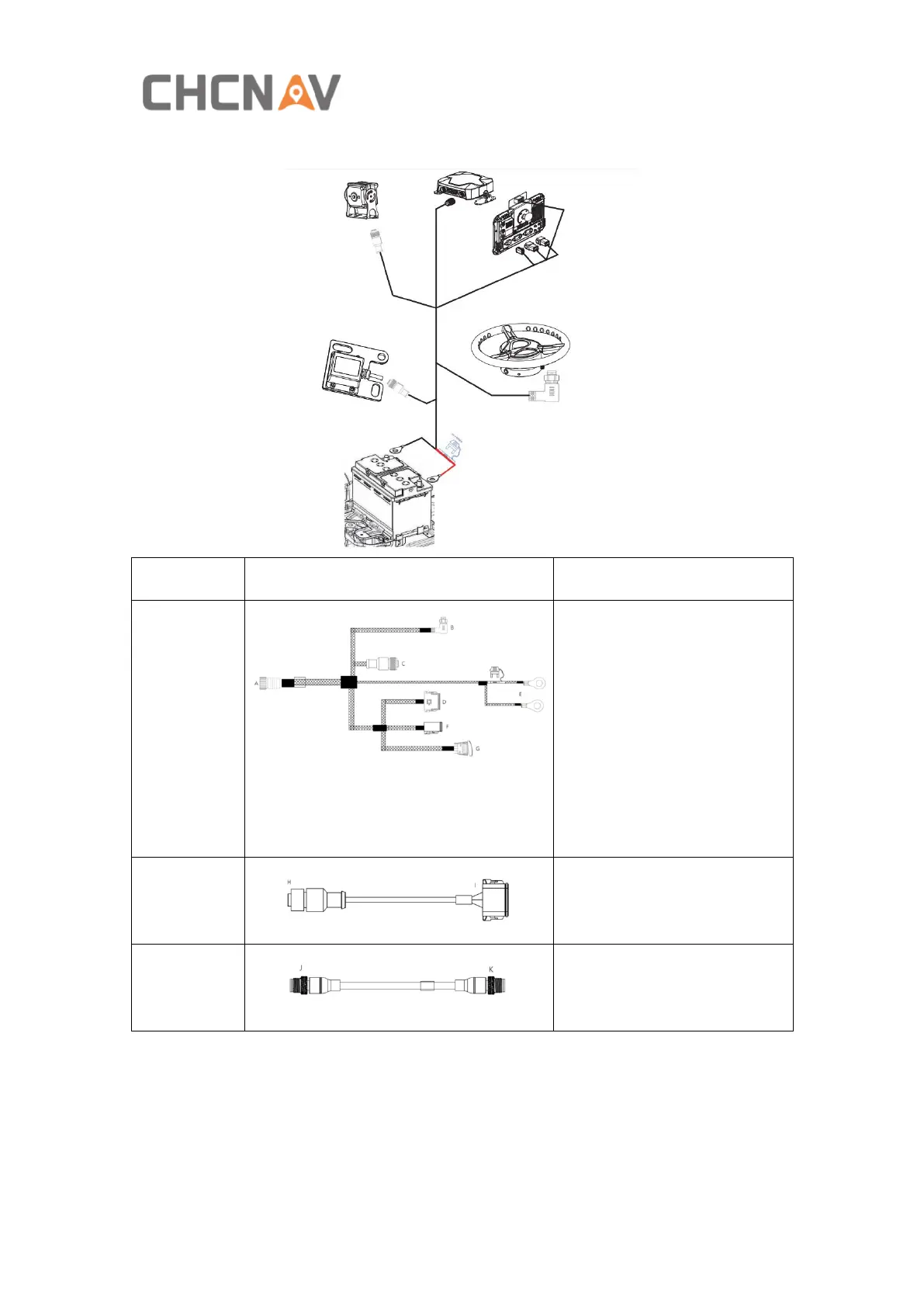

3.2.9 Cables connection
Name
Cable diagram
Connection
Integrated
main
cable
A → Receiver
B → Motor
C → Wheel angle sensor
cable
D → Tablet Port 3
E → Battery
F → Tablet Port 1
G: Rocker switch
Camera
cable
H → Camera
I → Tablet Port 2
Wheel angle
sensor cable
J → C
K → Wheel angle sensor
a) Wiring precautions
· When wiring, first confirm the location of the threading holes, and thread the
wiring harnesses outside through the threading holes in sequence;
