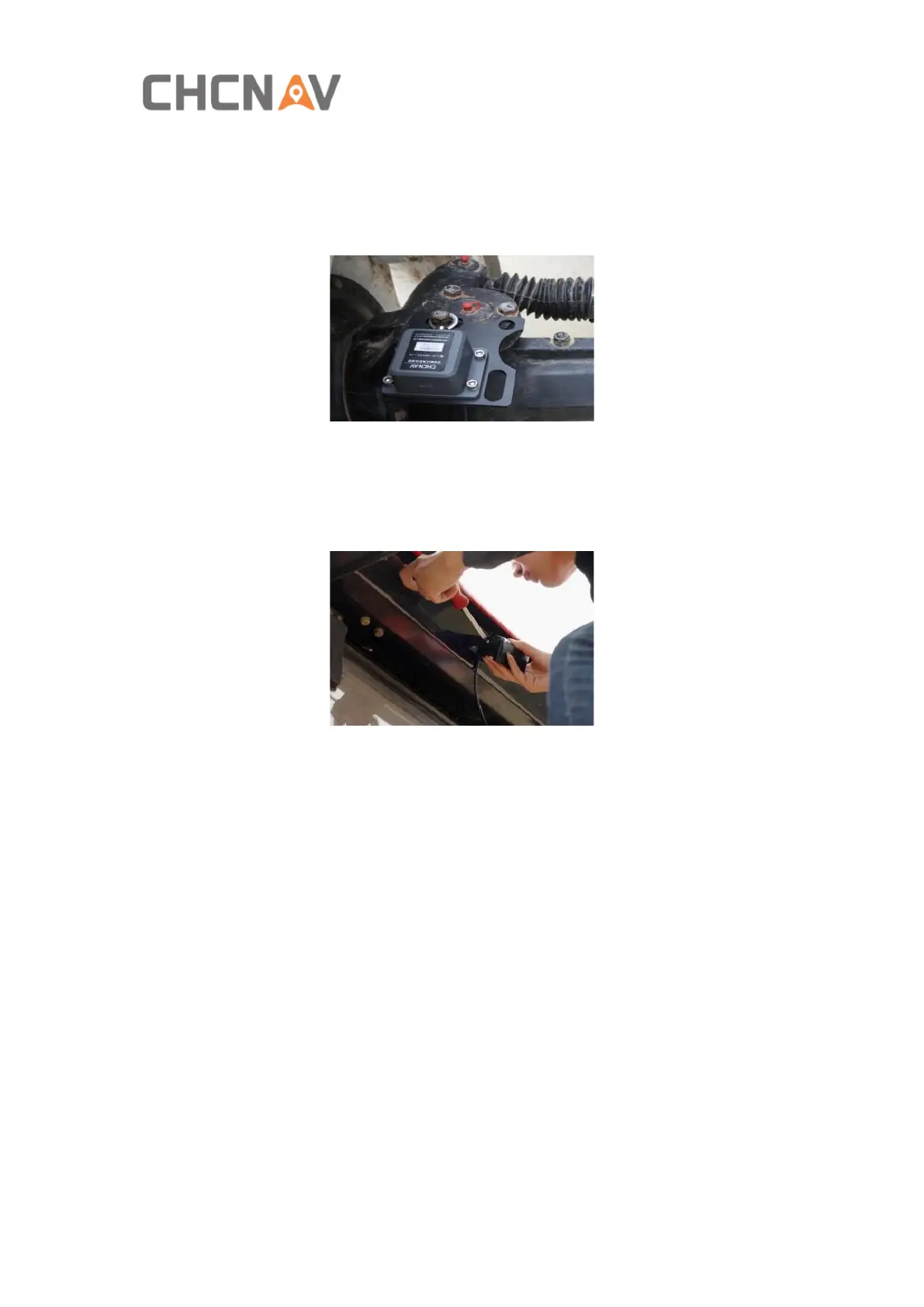

3.2.7 Wheel angle sensor installation
a) It is recommended to fix the wheel angle sensor as horizontal as possible on the
right steering wheel which avoids collision with the vehicle;
b) Pay attention to install the mount plate on the wheel platform.
3.2.8 Camera installation
The camera can be installed anywhere (within the wire harness length range).
