CHCNAV NX510 - Page 15

15

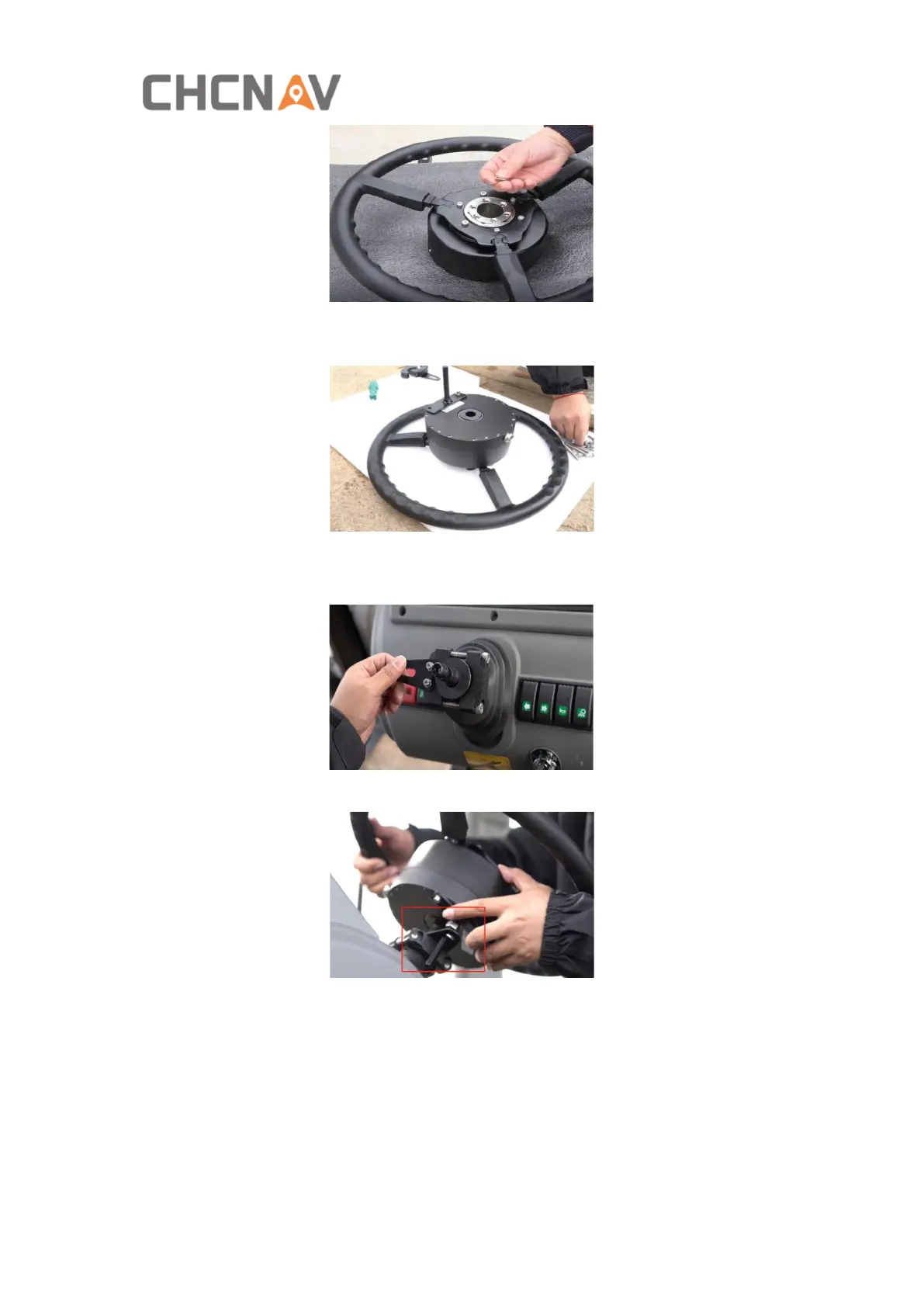

b) Install T bracket or standard bracket on the motor with M5*16 hexagon screws (2
pcs);
c) Fix the T mount kit to the shaft with M8*60 hexagon screws (2 pcs);
d) Insert T bracket through T mount kit;
e) Hold the steering wheel and tighten the spline screws with tools;
