RM238 Series
System Components Removal and Installation │ 35

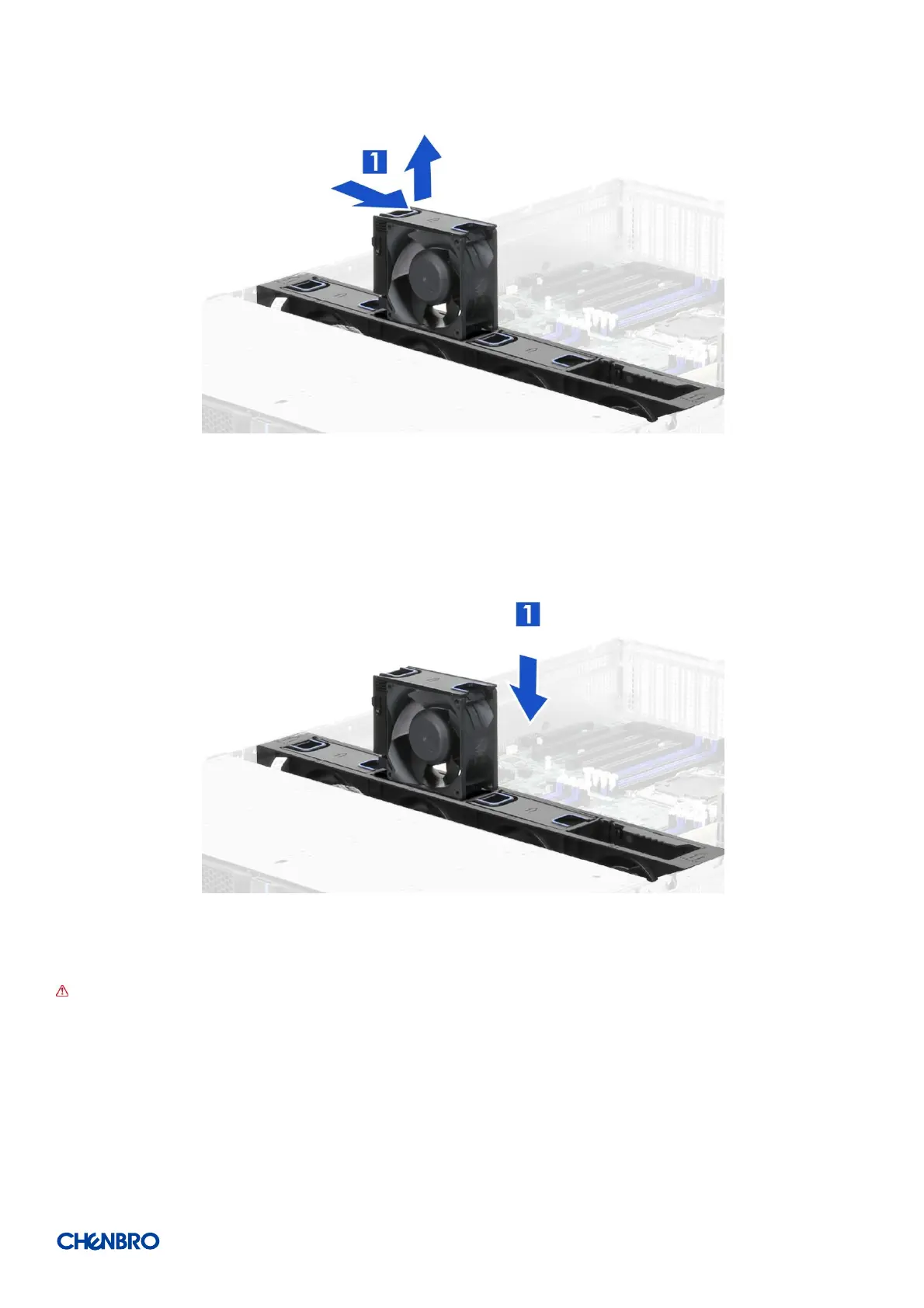

Figure 50 Fan module removal
1. Press the latch as shown and release the fan module from the fan cage vertically.
Figure 51 Fan module installation
1. Insert the fan module into the fan cage until it is secured into place.
NOTE: All the fan modules are inserted with the same direction as the fan cage indicates.
