Chenbro RM238 Series User Manual

RM238 Series
System Components Removal and Installation │ 43
2-11 Slide Rail Installation

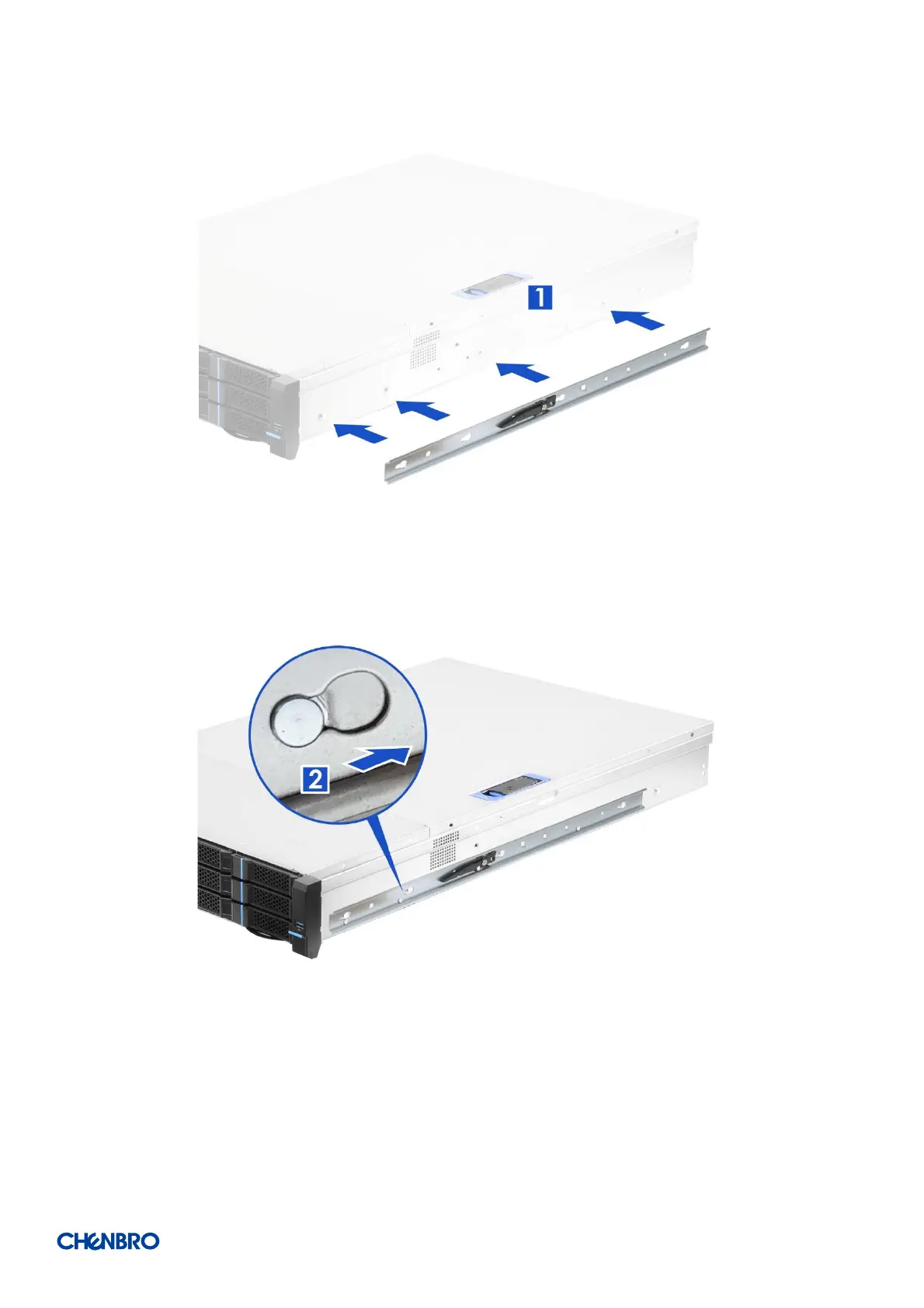

Figure 64 Slide rail installation-1 (384-23803-3300B0)
1. Attach the inner rail to the chassis base while aligning the T pins on the side of the system with the slots on the inner rail.
Figure 65 Slide rail installation-2 (384-23803-3300B0)
2. Engage the T pins with the slots on the inner as shown.
