RM2
38
Series
Sys
te
m Compone
nts R
emova
l
and
Insta
llation
ā
44
Figure
66
Slide r
ail installati
on
-3
(
384
-
23803
-
3300
B
0)

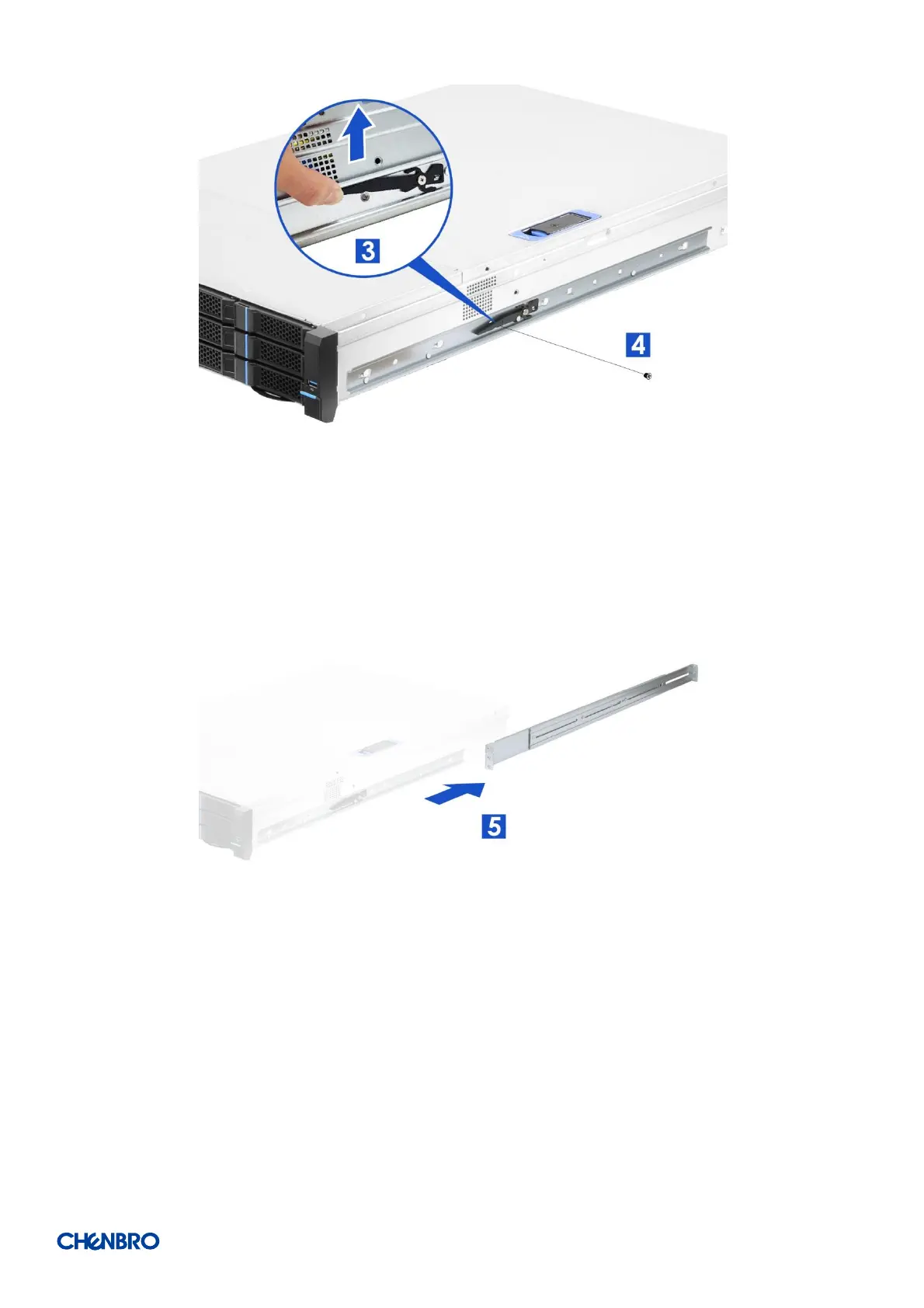

3. Lift t
he lat
ch as
show
n.
4. Se
cu
r
e the
inner ra
il
with one s
crew.
Figure
67
Slide r
ail
Ins
tallation-4
(
384
-
23803
-
3300
B
0)
5. Insta
ll the
syste
m into t
he ra
ck
.
43
45
Table of Contents
Default Chapter
3
Table of Contents
3
List of Figures
4
List of Tables
7
1 Product Overview
8
Table 1 Chenbro RM23808/12/24 Specifications
8
System Features Overview
9
Figure 1 RM23808 Overview
9
Figure 2 RM23812 Overview
9
Figure 3 RM23824 Overview
9
Figure 4 RM23808 Major Components Overview
10
Figure 5 RM23812 Major Components Overview
10
Figure 6 RM23824 Major Components Overview
10
Front Panel
11
Figure 7 RM23808 Front Panel
11
Figure 8 RM23812 Front Panel
11
Figure 9 RM23824 Front Panel
11
Back Panel
12
Figure 10 Back Panel with Single PSU
12
Figure 11 Back Panel with Redundant PSU
12
Front Control Panel
13
Figure 12 Front Control Panel
13
Table 2 Front Control Panel
13
Storage Configurations
14
Figure 13 8 X 3.5" Front Drive Bay Configuration
14
Figure 14 12 X 3.5" Front Drive Bay Configuration
14
Figure 15 24 X 2.5" Front Drive Bay Configuration (24 X SATA/SAS)
14
Figure 16 24 X 2.5" Front Drive Bay Configuration (4 X Nvme + 20 X SATA/SAS)
15
Figure 17 24 X 2.5" Front Drive Bay Configuration (8 X Nvme + 16 X SATA/SAS)
15
Figure 18 24 X 2.5" Front Drive Bay Configuration (20 X Nvme + 4 X SATA/SAS)
15
Figure 19 24 X 2.5" Front Drive Bay Configuration (24 X Nvme)
15
Chassis Dimensions
16
Figure 20 Chassis Dimensions
16
Figure 21 Label Embossing Dimensions
16
Available Rack Mounting Kit Options (Refer to "Installation")
17
Table 3 Slide Rail Options
17
System Level Environmental Specifications
18
Table 4 System Environmental Specifications Summary
18
System Packaging
19
Table 5 System Packaging Information
19
Table 6 Product Weight Information
19
2 System Components Removal and Installation
20
Top Cover Removal and Installation
21
Figure 22 Rear Top Cover Removal
21
Figure 23 Front Top Cover Removal
21
Figure 24 Front Top Cover Installation
22
Figure 25 Rear Top Cover Installation
22
HDD Cage Removal and Installation
23
Figure 26 HDD Cage Removal
23
Figure 27 HDD Cage Installation
23
Hot-Swap HDD Assembly Removal and Installation
24
Figure 28 3.5" Hot-Swap HDD Assembly Removal
24
Figure 29 3.5" Hot-Swap HDD Assembly Installation
24
Figure 30 3.5" HDD Removal (Tool-Less Type)
25
Figure 31 3.5" HDD Installation (Tool-Less Type)
25
Figure 32 3.5" HDD Removal (Screw Type)
26
Figure 33 3.5" HDD Installation (Screw Type)
26
Figure 34 2.5" Hot-Swap HDD Assembly Removal
27
Figure 35 2.5'' Hot-Swap HDD Assembly Installation
27
Figure 36 2.5'' HDD Removal (Tool-Less Type)
28
Figure 37 2.5'' HDD Installation (Tool-Less Type)
28
Figure 38 2.5" HDD Removal (Screw Type)
29
Figure 39 2.5" HDD Installation (Screw Type)
29
Figure 40 2.5'' HDD Removal in 3.5" Tray (Screw Type)
30
Figure 41 2.5'' HDD Installation in 3.5" Tray (Screw Type)
30
Internal 2.5'' HDD Removal and Installation
31
Figure 42 Internal 2.5'' HDD Removal (RM23808)
31
Figure 43 RM23808 Internal 2.5'' HDD Installation
31
Slim ODD Removal and Installation
32
Figure 44 RM23808 Slim ODD Removal
32
Figure 45 RM23808 Slim ODD Installation
32
System Maintenance
33
Figure 46 Removal of Whole System from the Rack
33
Figure 47 Installation of Whole System into the Rack
33
Fan Assembly Removal and Installation
34
Figure 48 Fan Assembly Removal
34
Figure 49 Fan Assembly Installation
34
Figure 50 Fan Module Removal
35
Figure 51 Fan Module Installation
35
Figure 52 Air Baffle Removal
36
Figure 53 Air Baffle Installation
36
2-Bay Drive Cage Installation (Back Panel)
37
Figure 54 Drive Cage Bracket Installation (Back Panel)
37
Figure 55 Drive Cage Installation (Back Panel)
37
Figure 56 Drive Backplane Installation (Back Panel)
38
Full-Height Pcie Card Installation
39
Figure 57 Full-Height Back Panel Bracket Installation
39
Figure 58 Cards and Brackets Installation
39
PSU Installation and Removal
40
Figure 59 Single 2U PSU Installation
40
Figure 60 Redundant PSU Cage Assembly
41
Figure 61 Redundant PSU Cage Installation
41
Figure 62 CRPS Module Installation
42
Figure 63 CRPS Module Removal
42
Slide Rail Installation
43
Figure 64 Slide Rail Installation-1 (384-23803-3300B0)
43
Figure 65 Slide Rail Installation-2 (384-23803-3300B0)
43
Figure 66 Slide Rail Installation-3 (384-23803-3300B0)
44
Figure 67 Slide Rail Installation-4 (384-23803-3300B0)
44
3 Backplane
45
Figure 68 Drive Tray LED Identification
45
Table 7 Drive Power Led/Activity LED Behavior
45
Storage Backplane Options
46
8-Port 12Gbps Mini-SAS HD Passive Backplane
47
Figure 69 Backplane Front View
47
Table 33 Backplane Specifications
47
Table 8 Backplane Specifications
47
Figure 70 Backplane Rear View
48
Table 9 Connector and Pin Header Function Description
48
Table 10 Fan Setting for RM23808
49
12-Port 12Gbps Mini-SAS HD Passive Backplane
50
Figure 71 Backplane Front View
50
Table 11 Backplane Specifications
50
Figure 72 Backplane Rear View
51
Table 12 Connector and Pin Header Function Description
51
Table 13 Dip Switch Setting
52
12-Port 12Gbps Mini-SAS HD Active Backplane
53
Figure 73 Backplane Front View
53
Table 14 Backplane Specifications
53
Figure 74 Backplane Rear View
54
Table 15 Connector and Pin Header Function Description
54
Table 16 Dip Switch Setting
55
Table 17 Fan Setting for RM23812
55
Figure 75 2.5'' 2-Bay Drive Module
56
Table 18 Solution and Operating Condition
56
X 2.5'' Drive Bay Accessory Kit
56
Table 19 Backplane Specifications
57
Figure 77 Backplane Rear View
58
Table 20 Connector and Pin Header Function Description
58
Figure 79 Backplane Rear View
60
Table 22 Connector and Pin Header Function Description
60
8-Port 12Gbps Mini-SAS HD Passive Backplane
61
Figure 76 Backplane Front View
61
Table 21 Backplane Specifications
61
Figure 81 Backplane Rear View
62
Table 24 Connector and Pin Header Function Description
62
Table 25 Dip Switch Setting
62
16-Port 12Gbps SAS Passive Backplane Docked with Expander Board
63
Figure 78 Backplane Front View
63
Table 23 Backplane Specifications
63
Figure 83 Backplane Rear View
64
Table 27 Connector and Pin Header Function Description
64
Figure 84 Expander Board Rear View
65
Table 28 Expander Board Specifications
65
Figure 85 Expander Board Front View
66
Table 29 Connector and Pin Header Function Description
66
Table 30 Dip Switch Setting
66
8-Port Sata/Sas/Nvme (4 X Tri-Mode) Passive Backplane
67
Figure 80 Backplane Front View
67
Figure 86 Backplane Front View
67
Table 26 Backplane Specifications
67
Figure 87 Backplane Rear View
68
Table 32 Connector and Pin Header Function Description
68
8-Port Pcie Gen3 Nvme Passive Backplane
69
Figure 82 Backplane Front View
69
Figure 88 Backplane Front View
69
Table 31 Backplane Specifications
69
Figure 89 Backplane Rear View
70
Table 34 Connector and Pin Header Function Description
70
4 Maintenance and Service
71
5
Based on 1 rating
Ask a question
Give review
