Chenbro RM238 Series - Drive Backplane Installation (Back Panel)

RM238 Series
System Components Removal and Installation │ 38

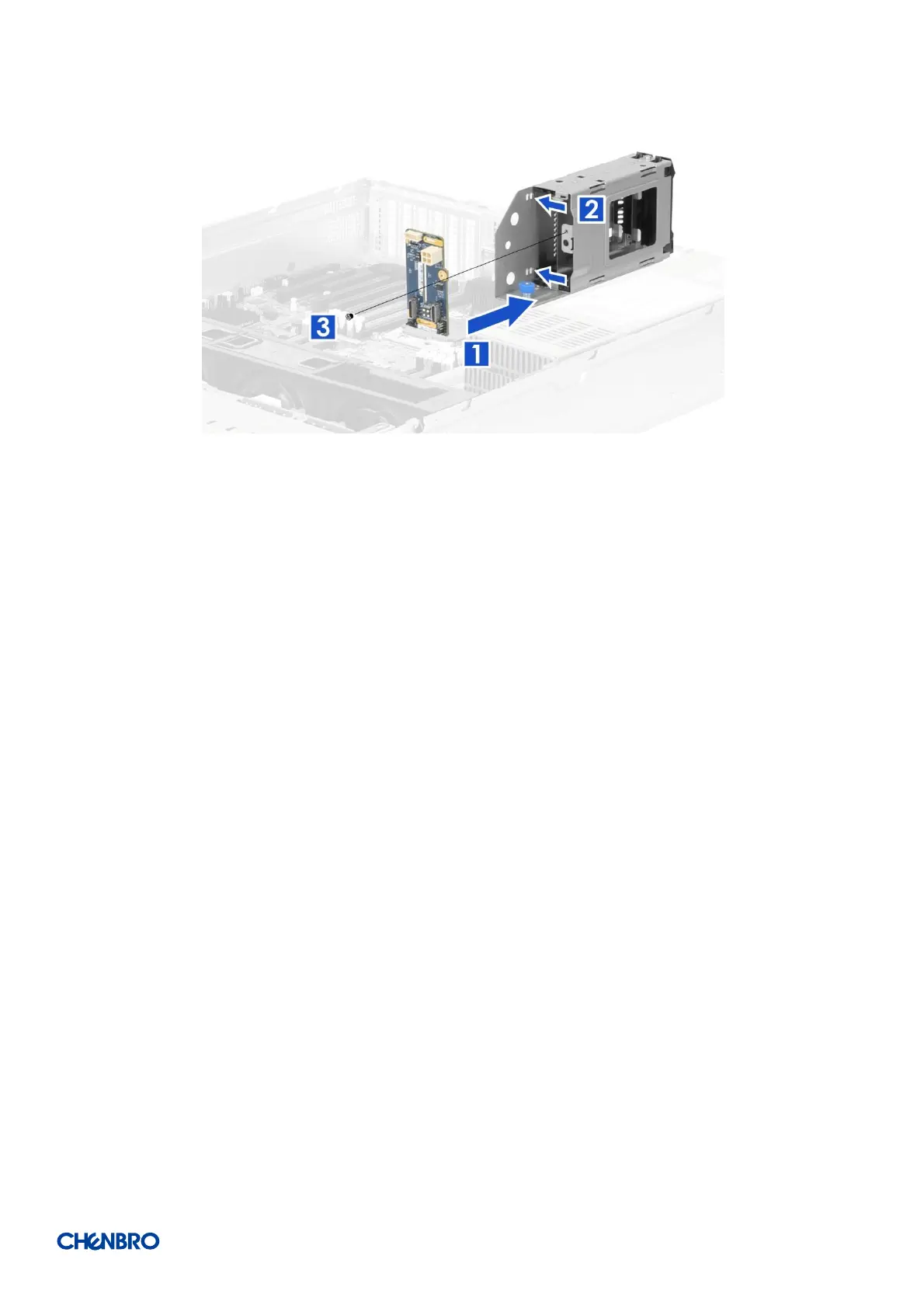

Figure 56 Drive backplane installation (back panel)
1. Attach the backplane to the rear of the drive cage as shown.
2. Ensure the backplane firmly engaged with the cage.
3. Secure the backplane with one screw.
