3-8 2.5” 8-Port SATA/SAS/NVMe (4 x Tri-mode) Passive Backplane
Table 31 Backplane specifications
Specification
Host Interface
Mini-SAS HD/OCuLink
Device Interface
SFF-8639
Hot-Swap
Yes, allows users to replace storage devices online
Display
LED indicates storage device status
Power LED – Off (Fault)
– Blue on (Present)
Activity LED – Green on(Access)
– Red on (Failure)
– Red 1Hz blink (Rebuild)
– Red 4Hz blink (Locate)
Environment Monitor
Temperature sensor TMP75 (U02)
Connector
1. 8 x SFF-8639
2. 4 x OCuLink
3. 2 x Mini-SAS HD
4. 1 x 8-pin ATX Mini-Fit Power connector for +12V only
Dimension (L x W x H)
142.0 x 80.0 x 2.4( mm)
Material
FR4 8 layers

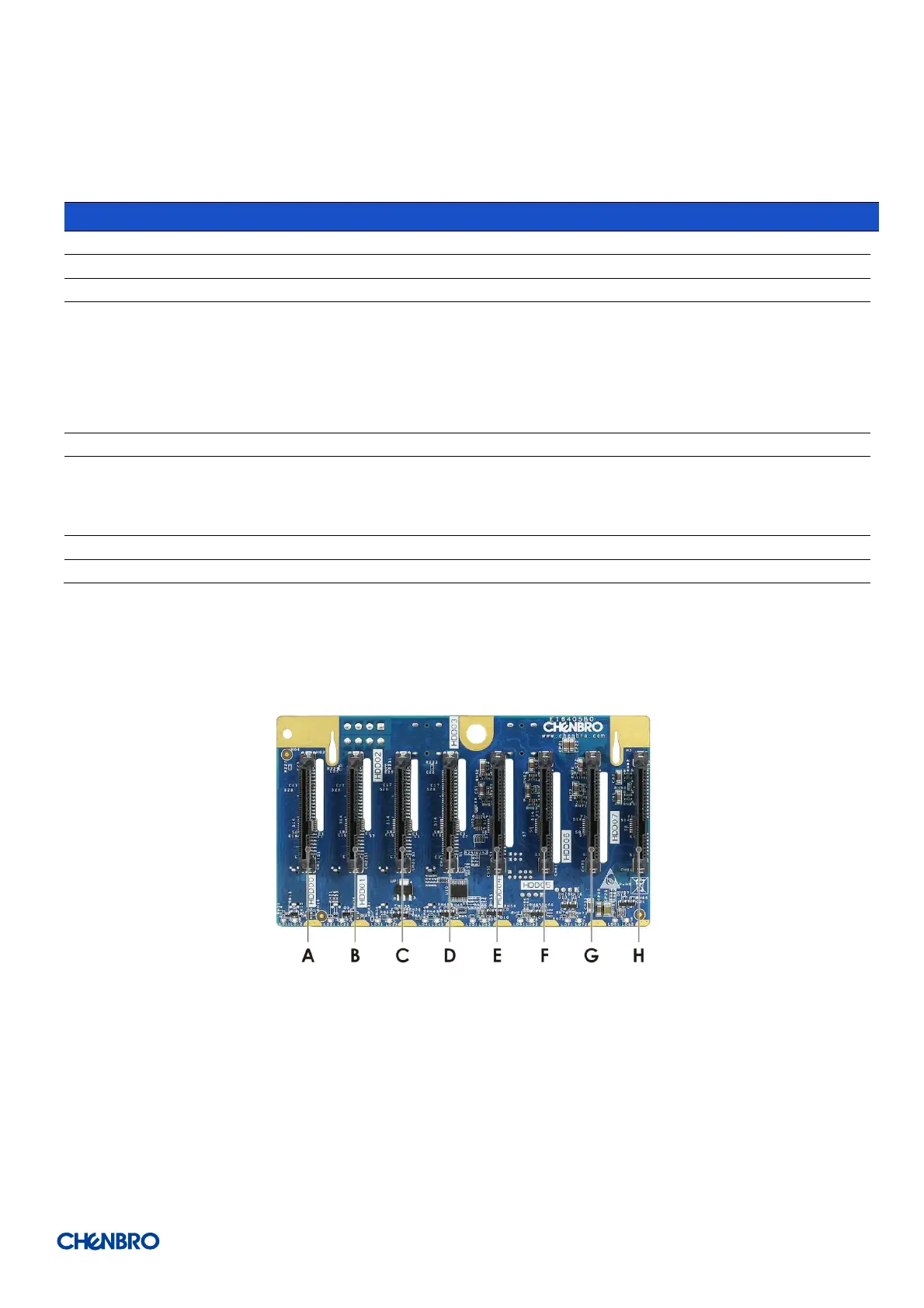

Figure 86 Backplane front view
A. HDD_0
B. HDD_1
C. HDD_2
D. HDD_3
E. HDD_4
F. HDD_5
G. HDD_6
H. HDD_7
