Chenbro RM238 Series User Manual

RM238 Series
Backplane │ 45
3. Backplane
Each drive tray includes two LED indicators for drive activity and drive status. Light pipes integrated into the drive tray direct light
emitted from LEDs mounted next to each drive connector on the backplane to the drive tray faceplate, making them visible from the
front of the system.

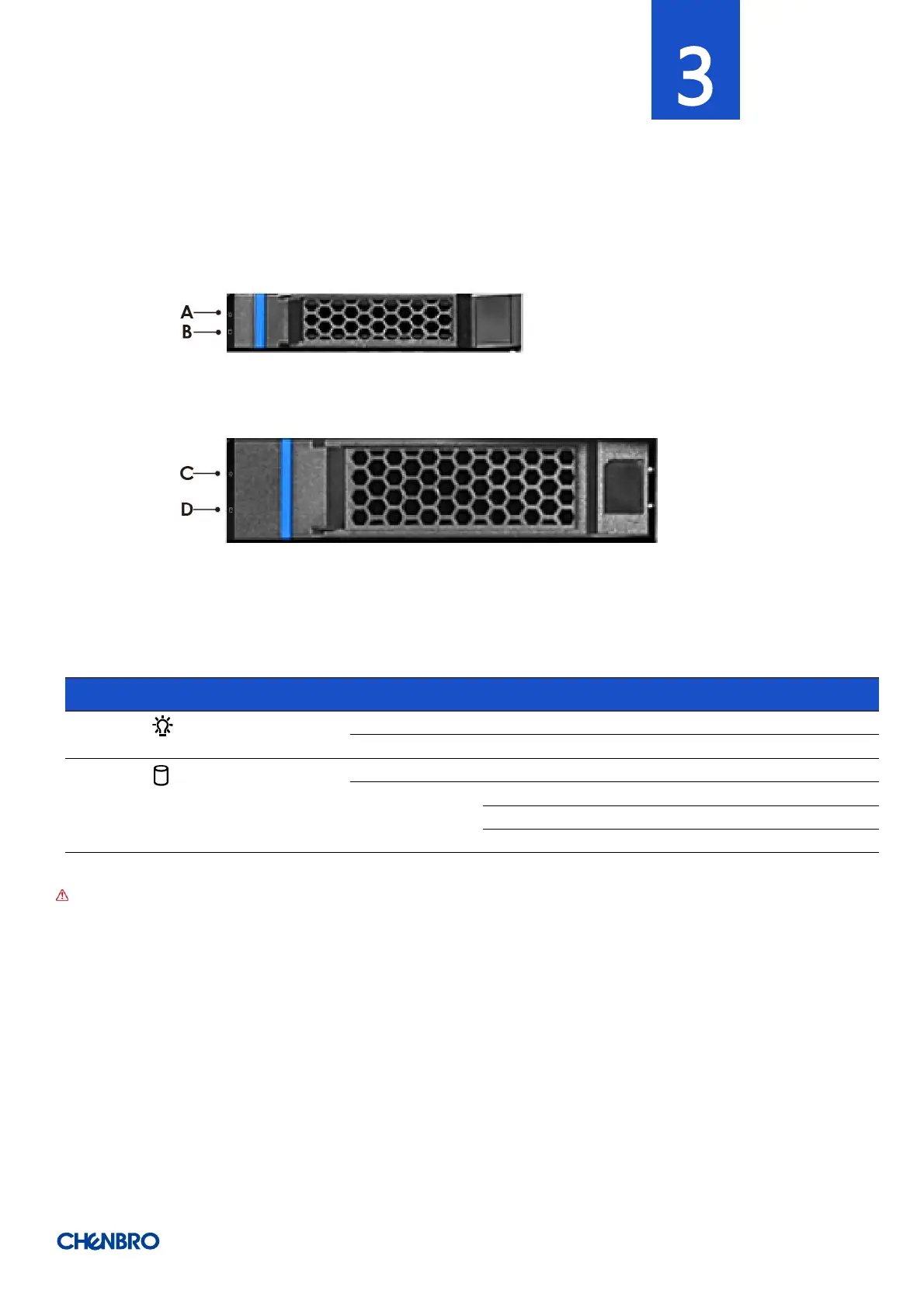

Figure 68 Drive tray LED identification
Table 7 Drive power LED/activity LED behavior
LED
ICON
LED
Color
Behavior
Condition
A,C
Power LED
N/A
Stay off
Fault
Blue
Solid on
Present
B,D
Activity LED
Green
Stay on
Access
Red
Solid on
Failure
1Hz blink
Rebuild
4Hz blink
Locate
NOTE: The drive activity LED is driven by signals from the drive itself. Drive vendors may choose to operate the activity LED
different from what is described in the table above. Should the activity LED on a given drive type behave differently than what
is described, customers should take the drive vendor specifications as a reference for the specific drive model to determine
what the expected drive activity LED operation should be.
