Chenbro RM238 Series - Figure 87 Backplane Rear View; Table 32 Connector and Pin Header Function Description

│ 68

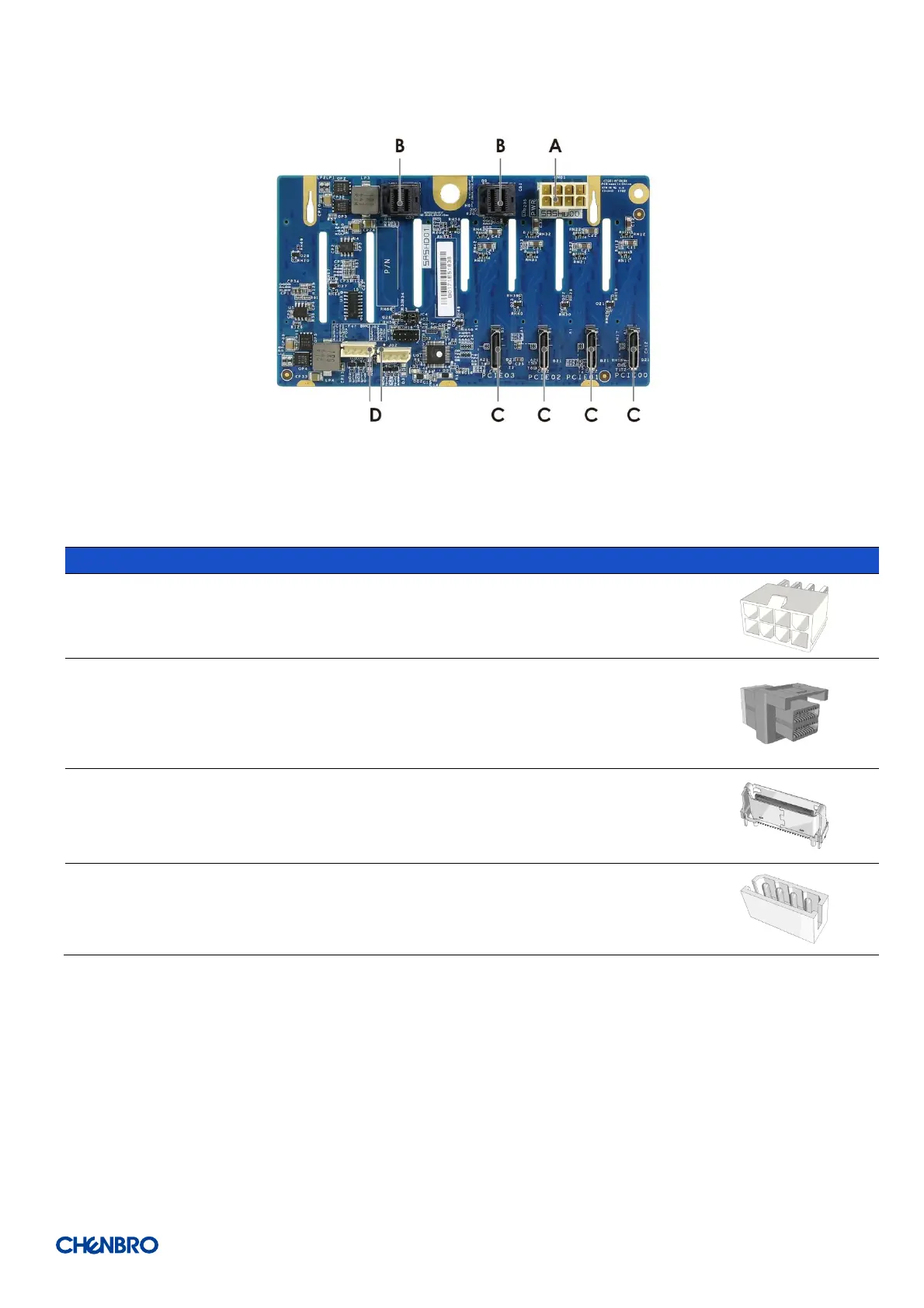

Figure 87 Backplane rear view
Table 32 Connector and pin header function description
Label
Connector
Description
Drawing
A
Power
The backplane includes one 2 x 4 connector
supplying 12V power to the backplane. Power is
routed to the backplane via a power cable harness
from the power supply.
B
Mini-SAS HD
The backplane includes two multi-port Mini-SAS HD
connectors providing data signals for eight
SATA/SAS drives on the backplane. A cable can be
routed from matching connectors on the server
board or add-in SATA/SAS HBA cards.
C
OCuLink
The backplane includes four OCuLink connectors
providing data signals for four NVMe drives on the
backplane. A cable can be routed from matching
connectors on the server board or add-in switch
cards.
D
I2C
The backplane includes two 4-pin connectors. One is
used for LED signal transmission and the other is for
thermal sensor monitoring to MB.
